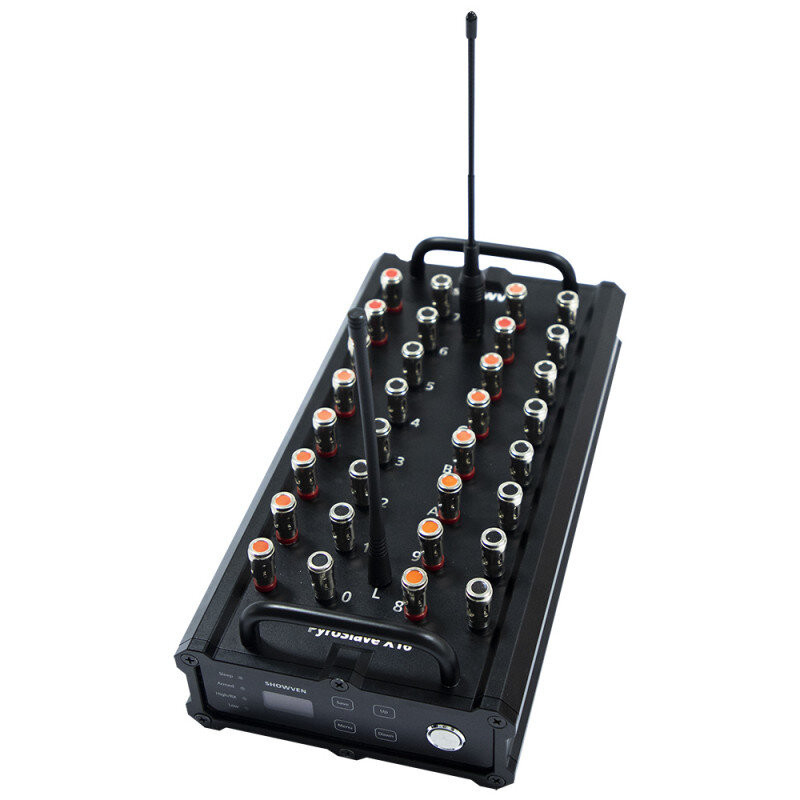

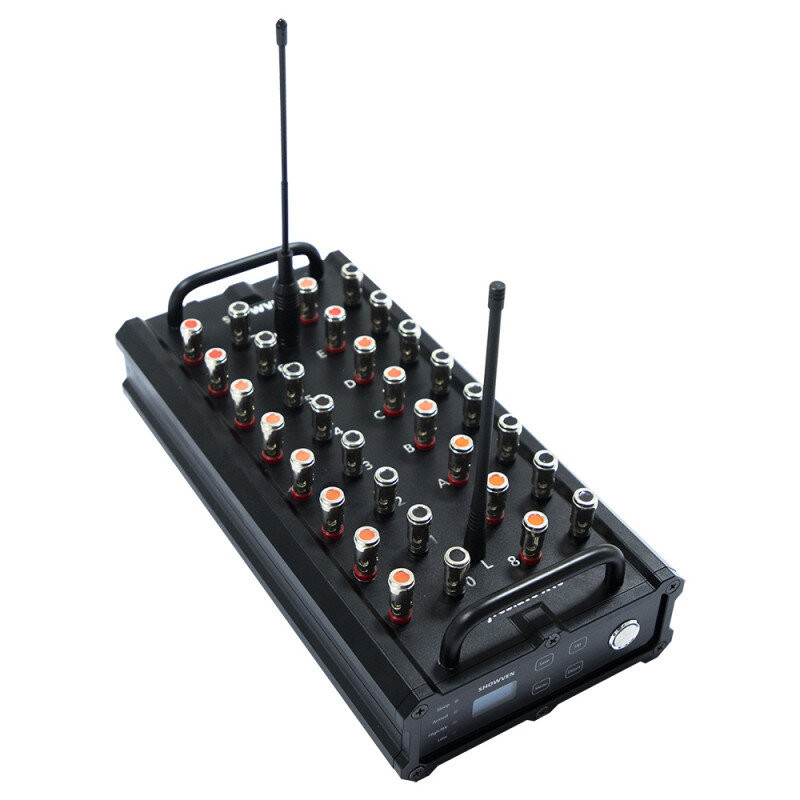

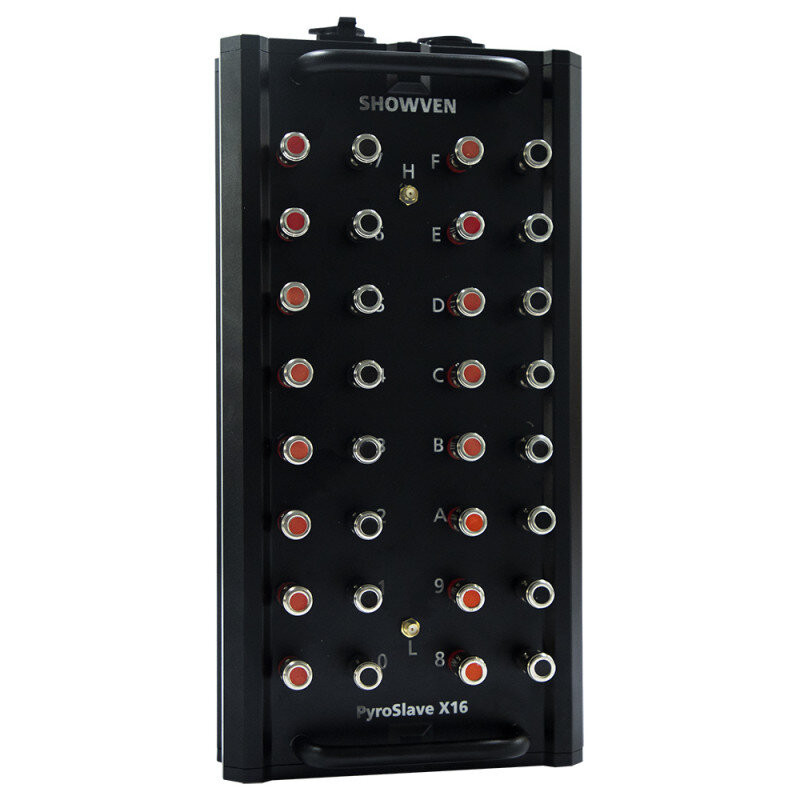

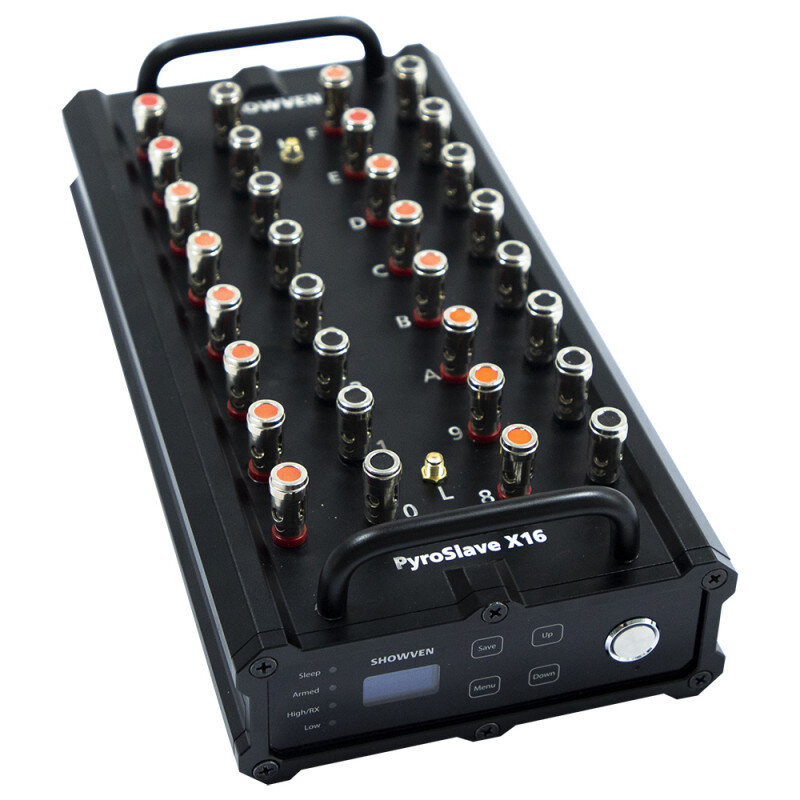

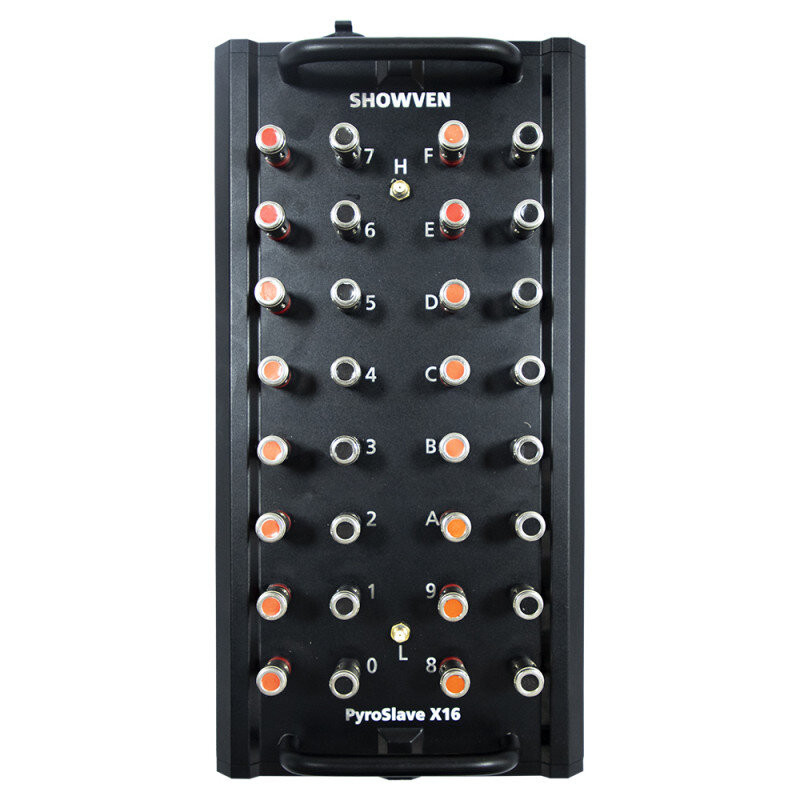

Sparkular PyroSlave

Sistema di accensione a 16 canali appositamente progettato per tecnici e professionisti degli effetti speciali per adattarsi ad applicazioni esterne estreme.

Dotato di un robusto alloggiamento in alluminio, tasti touch, terminali di connessione in metallo, questo apparecchio può essere utilizzato sia cablato che wireless. La modalità wireless con antenne dual band comunica simultaneamente, prevenendo l'interferenza del segnale su una singola banda di frequenza. La tecnologia PBUS a 2 fili utilizzata nella comunicazione cablata con la macchina effetti può realizzare l'alimentazione durante la comunicazione.

Technical characteristics

• Robust aluminum housing and metal connection terminals, waterproof and dustproof as well as prevent the impact of sparks drop from fireworks
• Can be operated both wired and wirelessly
• Wired mode with 2-wire PBUS technology can realize power supply while communicating, ensure continuous working
• Wireless mode with dual band antennas communicate simultaneously, preventing signal interference on a single frequency band
• Wireless mode with 4 wireless channel, 65536 ID, ensure the safety firing. Only when FXcommander and Slave with exactly the same wireless channel and ID before they can communicate
• Firing precision: 100 firings/s
• Bridge function to avoid signal obstacles behind big stage
• 2 x M10 hole convenient for truss installation
• Output: 16
• Trigger indicate LCD display and record
• Address 256 (00 to FF)
• Control dual-band wireless, 2-wire PBUS (communication + charging)
• Wireless range: 600 m
• Wired range: 2000 m
• Voltage: 24 V
• Current: 5 A
• Activation period: 500 ms
• Resistance test: yes
• Battery: 4 x 18650 cell, 4.2 V, 2500 mAh per piece
• Operation time: 60 h, sleep mode 2 weeks, wired communication non-stop
• Charging control: a PyroAdaptor support 20 PyroSlave X16 units
• Charging time: appr. 6 h
• Waterproof level: IP65
• Minimum firing interval: 10 m
• Dimension: 335 x 165 x 85 mm
• Net weight: 3 kg
