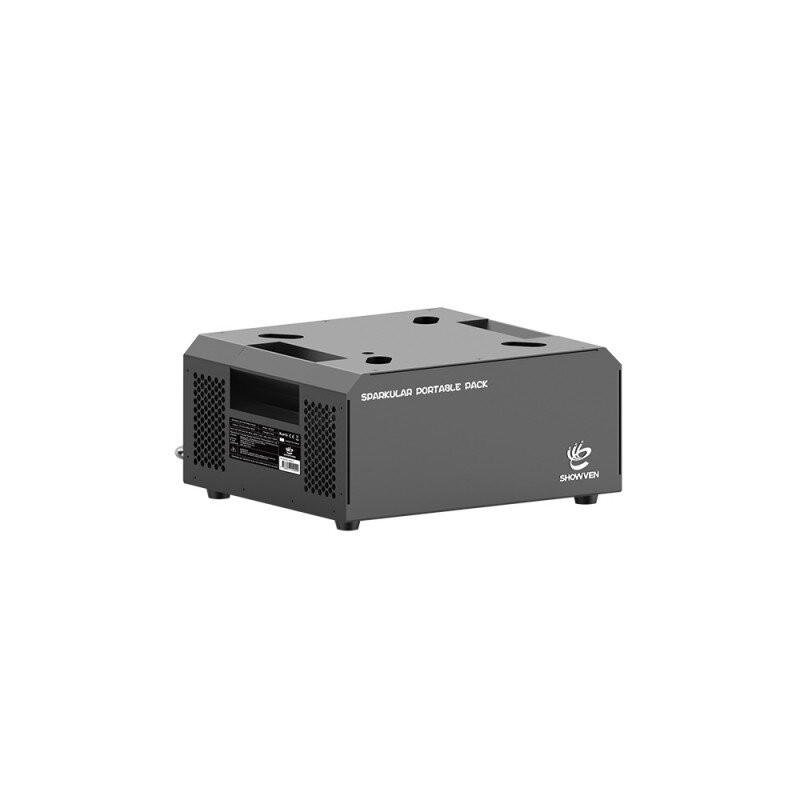

SHOWVEN SPARKULAR Portable Pack

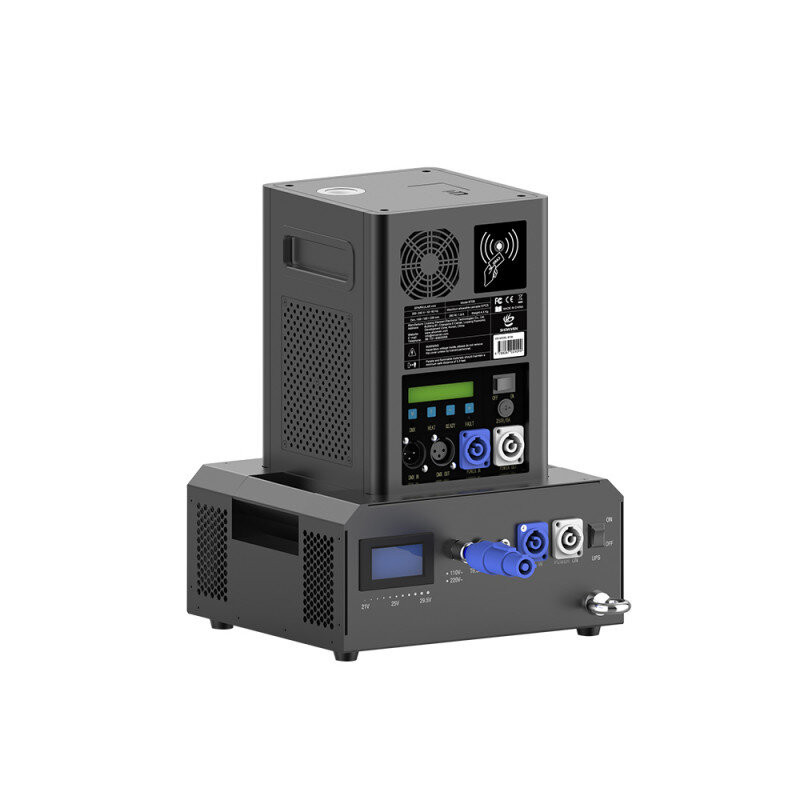

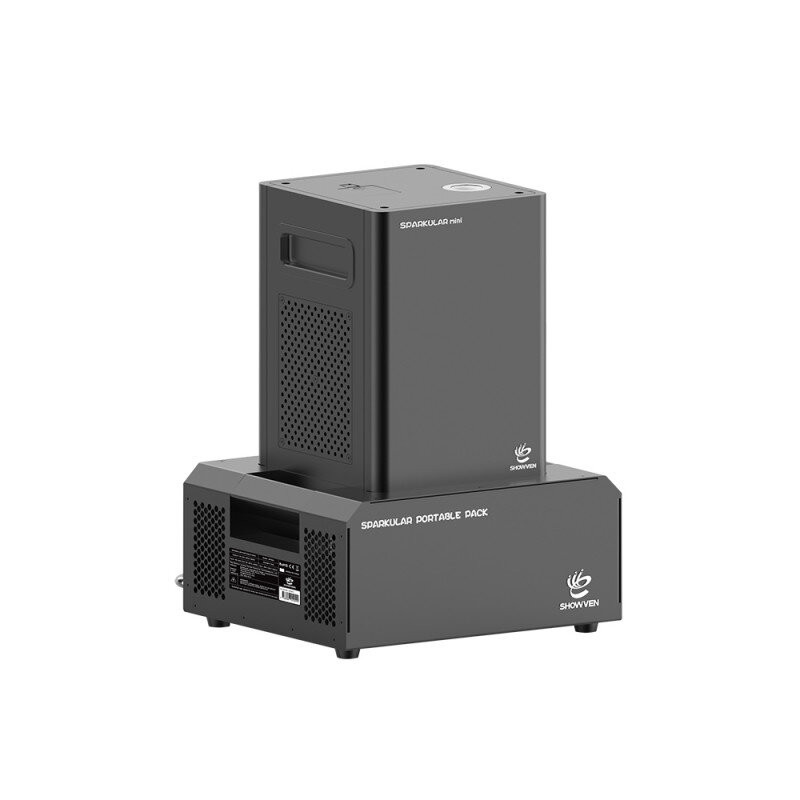

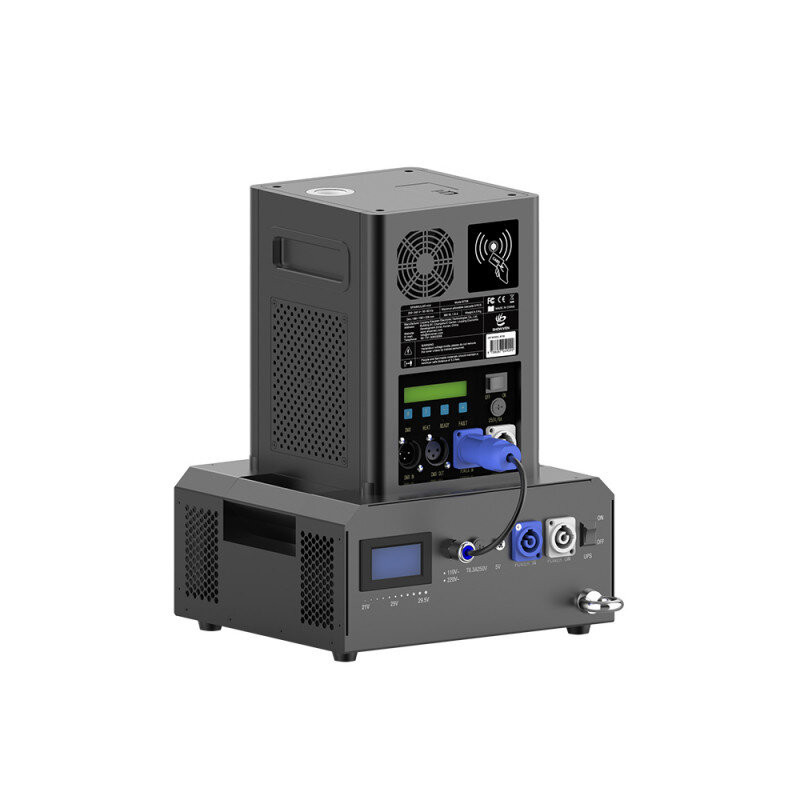

SPARKULAR Portatile Pack è una batteria appositamente progettata per SPARKULAR mini e SPARKULAR in modo da poter utilizzare queste macchine per scintille fredde senza corrente e in pieno controllo wireless. Se si mantiene SPARKULAR in standby, la batteria dura circa 2 ore.

Ottimale per eventi all'aperto dove non è presente la rete elettrica e installazioni veloci senza cablaggi.

Technical characteristics

• 2 hours standby for the SPARKULAR mini
• Input 100 - 240 V_AC 50/60 Hz, 500 W
• Output 220 V, 50 Hz, 500 W
• Typical capacity: 10 Ah @ 0.2 C
• Cell: 28 pcs 18650 - 3.7 V - 2500 mAh
• Initial impedance: < 200 mohm
• Nominal voltage: 24 V
• Fully charge voltage (FC): 4.3 ±0.025 V
• Fully discharge voltage (FD): 2.5 ±0.1 V
• Standard charge current: 0.2 C
• Charging time: standard carging approx 6 hours
• Standard discharge current: constant current 0.2 end voltage FD
• Max. charge current: 5 A
• Max. discharge current: 25 A
• Discharge cut-off voltage: 19.25 V
• Charge cut-off voltage: 29.4 V
• Cycle Life: ≥ 300 times (at standard testing condition, constant current 0.2 C charge to FC, then constant voltage charge to current declines to 0.01 C, rest 10 min, constant current 0.5 C discharge to FD, rest 10 min. Repeat above steps till continuously discharging capacity. Higher than 80% of the initial capacities of the cells)
• Dimensions: 266 x 235 x 130 mm
• Weight: 7.5 kg
