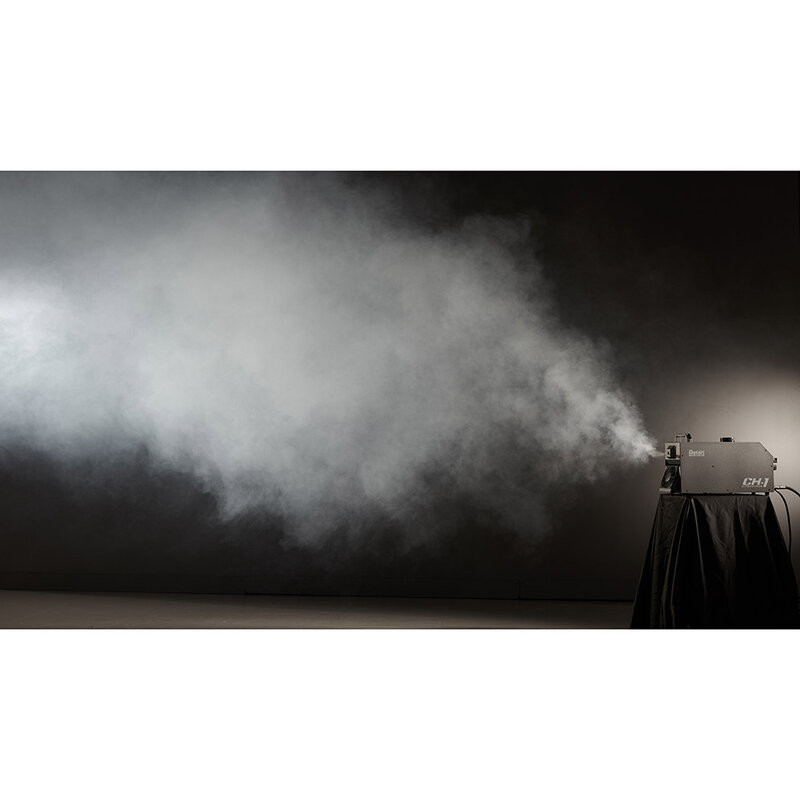

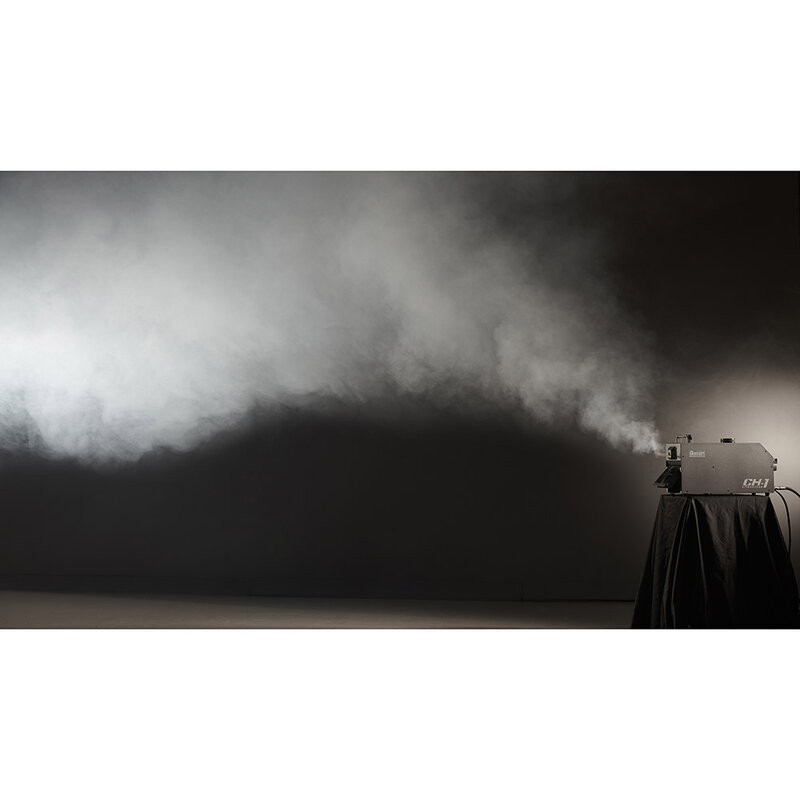

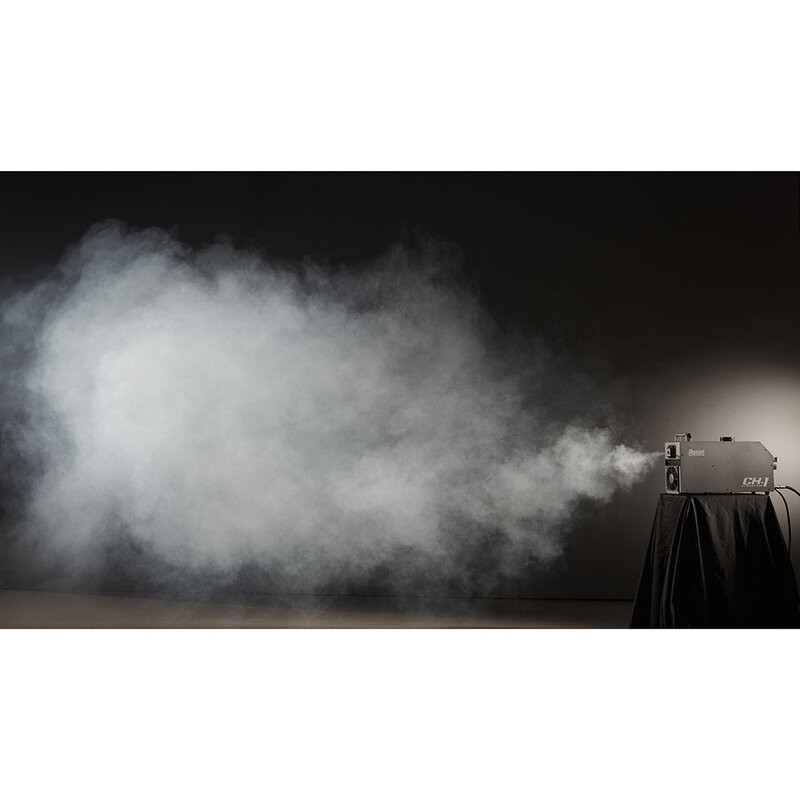

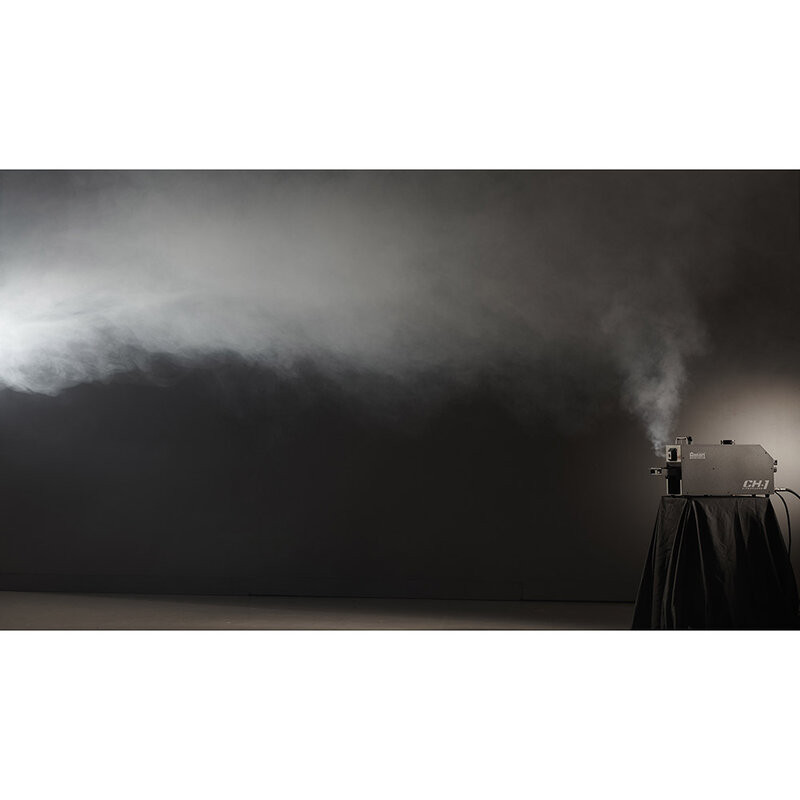

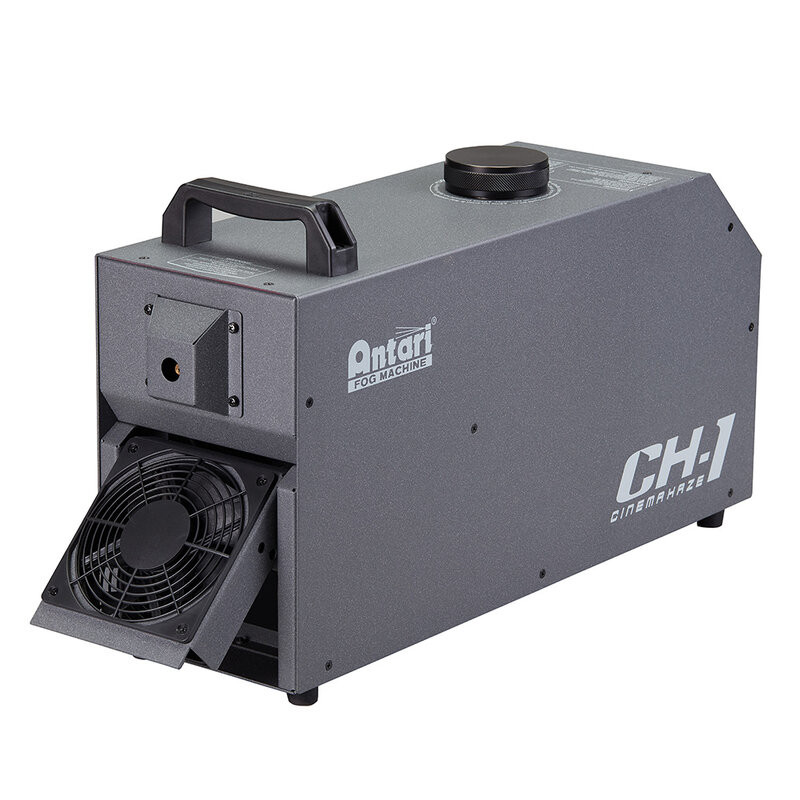

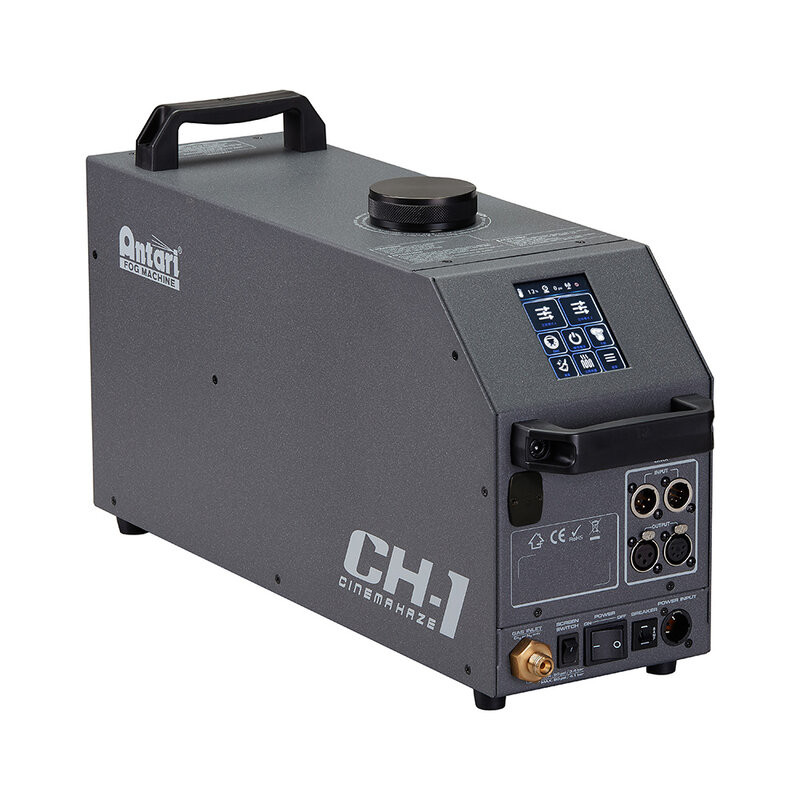

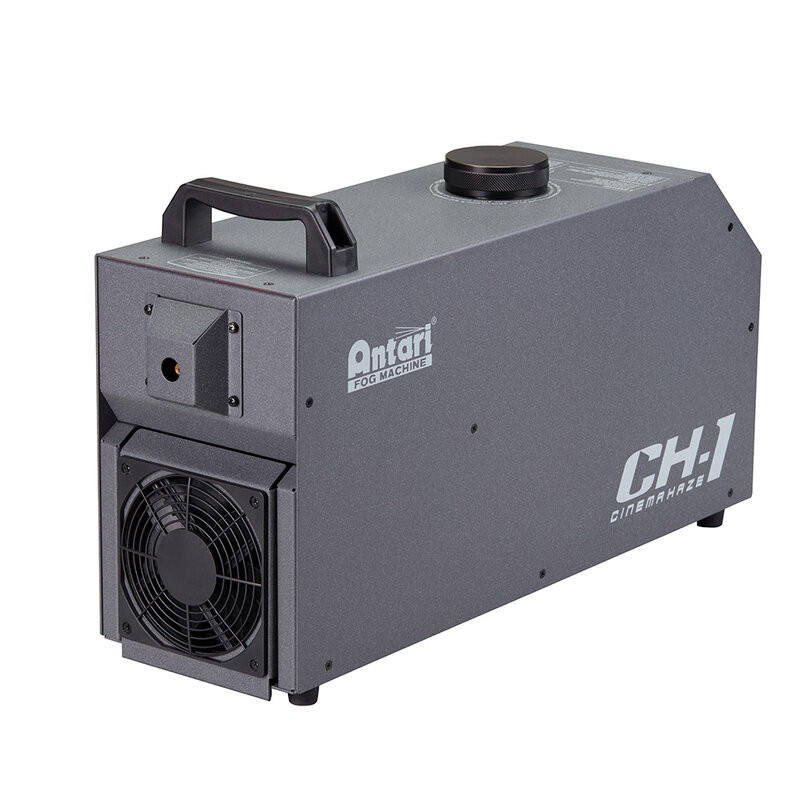

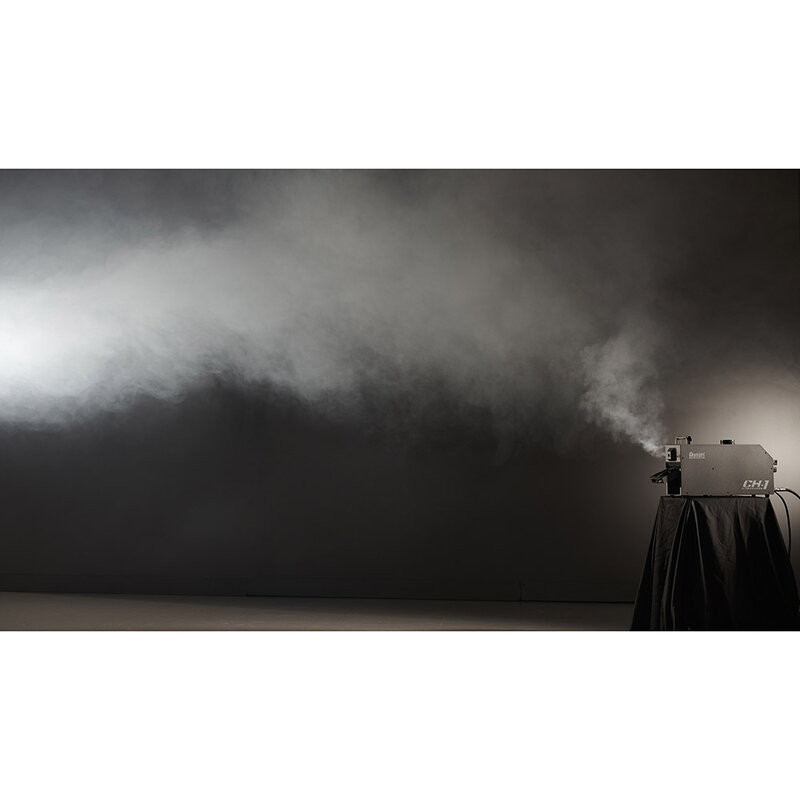

This compact CO2 machine produces a high volume of fine smoke evenly with low operating noise. It features an adjustable fan to blow the smoke at various angles.

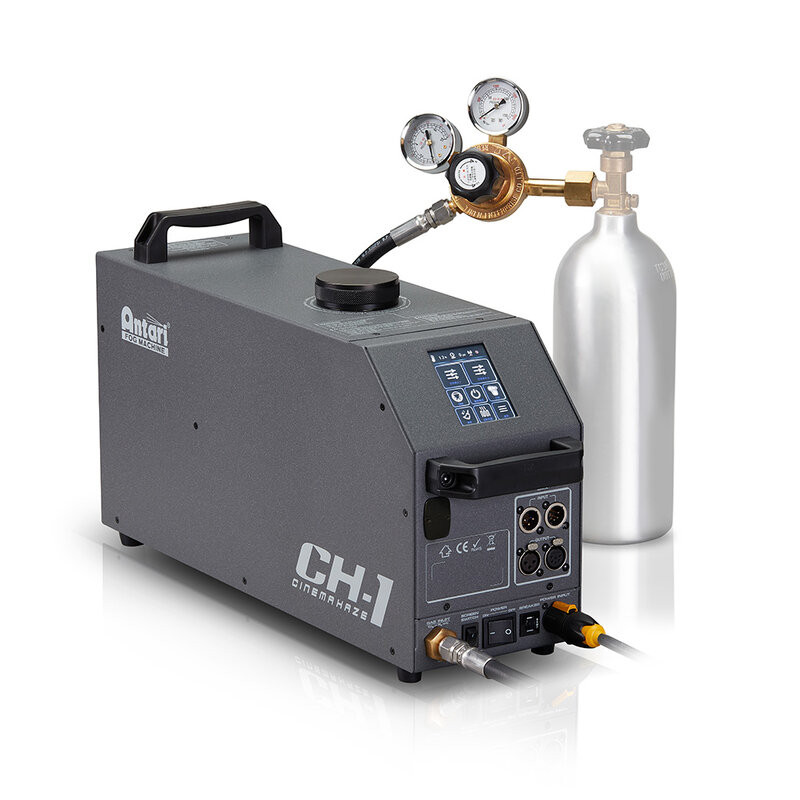

It features a color touch panel for intuitive operation, and connects to a CO2 gas cylinder, mixing gas and liquid together to provide a longer hang time.
Customer benefits
- Long hang time
- Low operating noise
- Low fluid consumption
- Settings via color touch panel

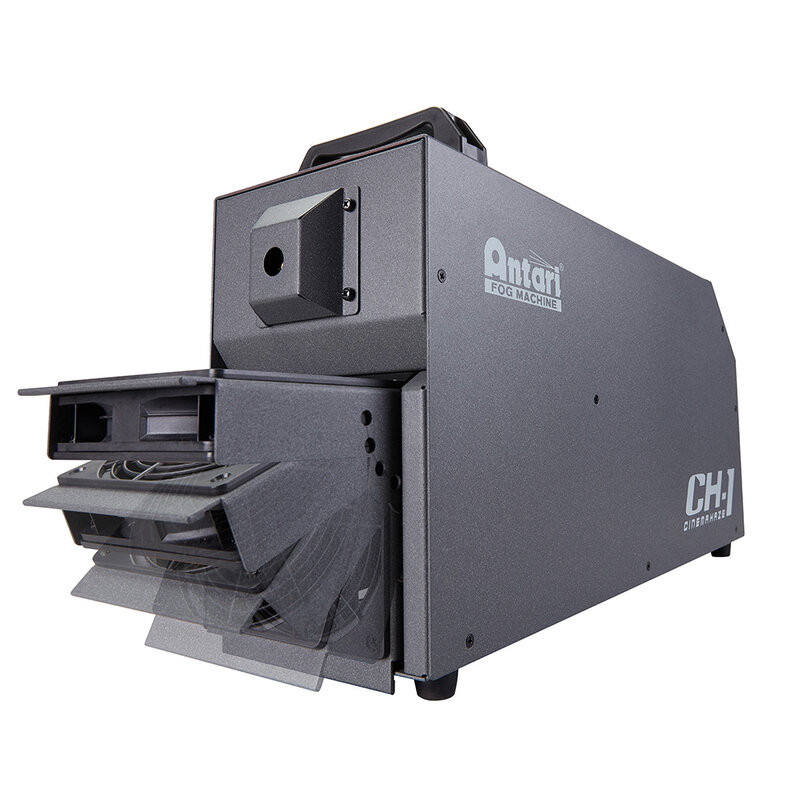

- Adjustable fan
Application areas
- Film and TV production
- Theatre and live performance
- Events and concerts
- Theme parks and attractions
- Photography and videography
Technical characteristics
| Rated voltage |
100 - 240 VAC 50/60 Hz, 6 A |
| Rated power |
1250 W |
| Warm-up time |
approximately 8 min |
| Fluid consumption |
2 mL/min @ 2.76 bar |
| Fluid tank capacity |
2.5 L |
| Gas type |
CO2, N2 |
| Gas pressure range |
50 - 60 psi / 3.4 - 4.1 bar |
| Gas consumption |
0.36 kg/h @ 40 psi 0.18 kg/h @ 20 psi |
| Control Interface |
TFT LCD touch screen |
| Ambient temperature range |
0 to 40 ℃ |
| Control methods |
manual, timer, DMX 512, Wireless DMX (optional) |
| DMX Channels |
1 / 3 / 5 |
| Interface |
Neutrik TRUE 1 connector (power) XLR 3-pin and 5-pin (DMX) 9/16 -18 R.H (gas inlet) |
| Optional accessories |
W-DMX-PCBR, FCH-1 flight case |
| Included accessories |
CH-1 fog machine, pressure gauge, air hose |
| Dimensions (L x W x H) |
57.9 x 16.4 x 31.1 cm |
| Weight |
17 kg |
