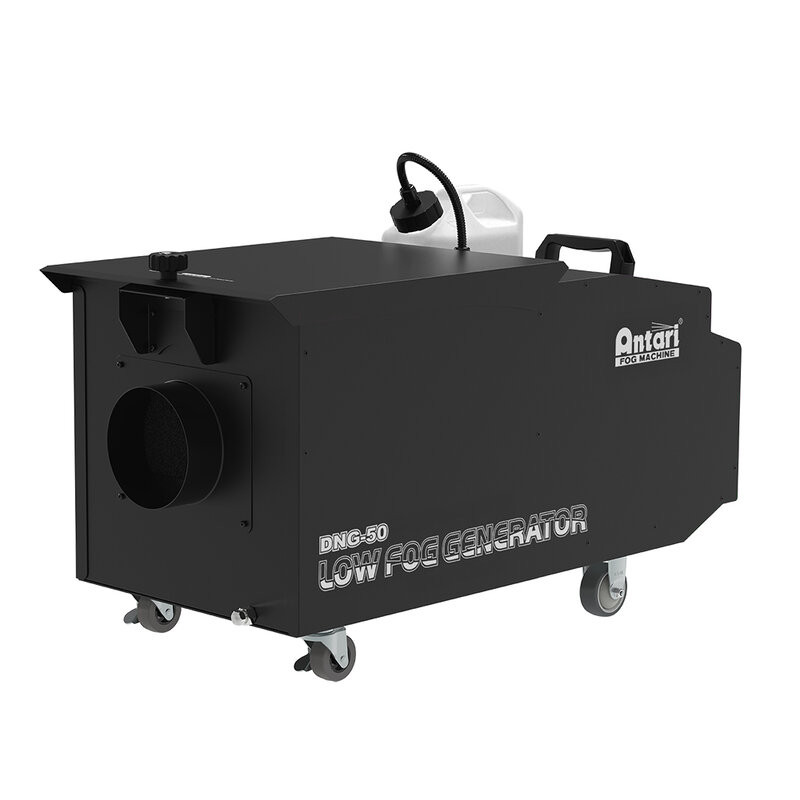

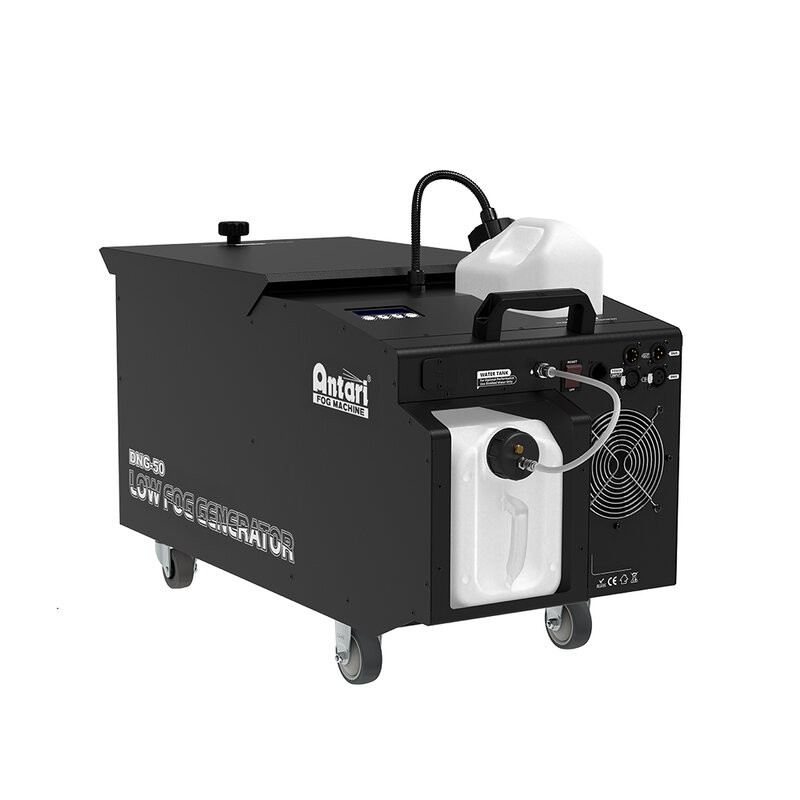

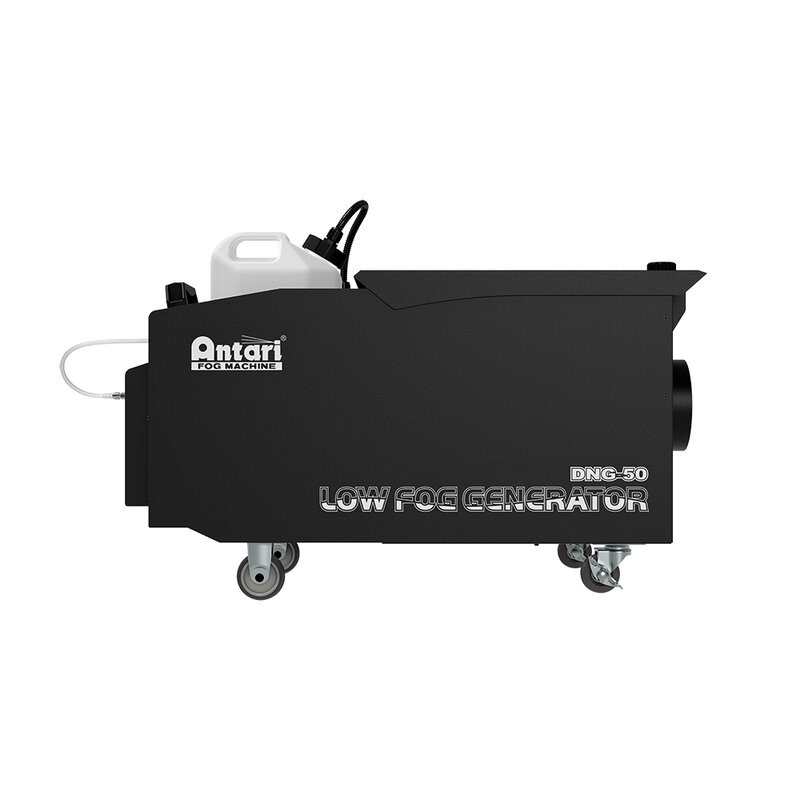

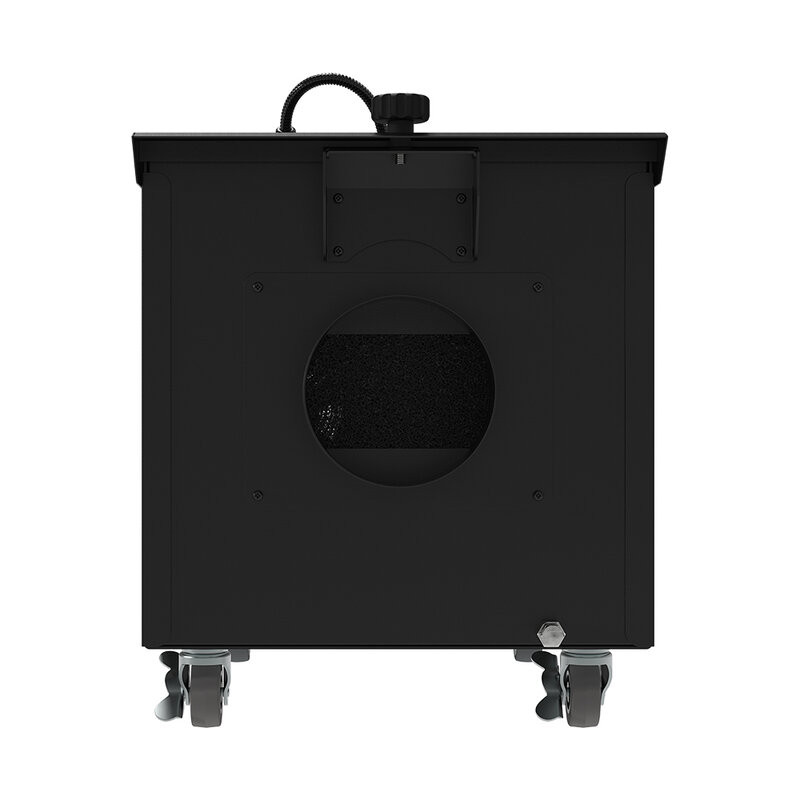

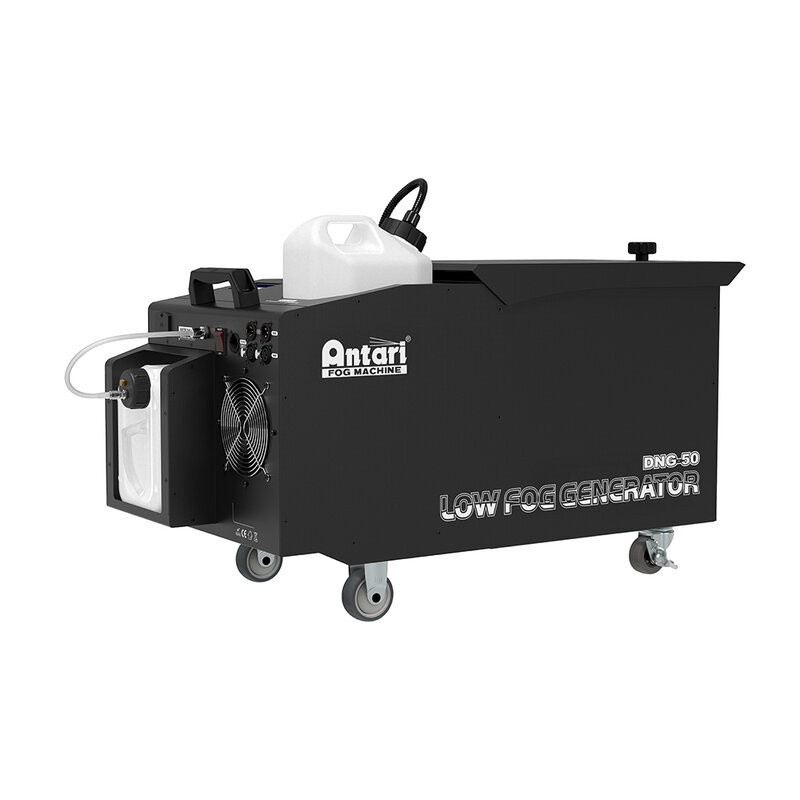

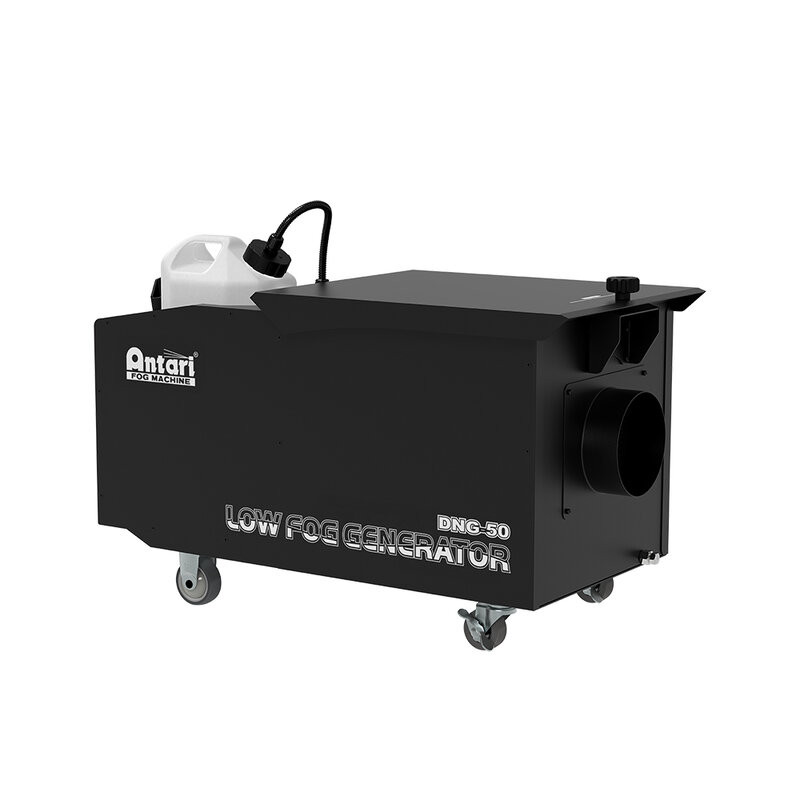

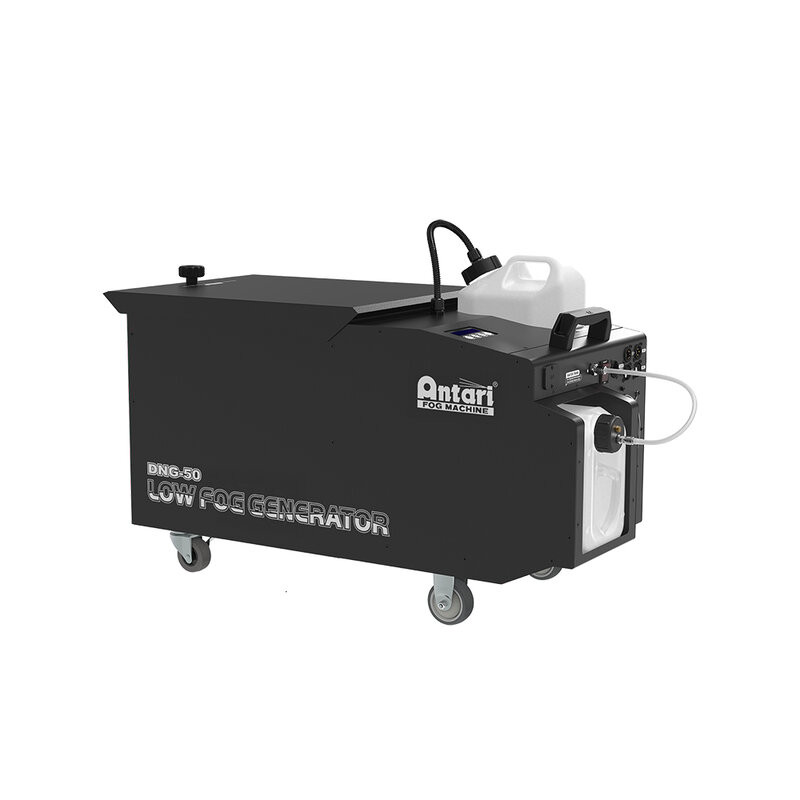

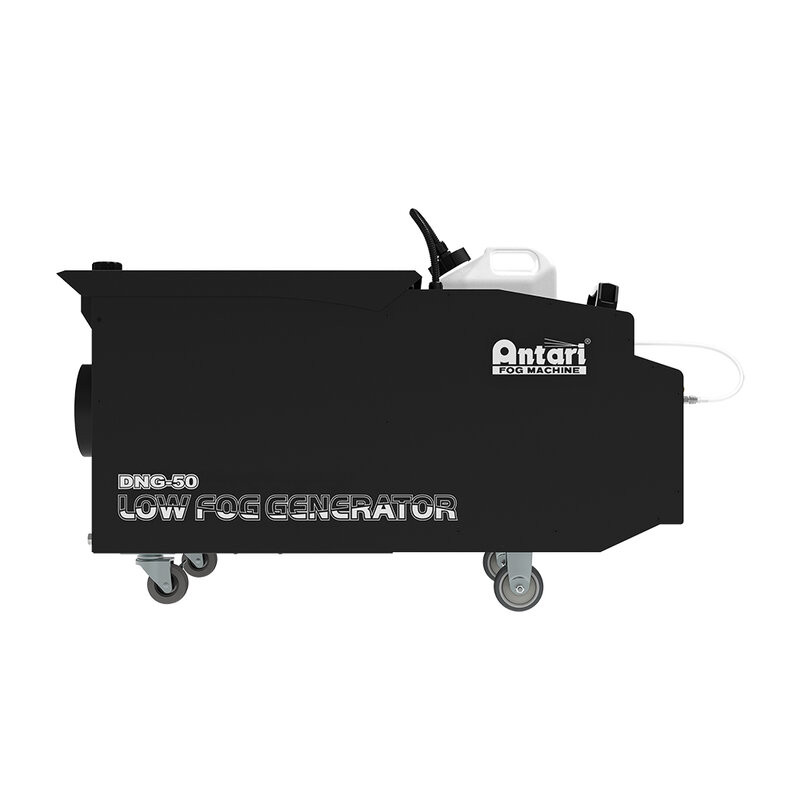

The DNG-50 is a low-level fog machine designed to generate spectacular ground-level effects without the use of dry ice or liquid CO2.
It uses advanced ultrasonic technology to produce uniform, floor-level fog. It is compact, quiet, and energy-efficient, with a power output of 1100 W and a 2.5 L tank. Maximum fluid consumption is 16 mL per minute.

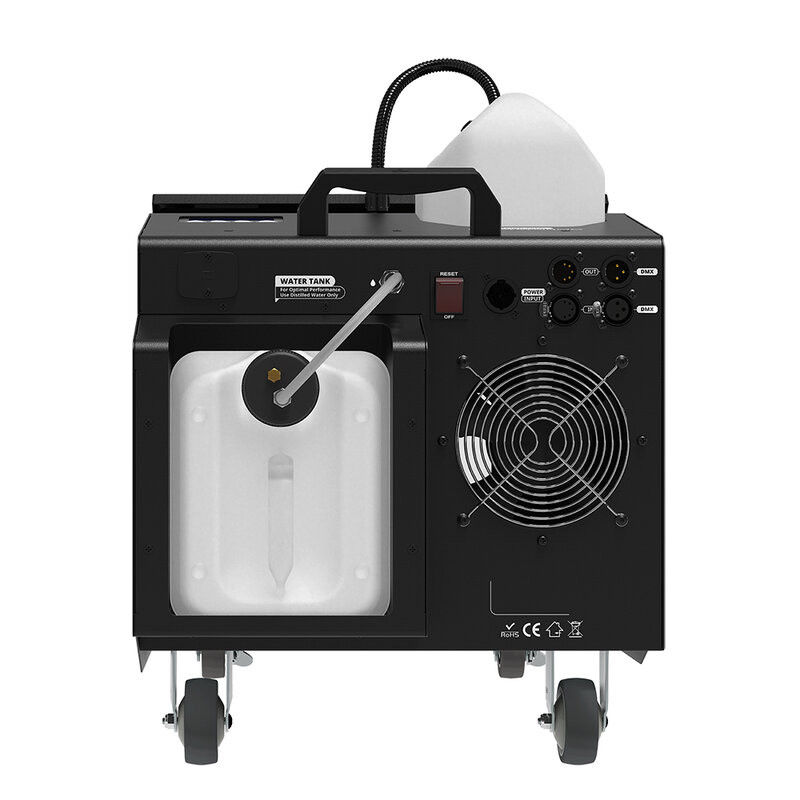

Control is possible manually, via timer, DMX, wireless, or W-DMX, with 3- and 5-pin XLR connectors and power supply via a Seetronics connector.
It is designed for fixed or mobile installations.
User benefits
- Generates low-level fog without dry ice or CO2
- Ultrasonic technology for a uniform, floor-level effect
- Low water level sensor
- Compact and quiet
- Rugged construction for professional use
- Voltage protection
- Optional Wireless / W-DMX control module
Areas of use
- Theaters and live performances
- Photography and video studios
- Weddings and private events
- Special events
- TV and film productions
Technical characteristics
| Power supply |
220 – 240 VAC 50/60 Hz 5 A |
| Rated power |
1100 W |
| Warm-up time |
2 min (approx.) |
| Fluid consumption |
16 mL/min (100% output) |
| Fluid tank capacity |
2.5 L |
| Water tank capacity |
5 L |
| Ambient temp. range |
0 to 40 ℃ |
| Control methods |
manual, timer, DMX512, wireless (optional), W-DMX (optional) |
| DMX channels |
1 |
| DMX connectors |
XLR 3 and 5-pin |
| Power connector |
SEETRONICS |
| Included accessories |
2 m fog conduction hose |
| Optional accessories |
WTR-110 wireless remote, ES-W-DMX receiver |
| Dimensions (L x W x H) |
81.3 x 35.5 x 49.1 cm |
| Weight |
25.4 kg |
