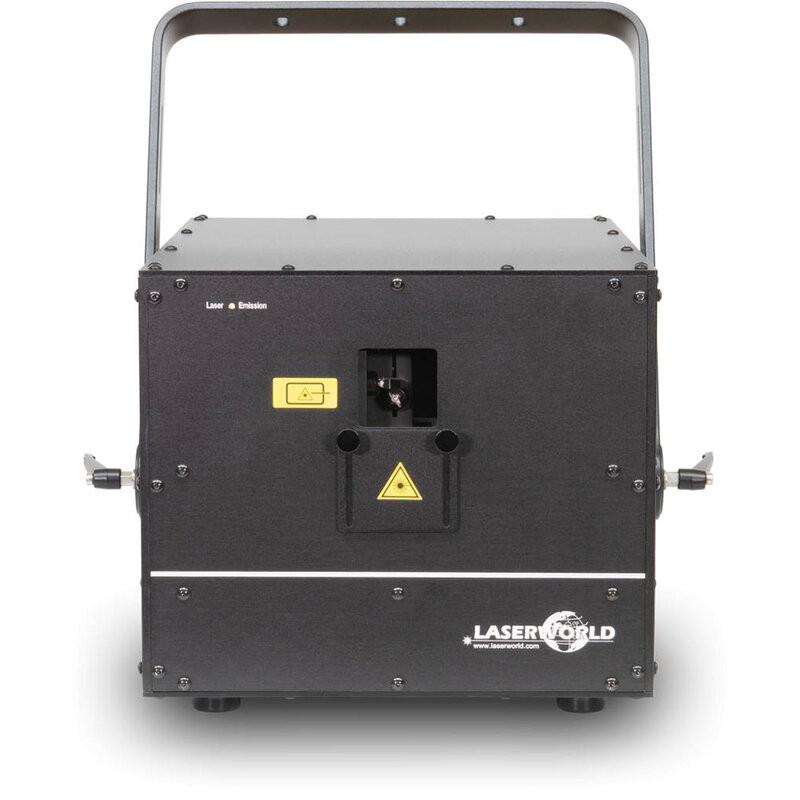

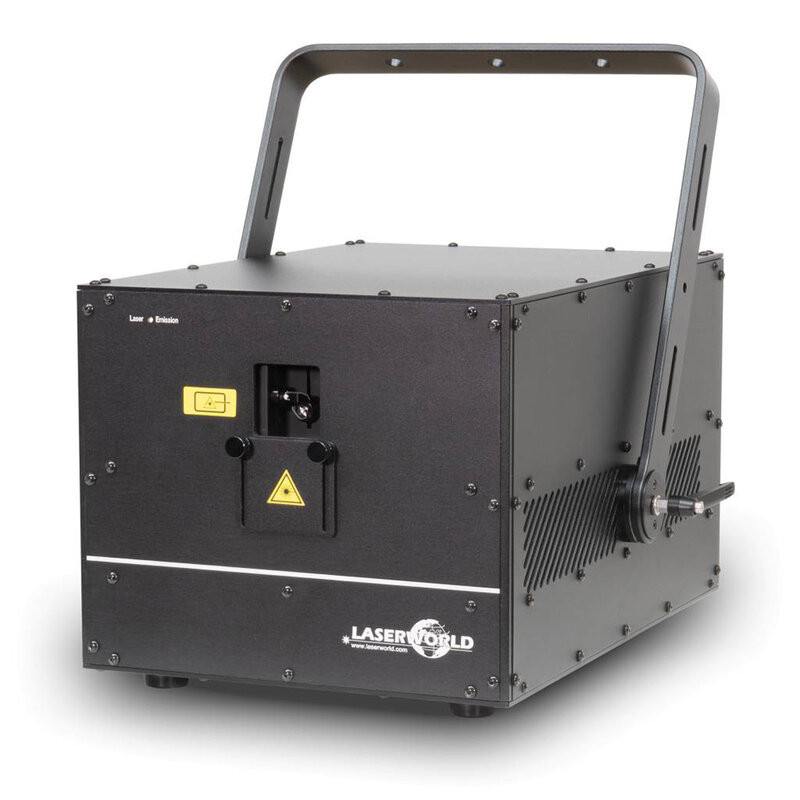

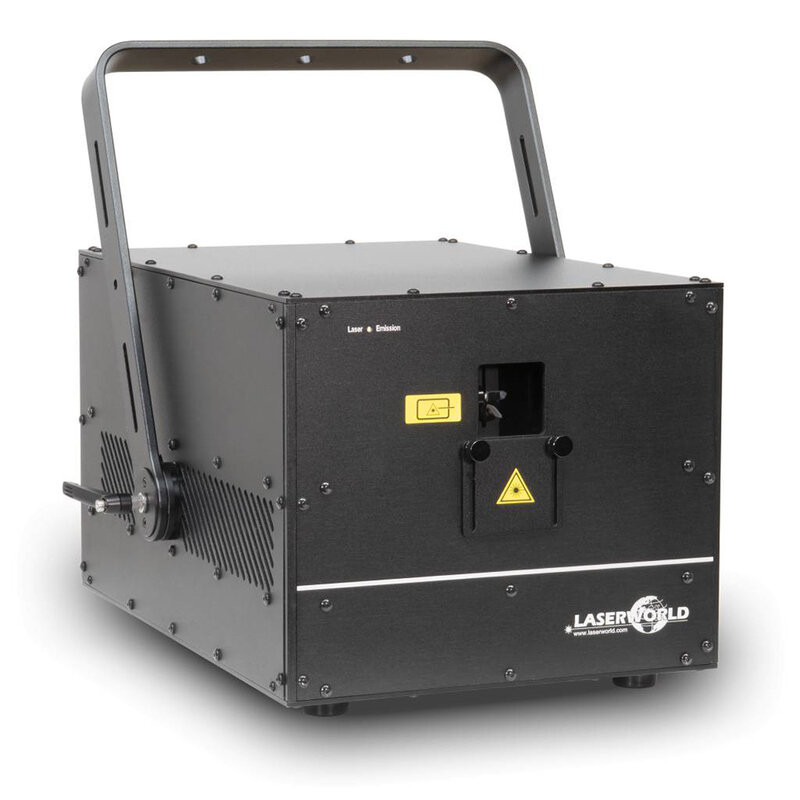

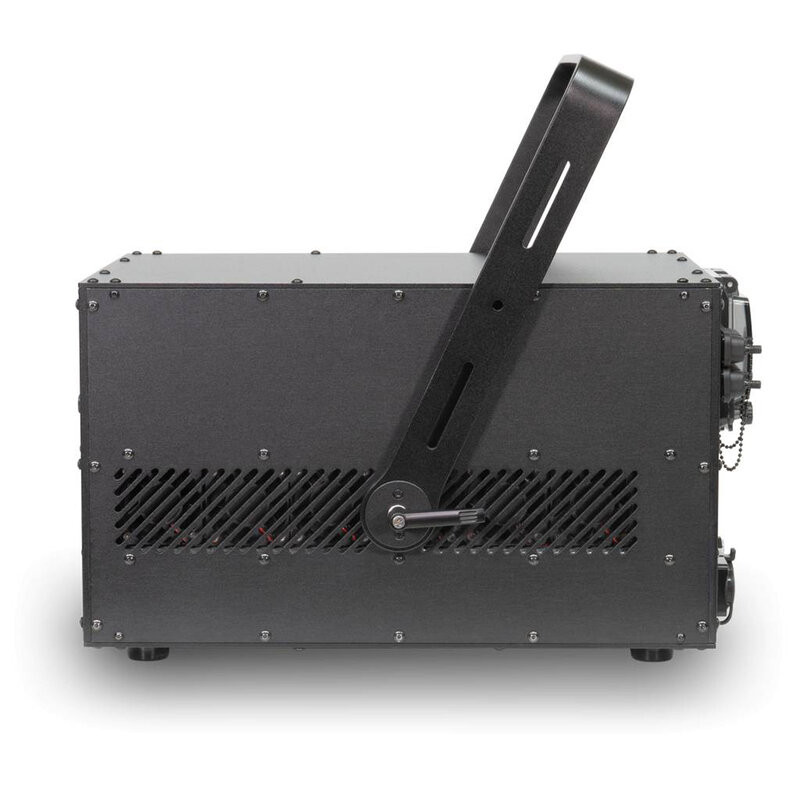

Laserworld DS-30.000 IP65 FB4

The DS-30.000 FB4 IP65 is a professional 30,000 mW RGB laser system, designed for large events and outdoor installations thanks to its IP65 rating. The all-diode source guarantees intense colors, high saturation, and an extremely sharp beam, with specifications of approximately 5.5 mm / 1.1 mrad, ensuring maximum visibility even over long distances.

The system integrates the Pangolin FB4 interface, which allows control via DMX, Art-Net, LAN, and ILDA, as well as the ability to load custom content into the internal memory and recall it directly via DMX or Art-Net. It is compatible with professional software such as QuickShow (included) and BEYOND, offering an advanced workflow for complex shows.

The 30 kpps @ 8° scanners and wide 50° maximum scan angle make the IP65-rated DS-30.000 FB4 suitable for projecting graphics, logos, text, and complex effects.

The fully sealed enclosure minimizes maintenance, making it ideal for permanent installations and intensive outdoor use.

User benefits

• High output of 30,000 mW with saturated colors and an extremely visible beam
• Rugged IP65 housing for outdoor use and minimal maintenance

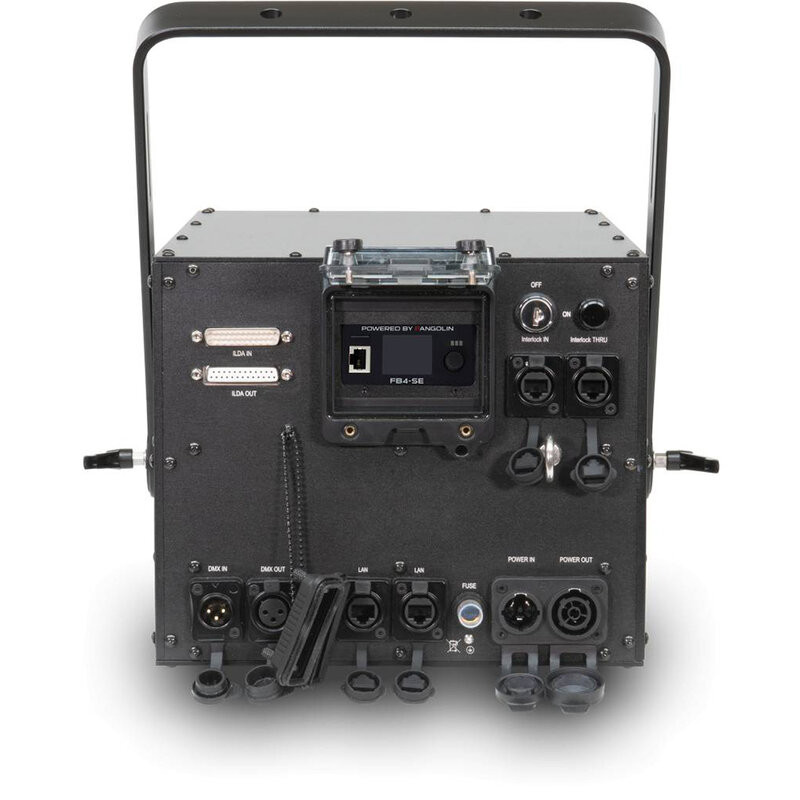

• Integrated Pangolin FB4 interface with DMX, Art-Net, LAN, and ILDA control
• Internal memory for shows and effects recalled via DMX or Art-Net
• Compatible with professional QuickShow (included) and BEYOND software
• Suitable for projecting graphics, logos, text, and complex effects

Areas of use

• Festivals and large outdoor events
• Stages and large-scale live productions
• Permanent outdoor installations
• Venues and clubs
• Logo projections, laser mapping, and complex graphic content
• Multimedia shows

Technical characteristics

• Guaranteed power at aperture: 30,000 mW
• Red output: 6000 mW / 638 nm
• Green output: 8500 mW / 520 nm
• Blue output: 16,000 mW / 450 nm
• Beam specifications: approx. 5.5 mm / 1.1 mrad
• Scanner: 30 kpps @ 8°
• Max. scan angle: 50°
• Laser source: diode
• Laser Class: 4

• Operation modes: ILDA, DMX, Art‑Net, LAN, integrated SD card, stand‑alone
• Basic patterns: available for download
• Integrated control: Pangolin FB4 interface

• IP rating: 65
• Power supply: 85 – 250 V_AC 50/60 Hz
• Power consumption: 350 W

• Dimensions (L x W x H): 37.8 × 26 × 21.8 cm
• Weight: 17.3 kg
• What's in the box:
  • Laserworld DS‑30.000 FB4 IP65
  • Power cable
  • Interlock dongle
  • Key
  • Manual
  • Pangolin QuickShow software
