DJPower H-IP20V

The H‑IP20V is a dual-nozzle super-jet fog machine designed to generate extremely powerful air columns without the use of CO₂ tanks, thanks to its fluid-based design. Thanks to its proprietary high-velocity airflow assist technology, the machine produces rapid eruptions with immediate dissipation, creating visually striking stage effects.

The dual-nozzle design allows for fog columns up to 15 meters high, enhanced by 37 8W RGB + amber LEDs that generate intense, colorful beams. The machine incorporates three DJ Power patents (airflow assist, super-jet, immediate-stop) that guarantee high performance and instant response.

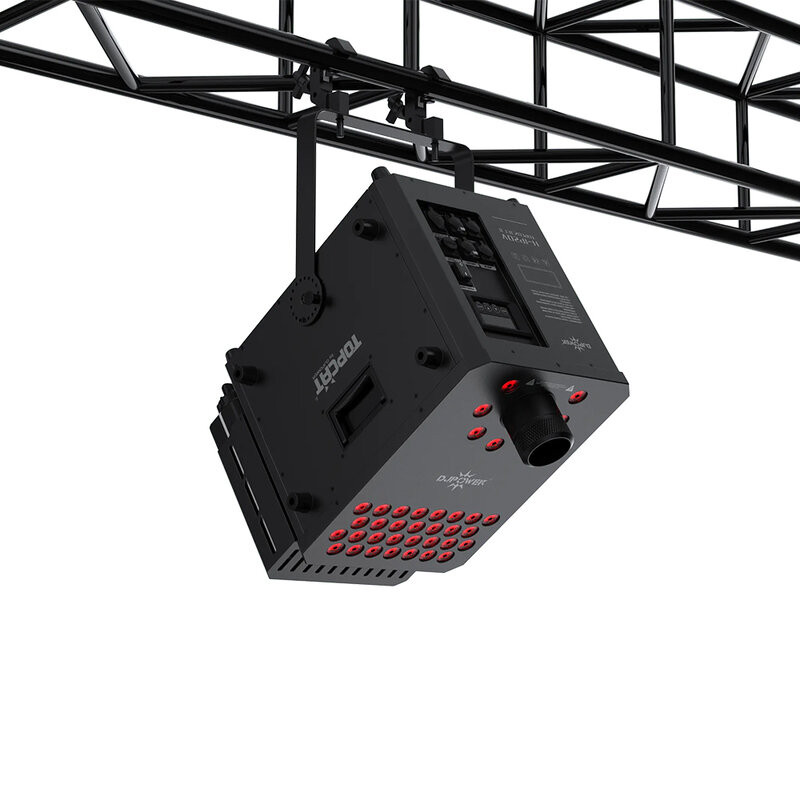

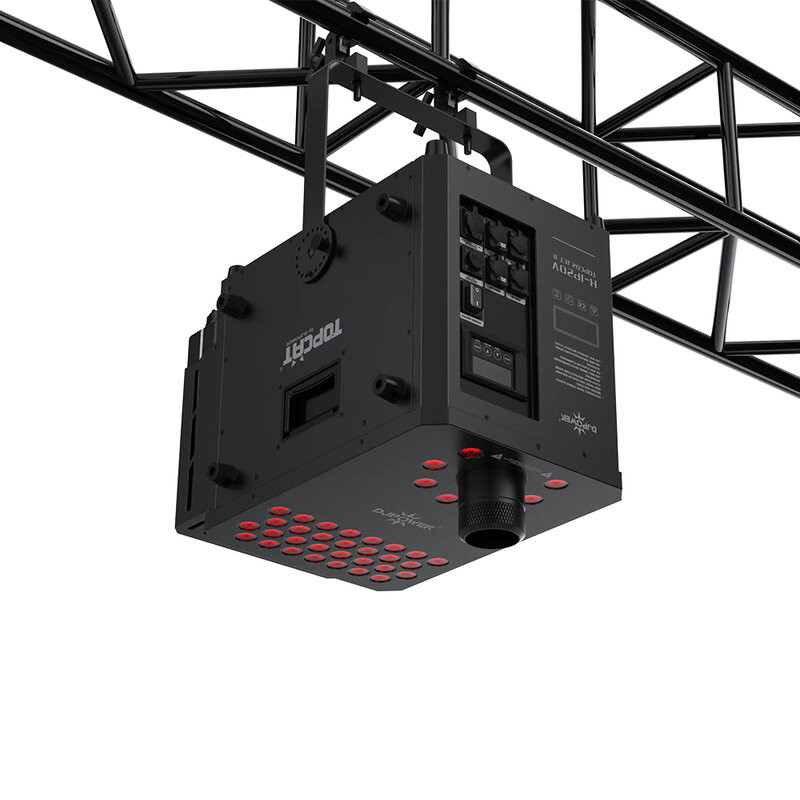

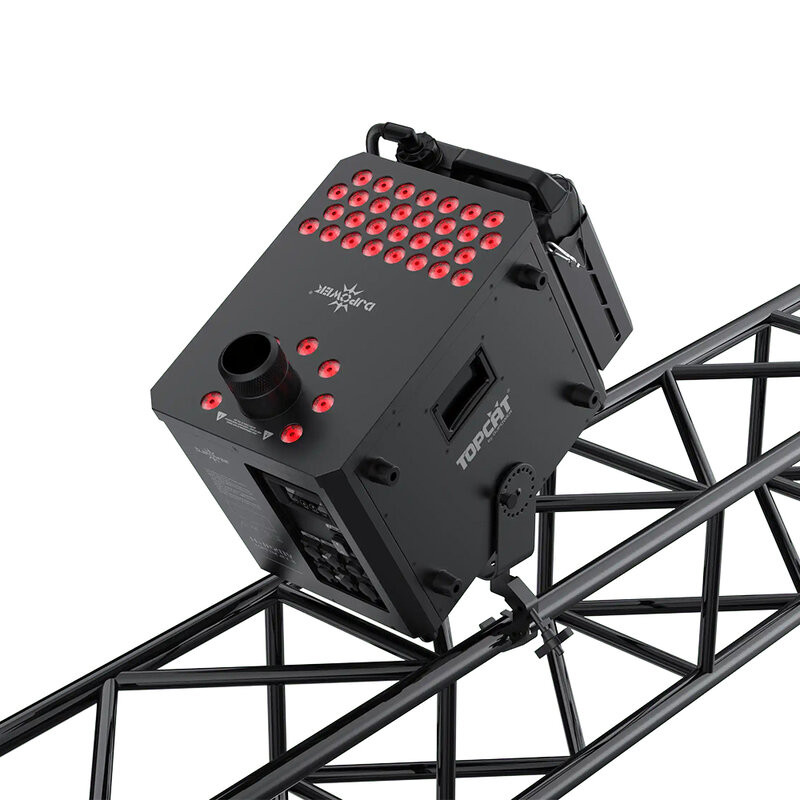

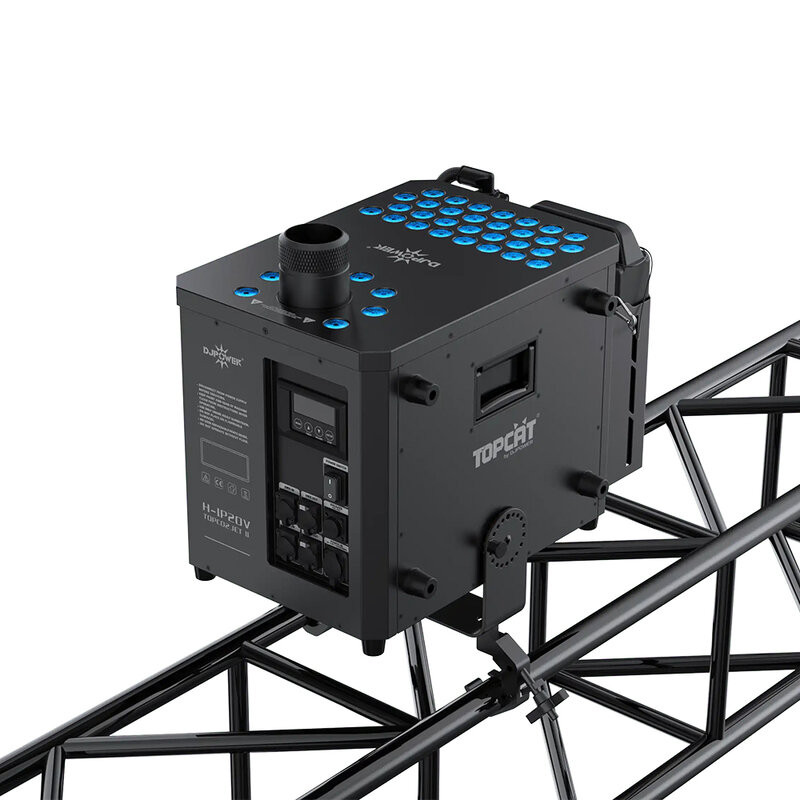

The H‑IP20V is IP53 rated when positioned vertically, making it suitable for outdoor use even in light rain. It can also be installed horizontally, tilted, sideways, and upside down, with the option of truss mounting.

Control is via LCD panel or DMX512 (15 or 16 channels), with advanced timer, duration, LED color, and safety features. The 5-liter tank and power output of up to 3100 W allow for extremely intense output.

User benefits

• Extremely powerful, cylinder-free stage effect that replaces CO₂ cannons
• Greater visual control thanks to the immediate response of the super-jet and immediate-stop
• 15/16-channel DMX control
• Also suitable for outdoor use thanks to IP53 vertical protection
• Versatile installation that allows the machine to be adapted to stages, trusses, and complex structures
• High-power LEDs that amplify the smoke column, making it visible even from a great distance

Areas of use

• Large stages and concerts
• Festivals and productions
• Clubs and discos
• Corporate events and shows with a strong visual impact
• Cultural tourism projects, theme parks, and permanent installations
• TV productions and live shows

Technical characteristics

• Input voltage & rate: 220 – 240 V_AC 50/60 Hz
• Current limiter type: 16 A 250 V
• Total power consumption: 3100 W (european version)
• Heating: heat up time: approx. 6 min
• Light source:
  • LED color: RGB, amber
  • LED power: 8 W × 37 pcs
• Rainproof rating: IP53 (upright only)
• Tank: fluid tank capacity 5 L
• Output:
  • Adjustable output: no
  • Max output volume: approx. 117,000 cuft/min
  • Max output height: approx. 15 m
  • Fluid consumption (100% output): approx. 1.8 min/L
  • Maximum continuous duration (100% output): approx. 10 s
  • Continuous output: no
  • Output duration with full tank: approx. 9 min
• Placement & mounting:
  • Horizontal: yes
  • Inclined: yes
  • Side lay: yes
  • Hang upside down: yes
  • Rigging & trussing: yes
• Control:
  • On-device manual control: LCD control board
  • Wireless control: no
  • Wired control: no
  • Control protocol: DMX512
  • DMX channel range: 15 or 16
• Consumable: PRO‑20V
• Weight & dimensions:
  • Machine dimensions: 53 × 35 × 44 cm
  • Net weight: 33.5 kg
