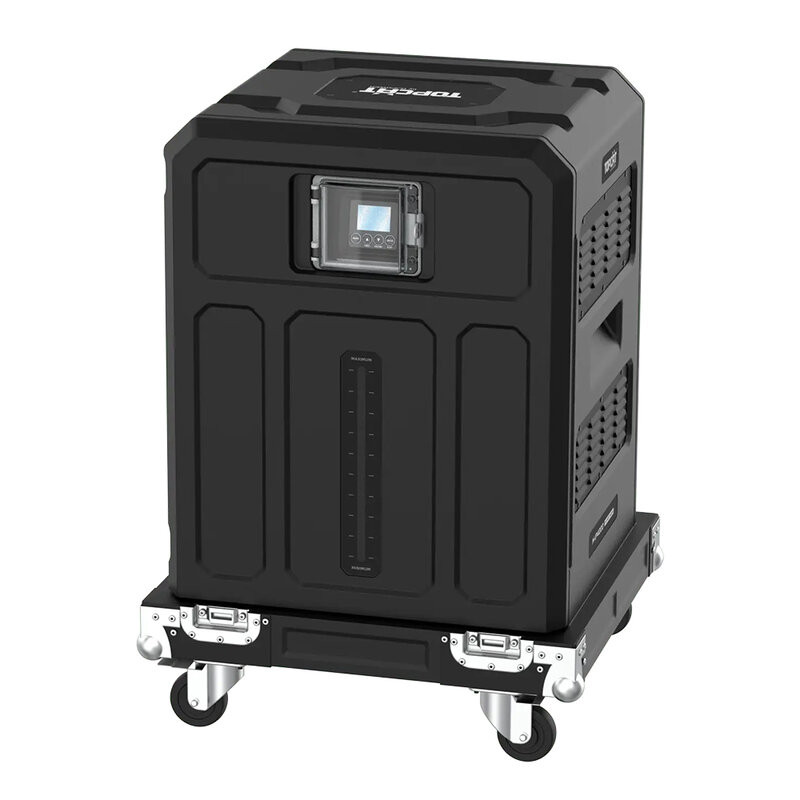

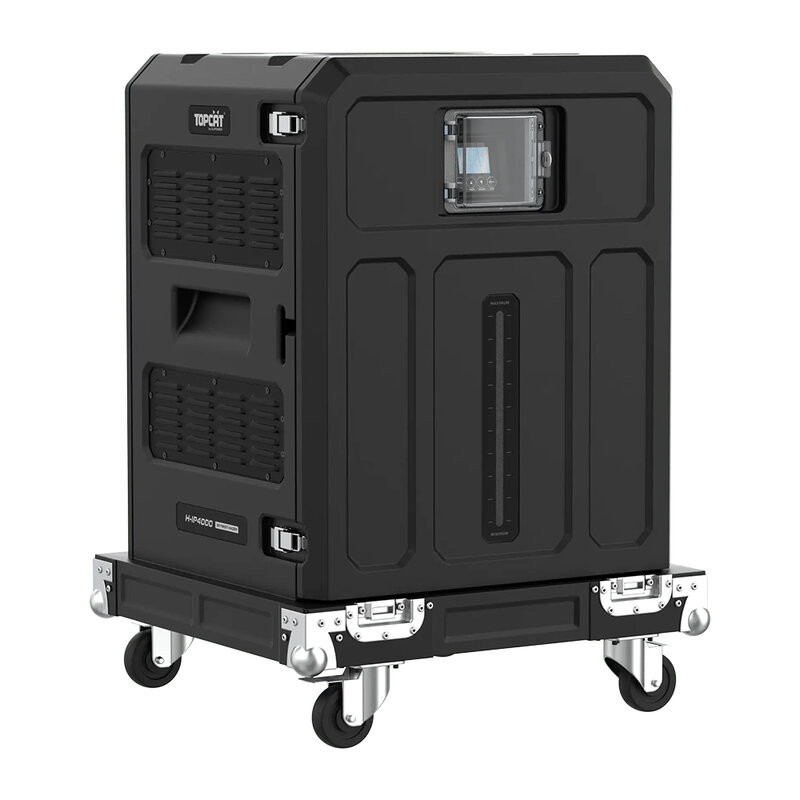

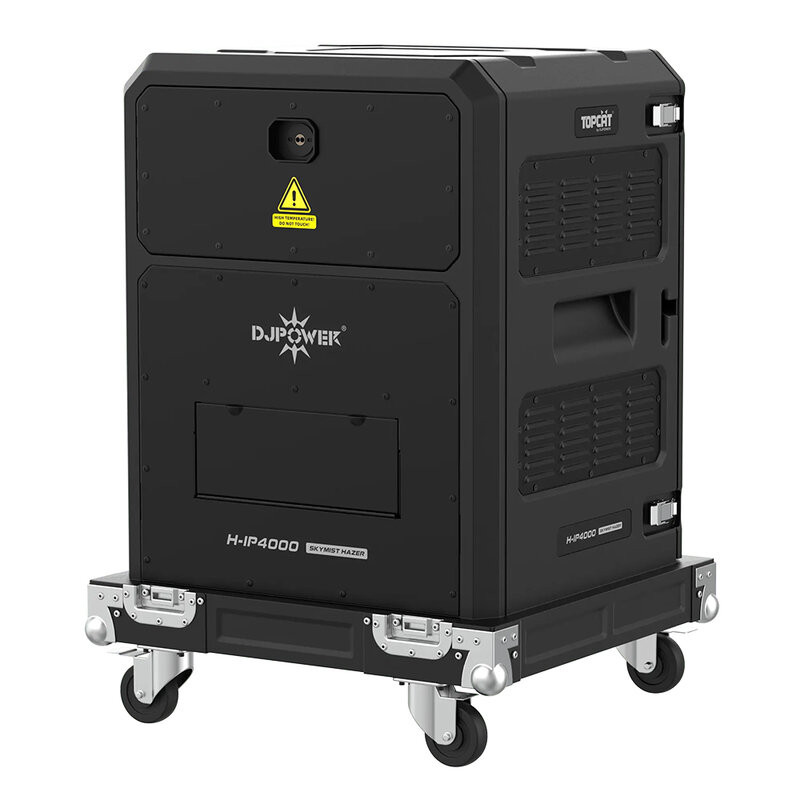

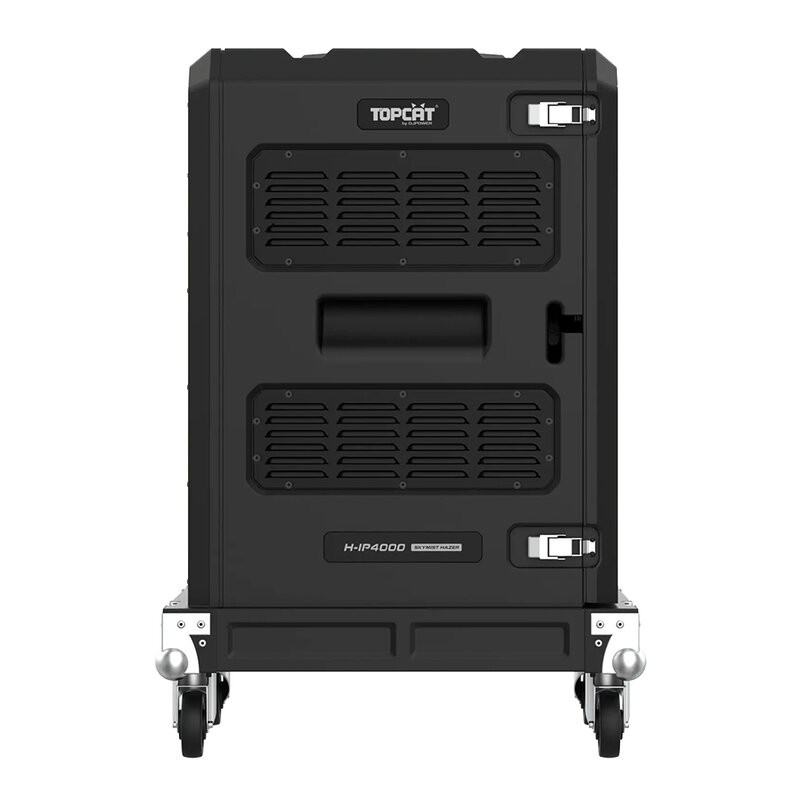

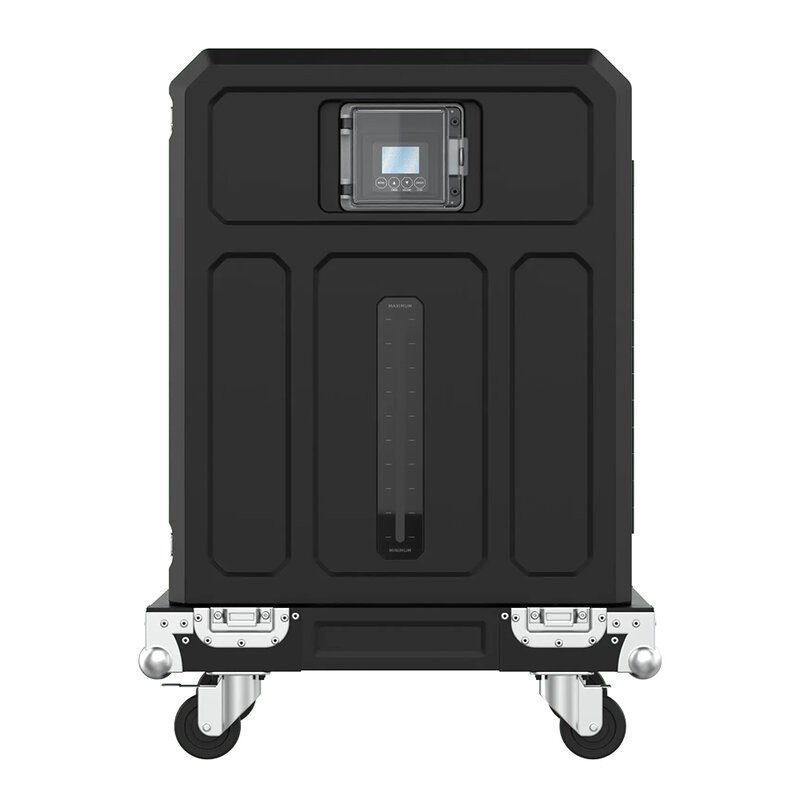

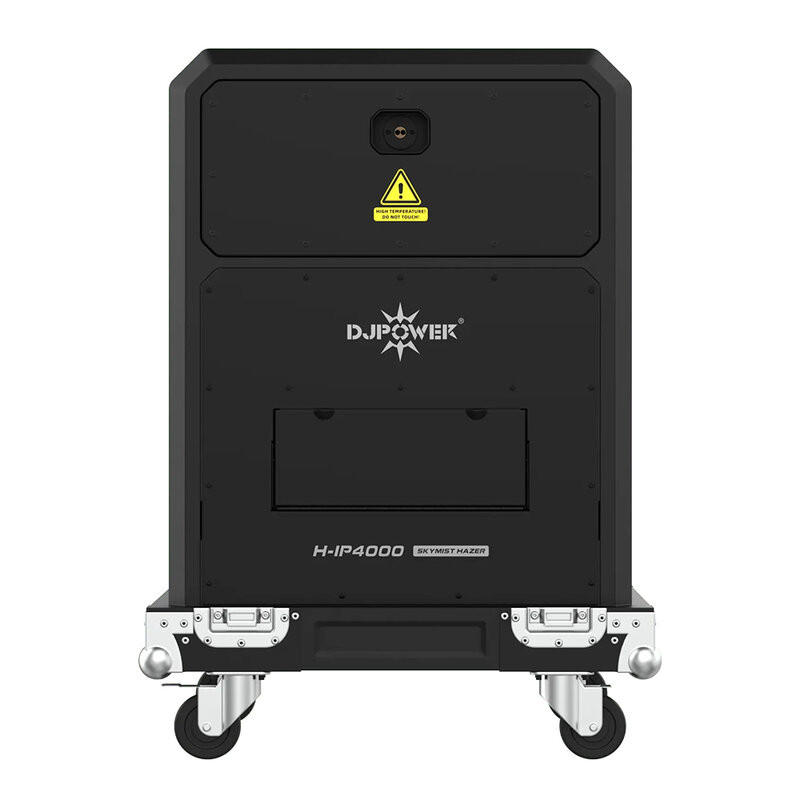

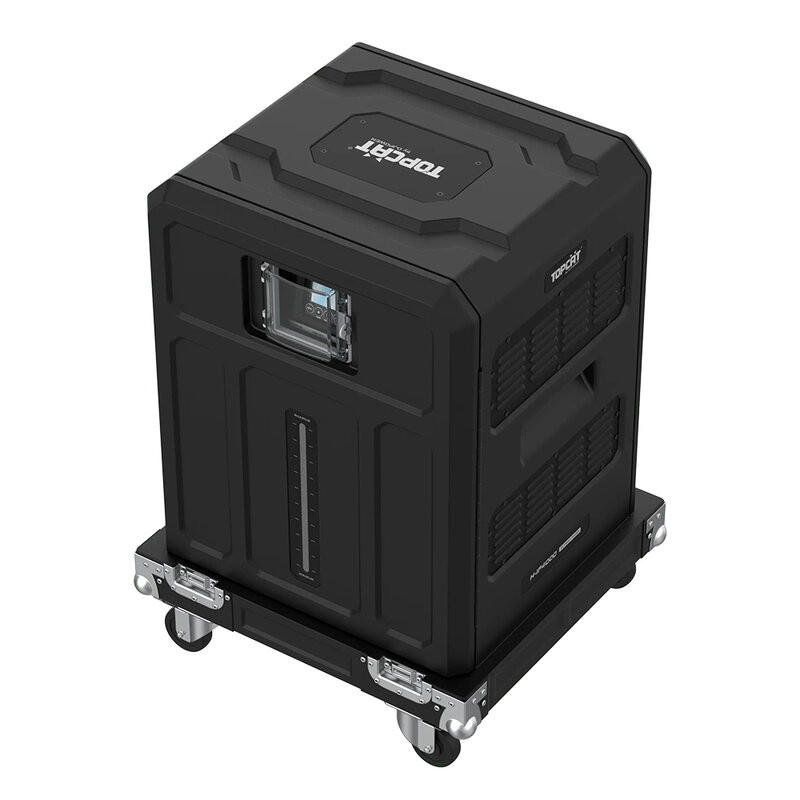

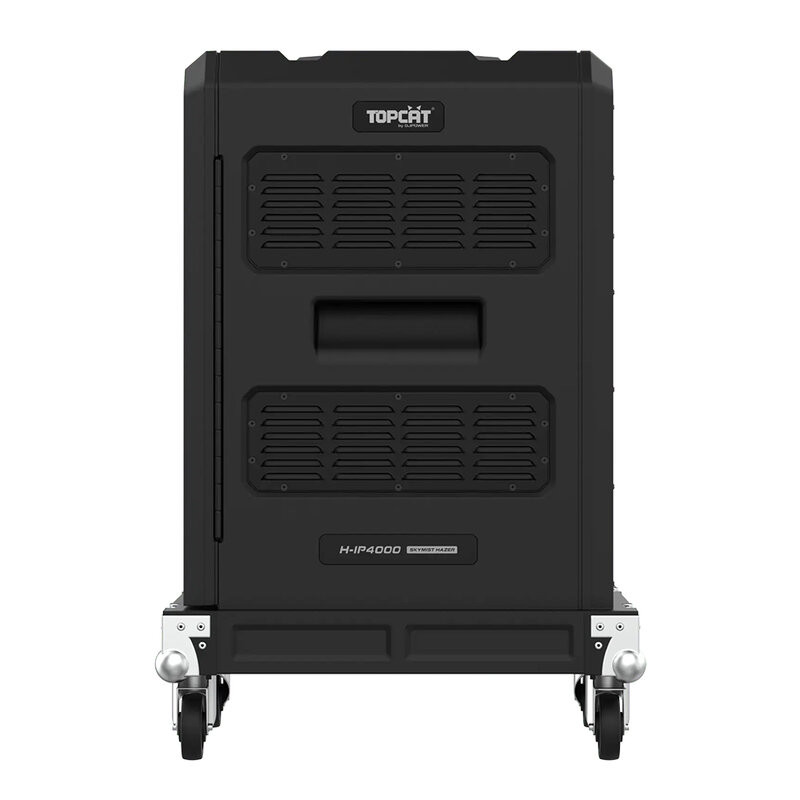

DJPower H-IP4000

The H‑IP4000 is an atmospheric effects machine designed for large-scale productions, featuring a high-density, corrosion-resistant composite structure and designed for continuous use in harsh environments. Its IP54-rated rainproof design allows for outdoor operation.

The machine offers two output modes — haze and fog — with differentiated power consumption and adjustable volume to adapt to different scenarios. The silenced waterproof fan generates a powerful flow with reduced noise, while the adjustable deflector allows for precise control of the emission angle. Independent LED lights facilitate nighttime or low-light operation, as does fluid level monitoring.

The integrated flight case simplifies transport and handling on tour, reducing setup time and protecting the unit during travel. The 10-liter tank ensures long battery life in both modes. Control is via an LCD panel or DMX512/RDM, with three channels dedicated to airflow, output, and haze/fog mode selection.

User benefits

• High-density, durable, and corrosion-resistant composite structure
• IP54 protection for outdoor use, even in the rain (with appropriate precautions)
• Silent, waterproof fan with powerful airflow and low noise
• Adjustable deflector for precise control of the output angle
• LED for nighttime operation and fluid level management
• Integrated flight case for quick and safe transport

Areas of use

• Large outdoor events
• Festivals and light shows
• Shows in large spaces
• Professional productions requiring controlled atmospheric effects

Technical characteristics

• Input voltage & rate: 220 – 240 V_AC 50/60 Hz
• Current limiter:
  • type: breaker
  • Specifications: 15 A 250 V
• Total power consumption: 2500 W
• Heating: heat-up time approx. 8 min
• Fluid tank capacity: 10 L
• IP grade: IP54
• Output:
  • Adjustable volume: yes
  • Max. output volume: approx. 55,000 cuft/min
  • Fluid consumption (haze mode, 100%): approx. 25 min/L
  • Fluid consumption (fog mode, 100%): approx. 5 min/L
• Placement & mounting:
  • Upright: yes
  • Side placement: yes
  • Hang upside down: yes
  • Rigging & trussing: yes
• Control:
  • On-device manual control: yes
  • Wireless control: no
  • Wired control: no
  • Control protocol: DMX512/RDM
  • DMX channel range: 3
• Consumable: PRO‑C / PRO‑A
• Dimensions & weight:
  • Machine dimensions: 58.3 × 54.5 × 79.6 cm
  • Flight case dimensions: 59.5 × 55.6 × 83.4 cm
  • Net weight: 47.5 kg
  • Weight with flight case: 61.5 kg
