Antari LCU-1SE Smart Liquid Control Unit

Smart liquid control unit designed for Z-1200II, S-100X, S-200X and SW-250 machines

Write a review Write a review

224.50 €

(VAT excluded)

Pay in 4 interest-free payments of 56.13 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

224.50 €

Condition

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

Le Maitre - 1906

65.00 €

(0)

Write a review Write a review

Mini Mist Ducting Hose that allows you to lead the smoke where necessary with simplicity and precision

Le Maitre - 4012

43.50 €

(0)

Write a review Write a review

Practical and lightweight ducting adaptor for the GFORCE smoke machines

Antari - FX-4 Flight Case

148.50 €

(0)

Write a review Write a review

Flight case for 2 x Antari Z-1520E fog machine

Le Maitre - 2938

124.00 €

(0)

Write a review Write a review

Link lead cable to connect the G300 smoke machine to each other, lenght 15 m

Le Maitre - 2941

217.50 €

(0)

Write a review Write a review

G300 Standard Remote Unit for the G300 smoke machine, max. cable lenght 30 m

Le Maitre - 2942

391.00 €

(0)

Write a review Write a review

G300 DMX Remote Unit that allows to control the G300 smoke machine via 2 DMX channels

EN Instruction manual (8.18MB)

NO DESC

Documentation

EN Instruction manual (8.18MB)

NO DESC

Documentation

Product Details

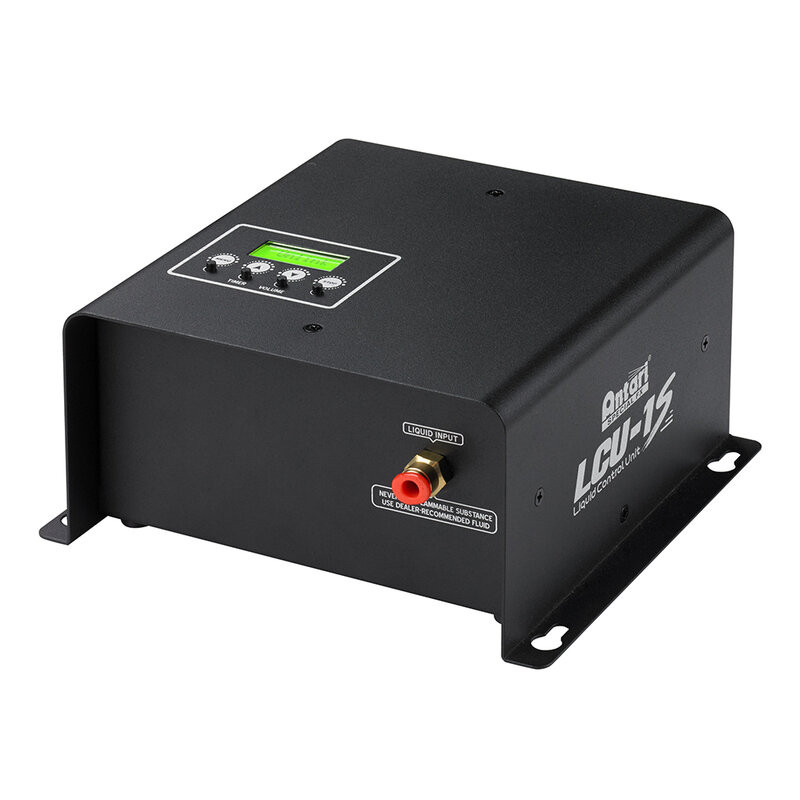

Antari LCU-1S is an intelligent liquid control unit with an LCD panel that allows users to easily read and set parameters.

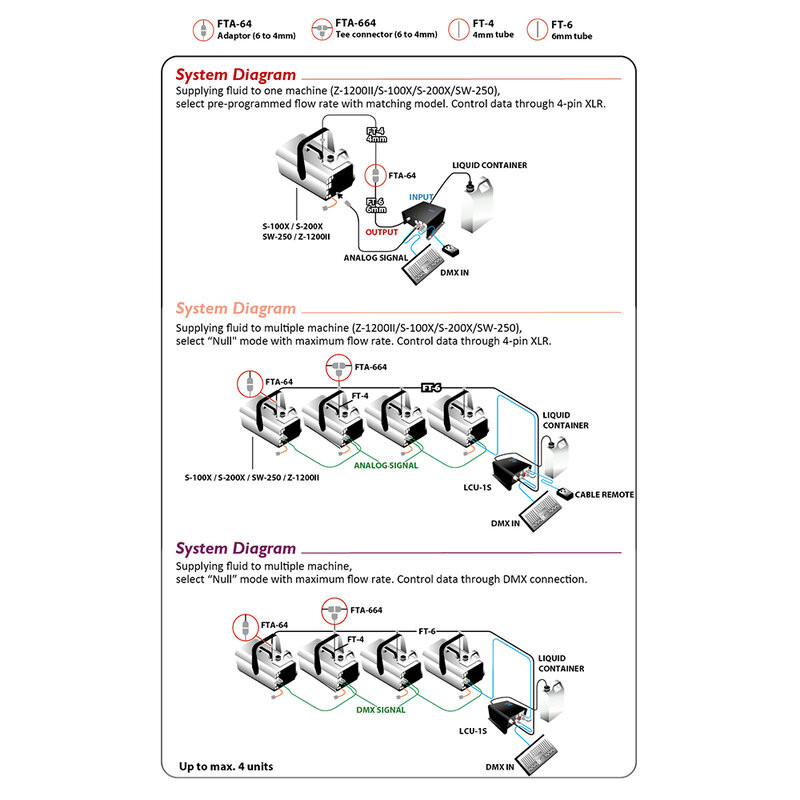

It is pre-programmed for use with the Z-1200II, S-100X, S-200X and SW-250, with a regulated flow rate to supply liquid to one unit at a time. A “Null” option offers versatility for use with any model, running the pump at 100% capacity and allowing up to four units to be supplied at once.

The LCU-1S can supply liquid up to a distance of 35 meters or a height of 12 meters and is designed to meet most remote liquid supply applications. The nominal power is 40 W and consumption is 400 mL/min. It is compatible with Antari fluids and can be controlled manually, by timer or by DMX 512 using one DMX channel.

Main features

Can supply 4 units at the same time (max.)
DMX control
Supply fluid 35 m horizontal and 12 m vertical at maximum

Technical characteristics

Rated voltage	220 - 240 V_AC 50/60 Hz 0.5 A
Rated power	40 W
Fluid consumption	400 mL/min (100% output)
Ambient temp. range	5 to 40 ℃
Control	manual, timer, DMX 512
DMX channels	1 channel

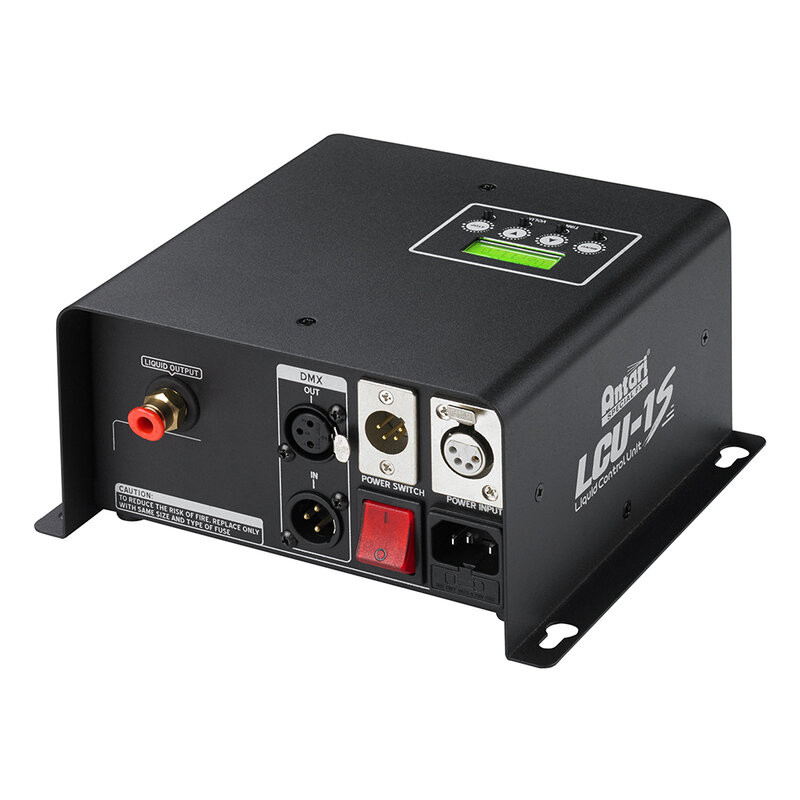

Connection	IEC (power), XLR 3-pin (DMX), XLR 4-pin (remote)
Optional accessories	Z-8 remote control, SC-2 remote control
Dimensions (L x W x H)	20.3 x 17.9 x 9.6 cm
Weight	3.3 kg
