Built with the latest RTI Semiconductor Laser Module technology!

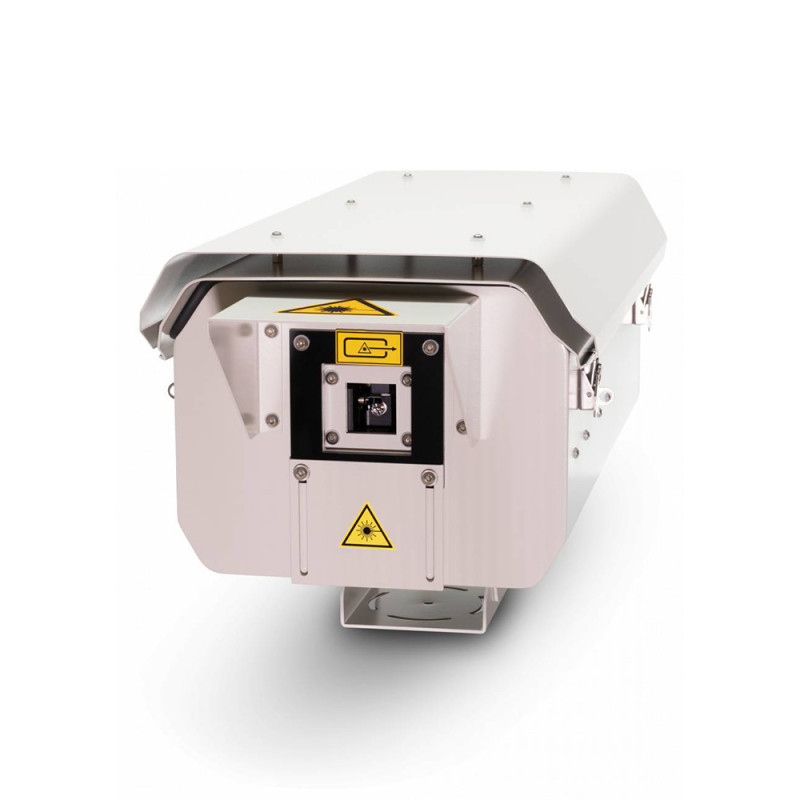

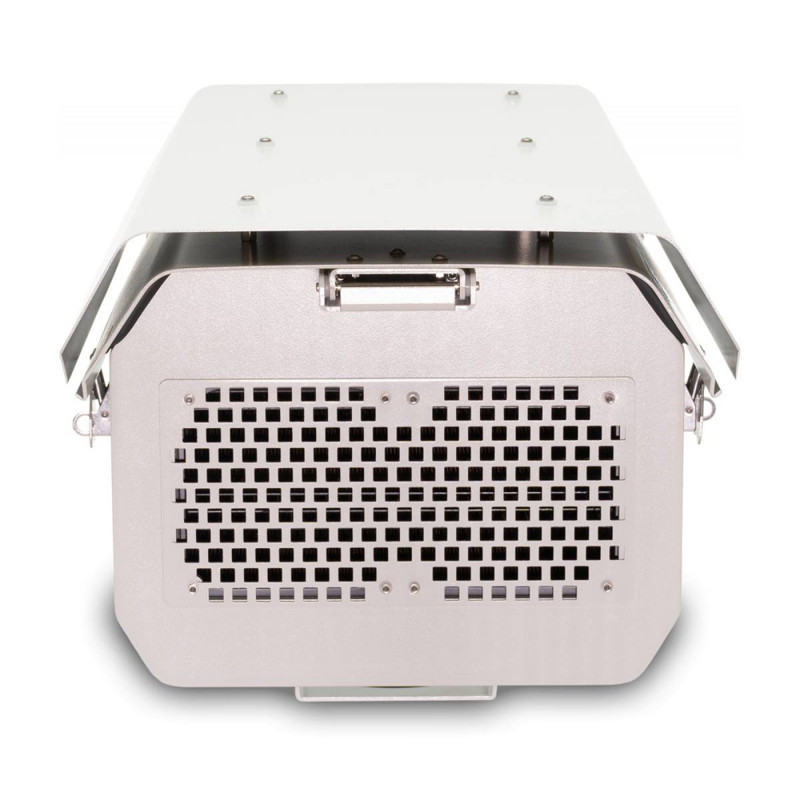

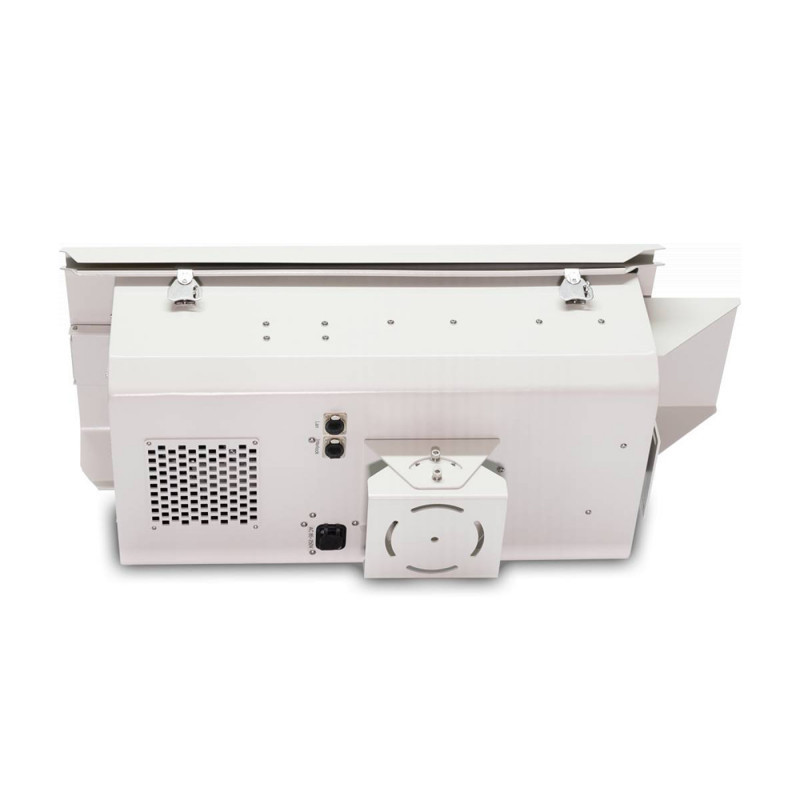

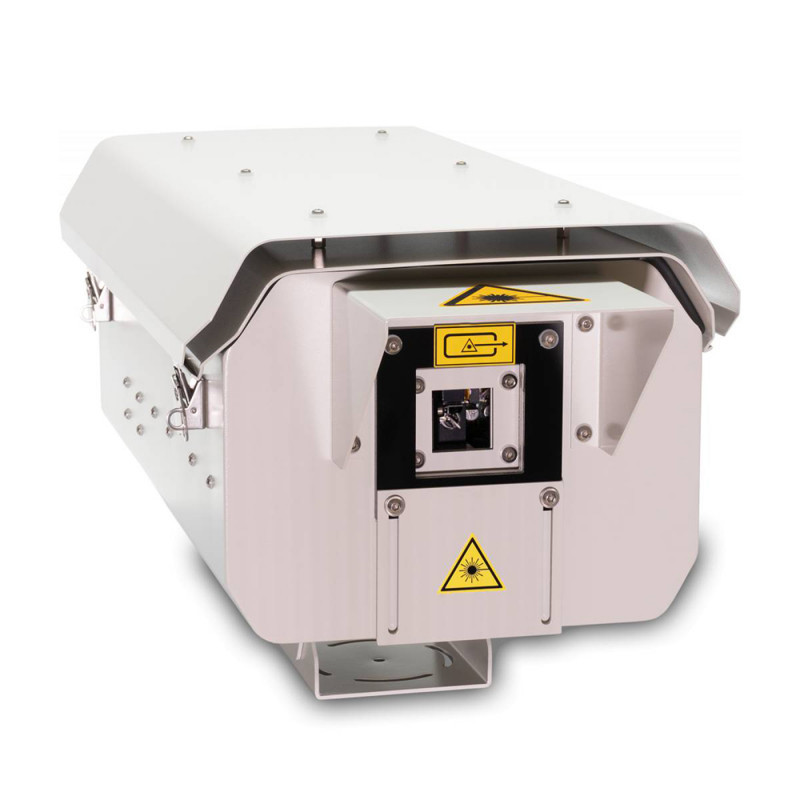

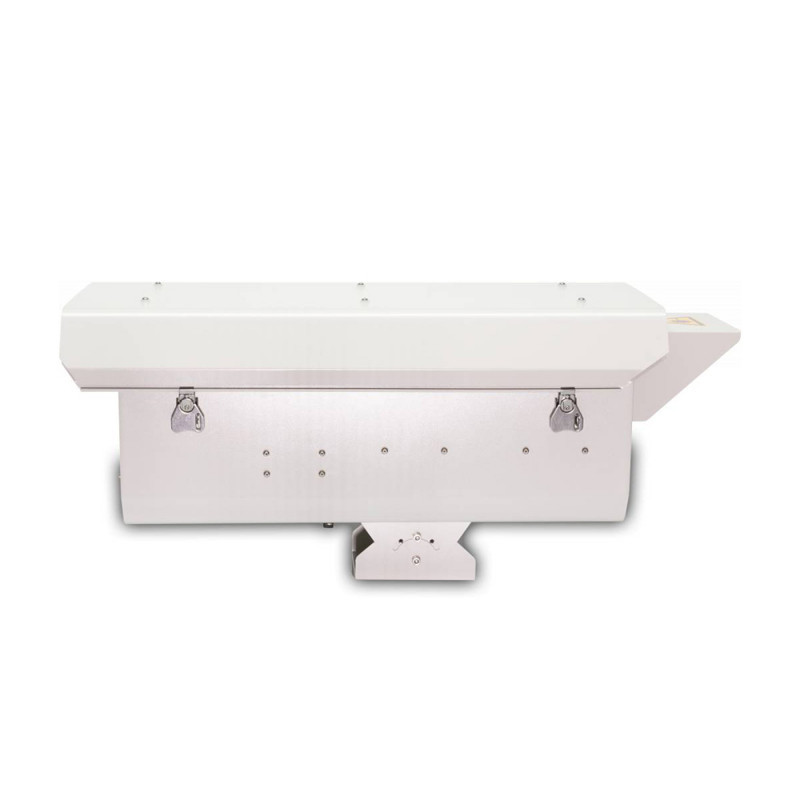

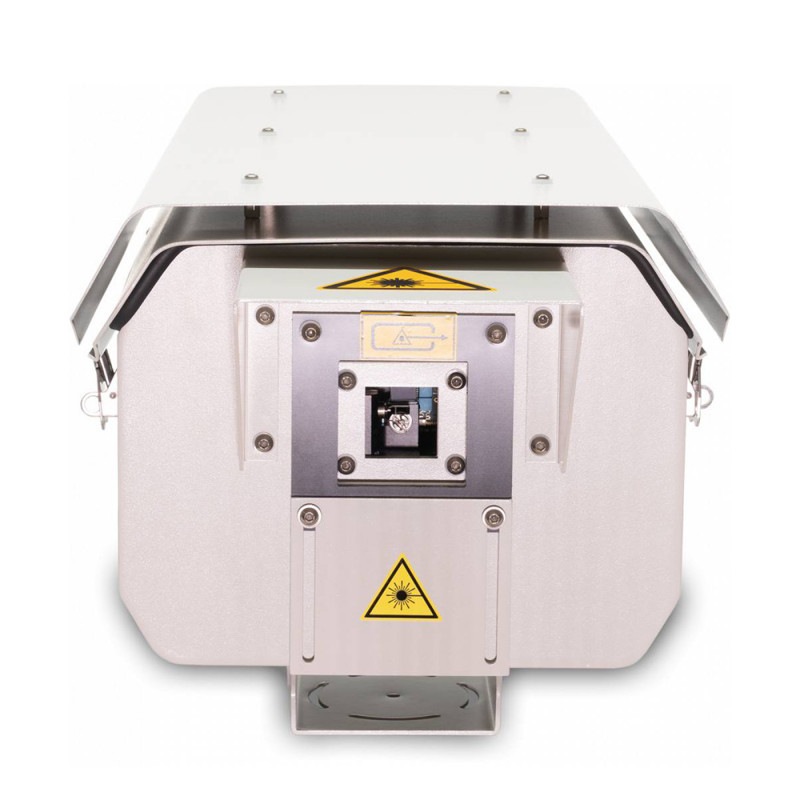

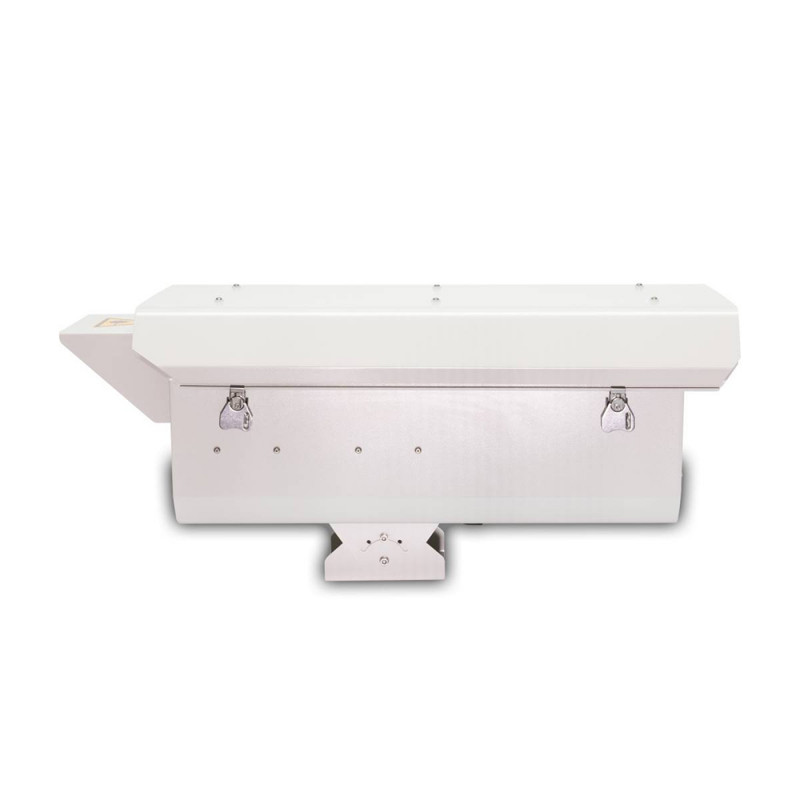

The tarm 13 OUTDOOR are especially designed for outdoor laser installations. They come equipped with the top quality laser setup known from the standard tarm units, but have a waterproof enclosure that not only protects the components inside from water, but also shields off direct heat from solar exposure. A specially designed roof in front of the output window prevents it from getting impacted by direct rain.
To cope with varying temperatures, the tarm OUTDOOR units are equipped with an active watercooling system, that is built into the housing. An active heating system helps to keep the laser systems operational even at low temperatures. Thus the tarm 13 OUTDOOR lasers can be used at environmental temperatures between -10°C and +45°C. A CT Scanner upgrade with LAS Turboscan drivers is available for the tarm 13 OUTDOOR to achieve top end quality graphics results.
The tarm 13 OUTDOOR is made in Germany and is a compact show laser system that is ideally suited for top professional laser show applications of any kind. It is built with the latest RTI semiconductor laser modules that are specially designed in a way to keep spot size as well as divergence equal on both x- and y-axis. This is significantly advantageous over solutions with a very good divergence on one axis, but a bad divergence on the other. The laser modules inside the tarm 13 OUTDOOR are different - the spot size and shape is equal for all colors and on both axis!
The beam specifications of the new tarm 13 OUTDOOR are given with only ca. 5.0 mm diameter and <0.8 mrad divergence - which applies to both axis. The extremely small beam diameter allows for the use of very small mirrors, which results in reduced inertia and thus very good scanning performance.
- 13 W total RGB power in a small housing of only 800/370/260 mm
- super small spot of ca. 5.0 mm for reduced inertia and thus fast scanning
- All wavelengths matched in divergence and beam size
- extremely low divergence of <0.8 mrad - on both axis!
- Different, brighter wavelengths for increased visibility
- brilliant colors and great color fading
- Laser modules do not come out of internal alignment
- Maintenance free laser modules
- High quality product, Made in Germany
- Great scanning performance suitable for projections as well as for beams
The tarm 13 OUTDOOR impresses with a guaranteed RGB output power of 13'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser modules (RSL) with special wavelengths for increased visibility: 4'000 mW / 637 nm for a very bright red combined with 5'800 mW / 525 nm green and a strong blue laser module with 5'000 mW / 455 nm. The 525nm green provides a warmer green tone than the 520nm diodes and has increased visibility.
These new RSL modules with their extremely low divergence and homogenous beam shape make the tarm 13 OUTDOOR a top professional laser system. The extremely small beam diameter of only ca. 5.0 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the tarm 13 OUTDOOR can be used for any kind of laser show application: Super sharp beams and vivid colors for installation projects and multimedia, especially for crisp graphics.
The RTI Semiconductor Laser modules are maintenance free and do not come out of internal alignment.
The standard scanners can be run at a maximum of 45kpps @ 8° ILDA and a maximum scan angle of 50°. CT-6210 scanners with LAS Turboscan drivers are available as option and provide even higher scan speeds with up to 60kpps at 8° ILDA .
Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.
INCLUDING SHOWNET LASER MAINBOARD
The tarm 13 OUTDOOR is delivered with a ShowNET laser mainboard as standard. This means it has a multitude of control features already built-in: Control via ArtNET, just like a normal lighting fixture, are possible as well as computer control via ILDA or LAN. Of course the laser can be run in stand alone operation, too. The contents for playback (for ArtNet, Stand-Alone, etc.) can be fully customized. As the ShowNET laser mainboard comes with a full license of the Showeditor software, it is easy to create custom content for the built-in memory or even directly control the laser with a computer - either live or for creation an playback of complete laser shows.
If ILDA shall be used as control option, like from an external Lasergraph DSP, the internal ShowNET mainboard can also be used as receiver for an ILDA streaming signal - so the external ILDA signal can be feeded to an external ShowNET device and this sends the direct control to the tarm 13 OUTDOOR via ILDA Streaming - so no long ILDA cables are required any more, even with ILDA based control systems.
- Guaranteed Power at aperture: 13'000 mW
- Power Red: 4'000 mW / 637 nm
- Power Green: 5'800 mW / 525 nm
- Power Blue: 5'000 mW / 455 nm
- Beam Specifications*: ca. 5.0 mm / <0.8 mrad
- Scanner: 45kpps @ 8° ILDA; optional CT-6210 with LAS Turboscan: 60 kpps@8° ILDA, max. 60°
- Max. Scan Angle: 50°
- Laser Source: RSL modules
- Laser Class: 4
- Operation Modes: LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone; integrated intelligent ShowNET laser mainboard with display
- Basic Patterns: over 120 (layers, tunnels, fences, waves, etc.)
- Accessories: Incl. power cable, manual, E-Stop, interlock connector, full version Showeditor software license included
- IP rating: IP65
- Power Supply: 85 V - 250 V / AC
- Power Consumption: 400 W
- Dimensions: 800/370/260 mm
- Weight: 24.0 kg
