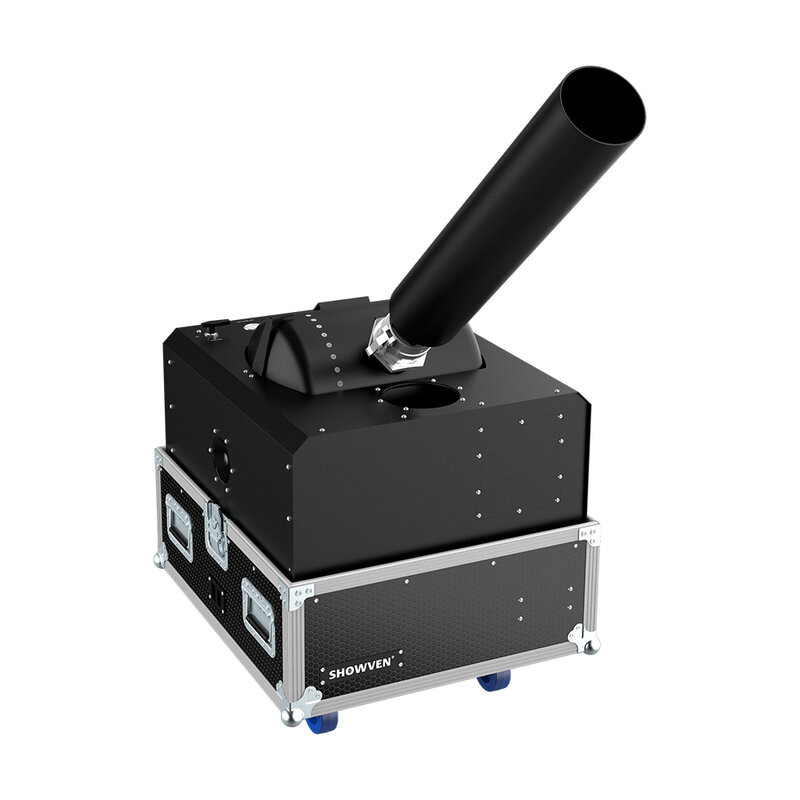

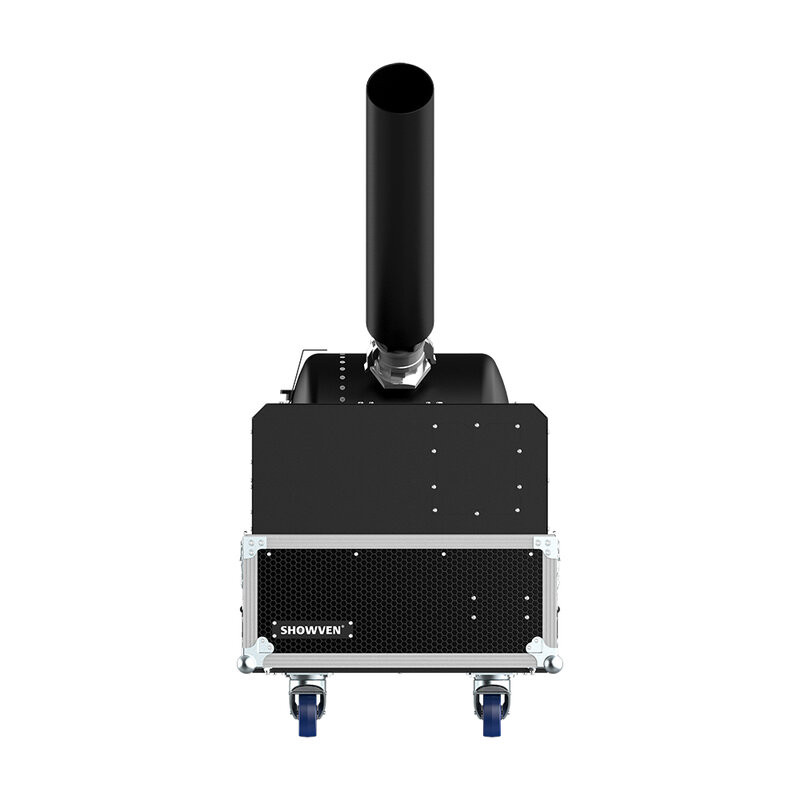

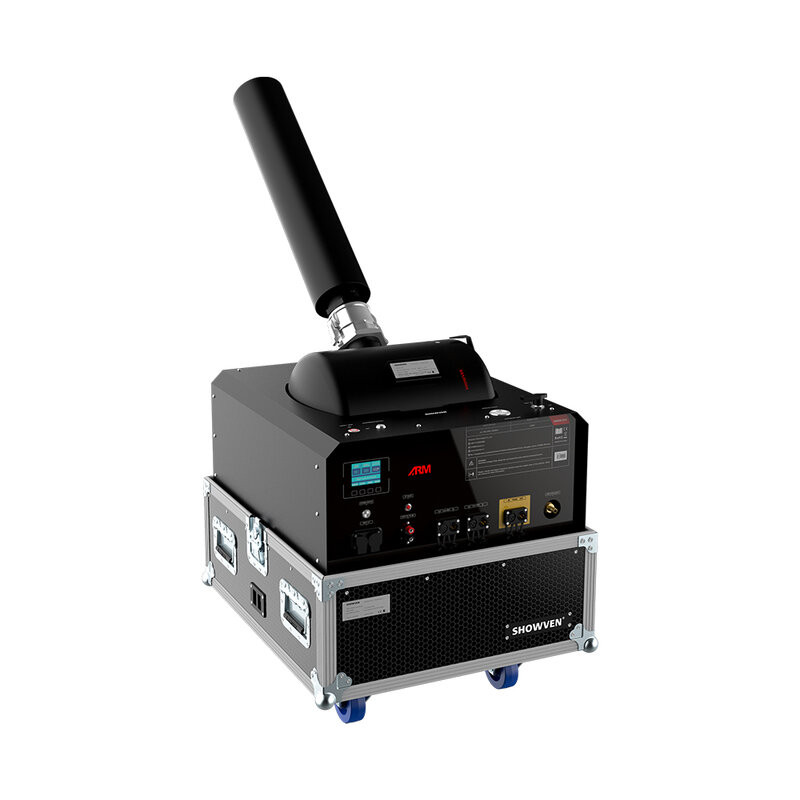

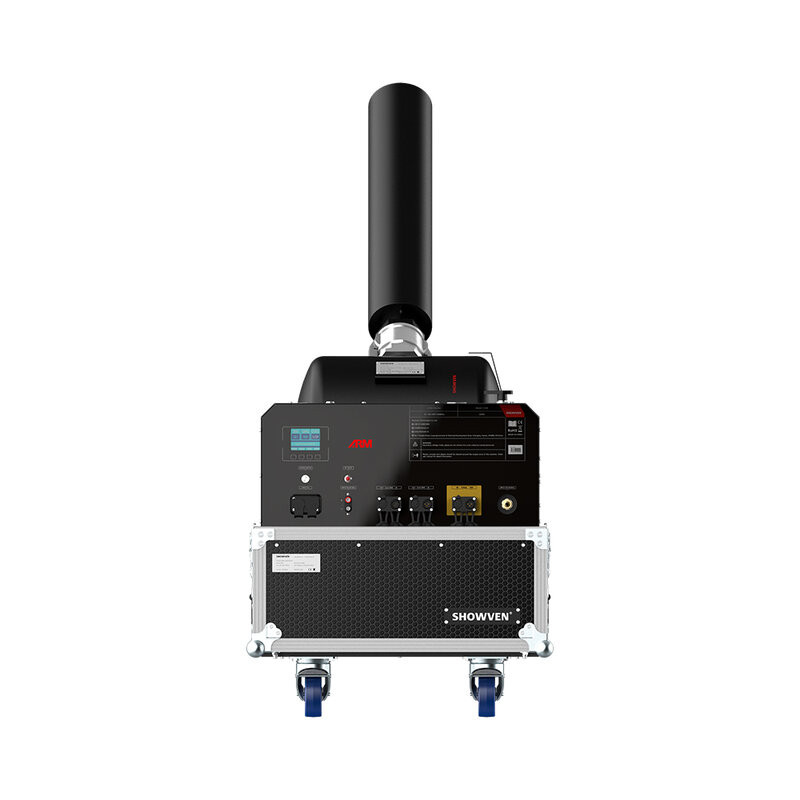

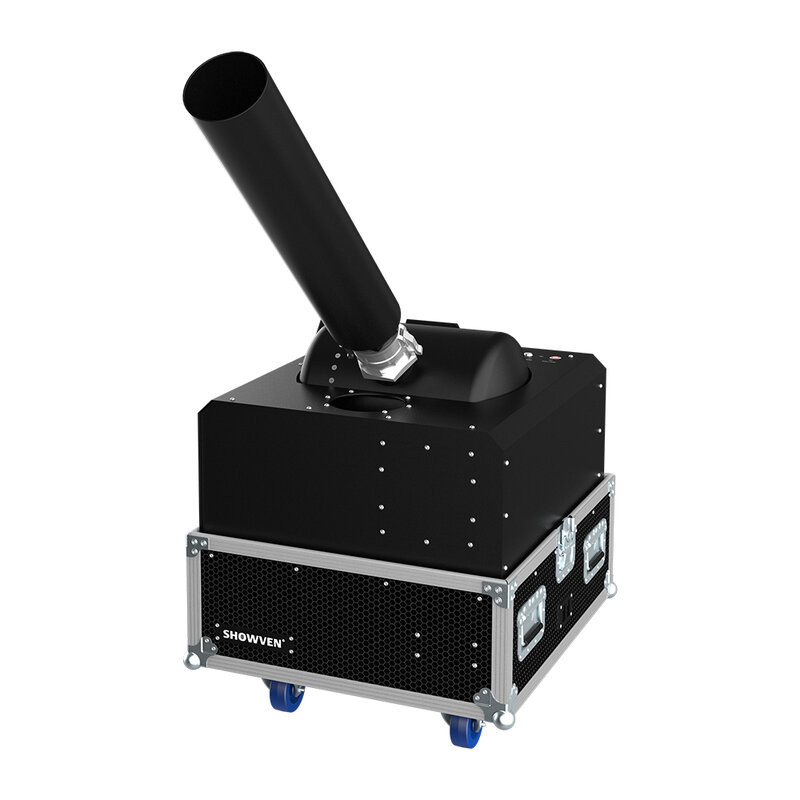

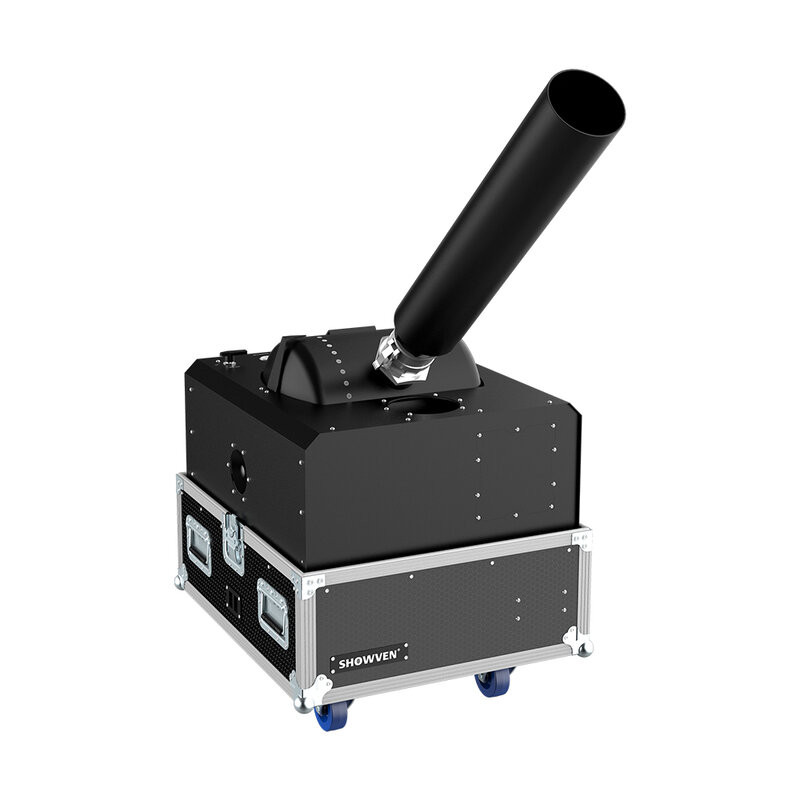

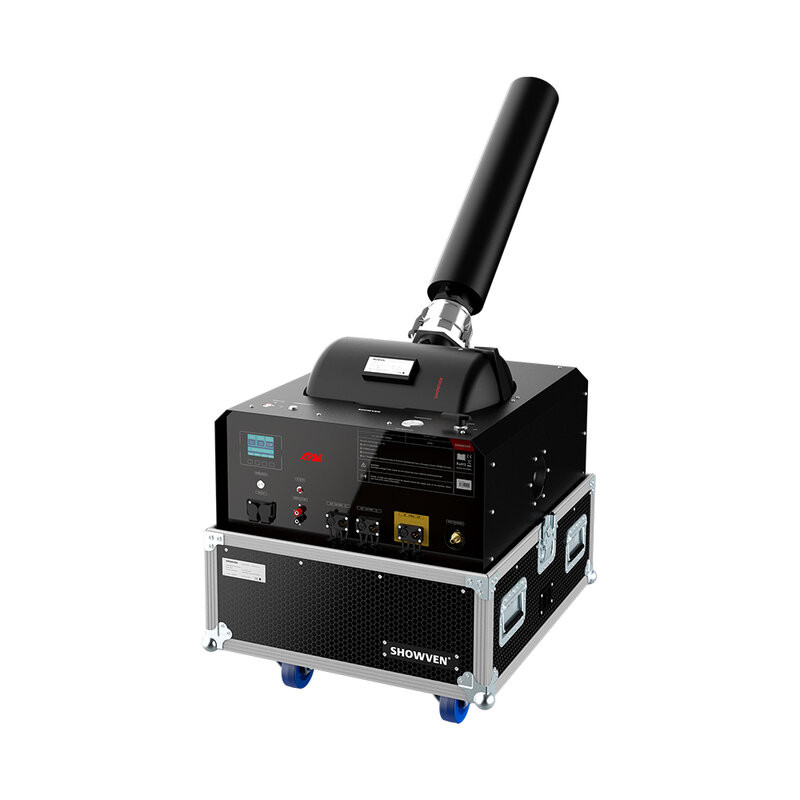

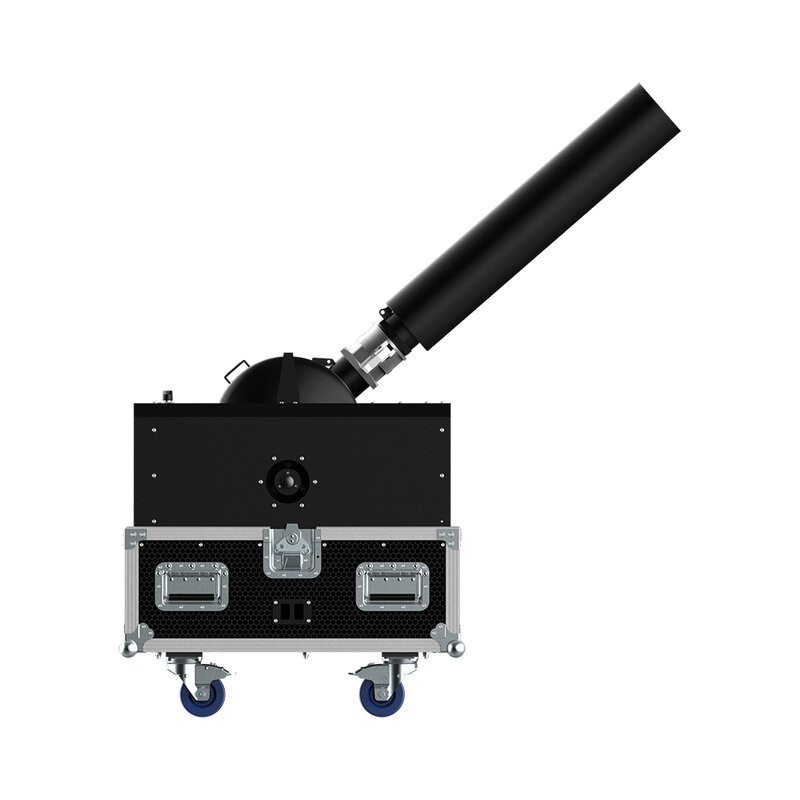

Sparkular uFetti Shooter CA36

Confetti / streamer machine that runs on compressed air, with a built-in air compressor making it easy to use in stadiums, combined with the PyroSlave firing system for interference-free wireless control. No DMX cables required.

For faster tank pressurization, the external air coupling connector can be used so the operator can use their own air compressor to fill the tank.

Main features

• 10 L large capacity stainless steel launch pipe with self locking coupler
• Throw up to 45 m (streamers) and 22 m (confetti) when fully loaded
• PED certified stainless steel tank
• Stainless steel launch tube and connectors
• Built-in air compressor with external air coupling connector available
• Emergency stop connector, ARM light, safety switch etc.
• Multiple safety configurations: cascadable power cut-off E-stop connector, ARM indicator light, safety switch etc.
• Touch screen
• 24 V pyro signal port, 3-pin or 5-pin DMX
• Adjustable pressure up to 8 bar
• Digital and mechanical pressure display

Max. output distance

The output distance (X), width (Y) and height (Z) depend on the type of confetti / streamers, the output angle,
setting pressure etc.

The above parameters are test parameters with SHOWVEN original confetti under ideal conditions with no wind, the output pipe is set at 41°, and the test pressure is 8 bar.

 N.B. For confetti / streamers not from SHOWVEN may not achieve the expected results or even cause property damage.

Technical characteristics

• Input and power: 200 - 240 V_AC 50/60 Hz, 220 W
• Confetti pipe capacity: 10 L
• Output: up to 45 m (20 m x 5 cm streamer), up to 23 m (metallic confetti)
• E-stop connector: yes, can be connected in series
• Control: DMX, wireless DMX (via 5-pin DMX IN）
• Interface: 3-pin and 5-pin XLR, powerCON TRUE 1
• Output angles: -27 to 41° (12 adjustable angles)
• External air compressor connector: yes
• Pressure tank volume: 36 L
• 4 casters with brake
• Valve size: 3"
• Dimensions: 73 x 64.5 x 88 cm with casters
• Weight: 90 kg
