Sparkular - uFlamer

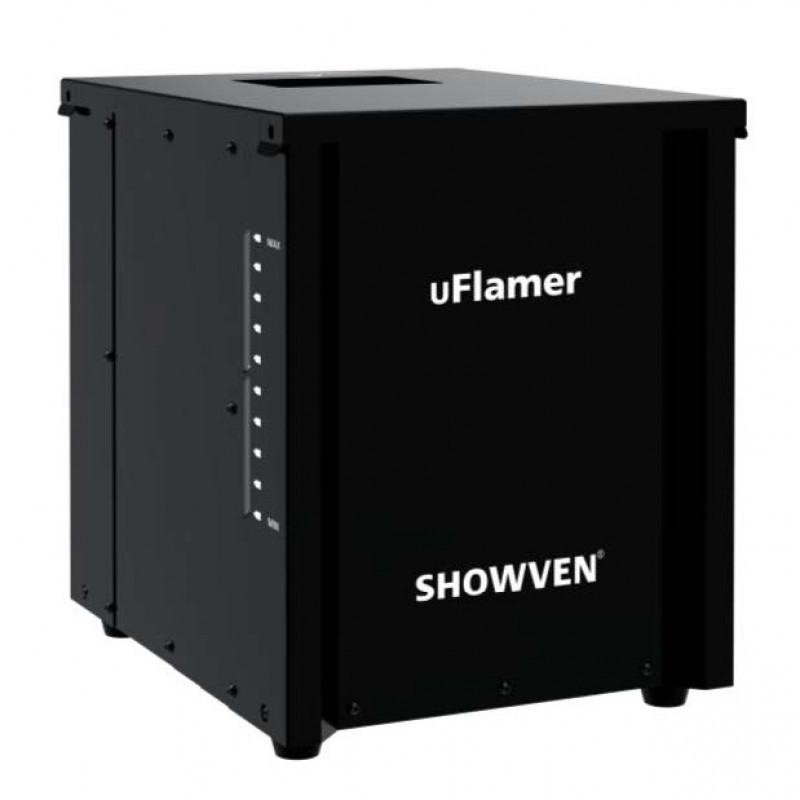

uFlamer

Name: uFlamer
Brand: Sparkular

SKU: U-FLAMER

EAN:

Vertical fluid driven flamer, with flame height up to 8-10m

uFlamer is a global pioneer of vertical fluid driven flamer, with flame height up to 8-10m. Equipped with built-in fuel tank and pumping system makes it super easy to setup and operate. The fuel for uFlamer is ISOPAR, which is much safer as well as less restrictions comparing with existing gas flamers on the market.IPX3 rated design and indoor nozzle optional ensure flexible usage of uFlamer.

more info

All payments are 100% secure
Only the best products on the market
Contact us if you need more info

Product details

Fluid driven vertical flamer original designed by SHOWVEN
Flame up to 8-10m (no wind)
Super compact pumping system design, easy carrying
Stainless steel housing, reliable and durable
IPX3 waterproof design
Built-in 5L fuel tank, equals to 83s effects. Support external tank
No external hose connection needed, easier for setup
Safety lock with switchable test mode, safer for service
Tilt protection, the tilt sensor will be activated when machine slant Over 45°.
Intelligent control system, safer for use
Standard DMX control, compatible with all DMX console
Machine running status monitoring with SHOWVEN host controller
Built-in battery design (Optional)

Dimension	330 x 260 x 320 mm
Weight	14 Kg
Input and Power	100-240VAC, 50/60 Hz 300W
Housing Material	304 stainless steel
Effect Direction	Vertical
Flame Height	8-10m (no wind)
Fuels	ISOPAR G, H, L, M ISOPROPANOL
Fuel Tank Capacity	5.0L
Fuel Consumption Rate	Nozzle M: 60ml/s

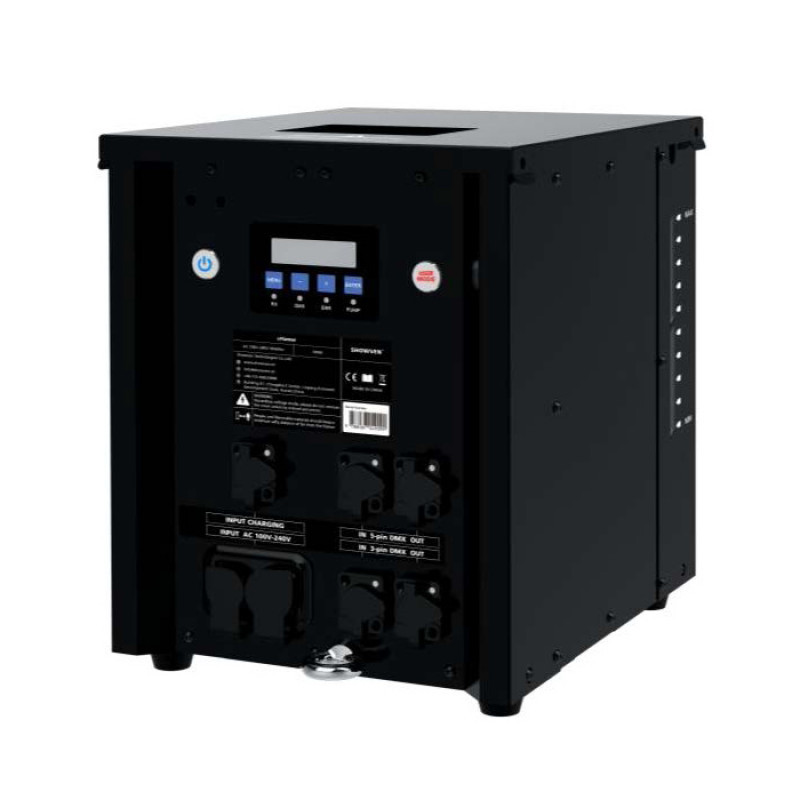

Interface	NEUTRIK POWERCON TRUE1 IN/OUT Waterproof 3-pin and 5-pin XLR IN/OUT
Control	DMX
Ignition	High Voltage Electron Ignition
Ignition Built-in Battery Design	Yes, Battery Optional
Waterproof Level	IPX3
