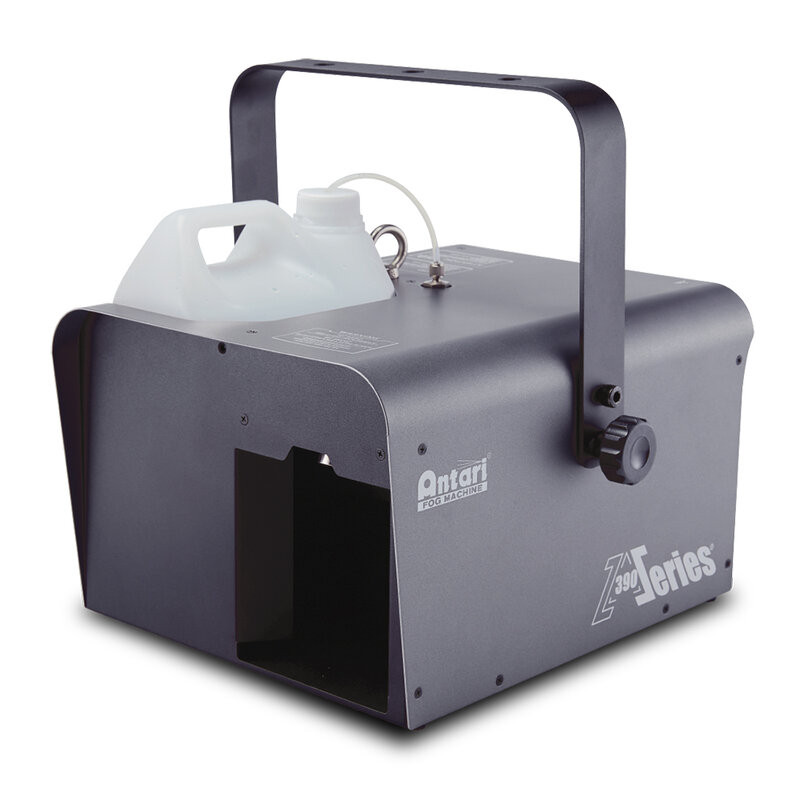

The Antari Z-390E is a compact and powerful fazer working with water-based liquid, designed for installation in discos, theaters or for mobile use.
It uses a 4 liter fluid tank, which allows up to 8 hours of continuous operation at maximum power. It features a built-in self-cleaning system that ensures reliable operation day after day.
Control options include a built-in electronic timer, DMX, manual control and optional wireless control. The European model operates on a voltage of 220 - 240 VAC and is rated at 1450 W. Warm-up time is approximately 1.5 minutes and fluid consumption is 8 mL per minute.
Main features
- LCD display with tactile buttons
- 2 rotary control knobs
- Larger output
- Self-cleaning function
Technical characteristics
| Rated voltage |
220 - 240 VAC 50/60 Hz 6.5 A |
| Rated power |
1450 W |
| Warm-up time |
1.5 min (approx.) |
| Fluid consumption |
8 mL/min (100% output) |
| Fluid tank capacity |
4 L |
| Operating time |
8 hrs (100% output) |
| Ambient temp range |
0 to 40 ℃ |
| Control |
manual, DMX 512, timer, wireless (optional), cable remote (optional) |
| DMX channels |
2 channels |
| Connection |
IEC (power), XLR 3 and 5-pin (DMX) |
| Included accessories |
hanging bracket |
| Optional accessories |
Z-3 cable remote, WTR-20 wireless remote |
| Dimensions (L × W × H) |
36.8 × 34 × 34.4 cm |
| Weight |
9.7 kg |
