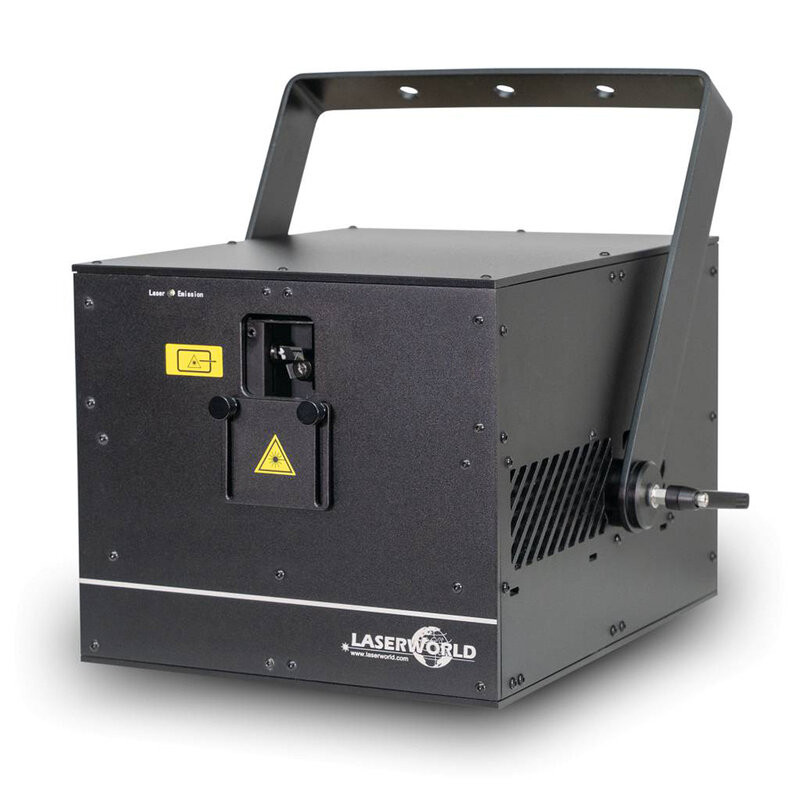

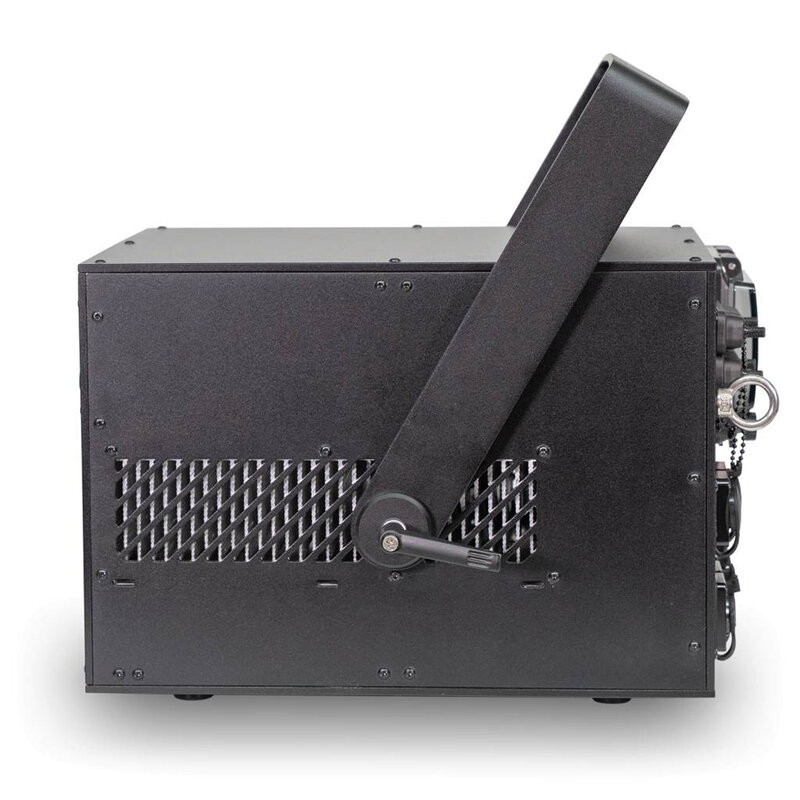

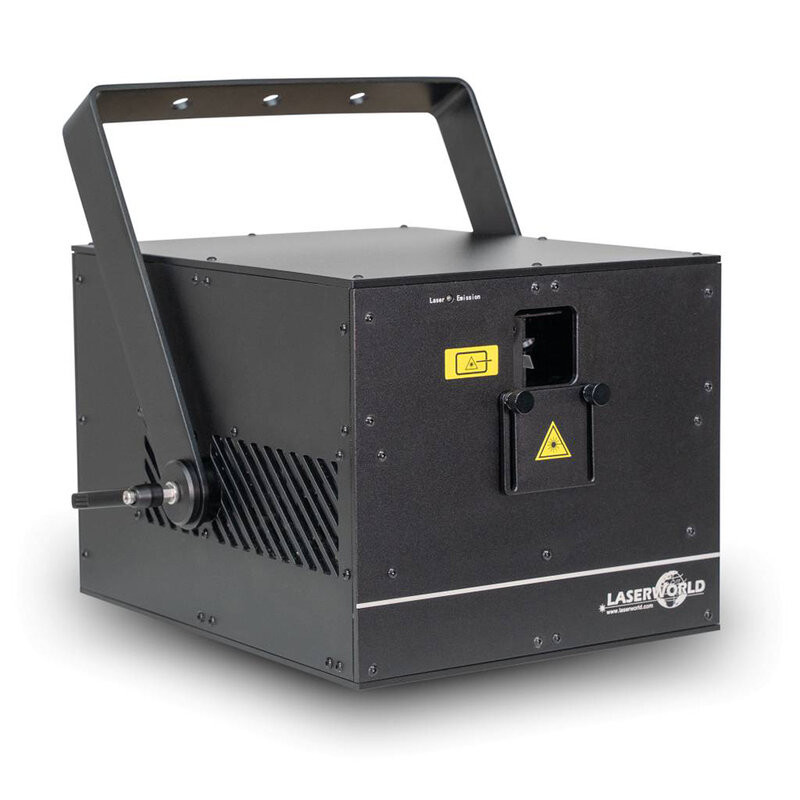

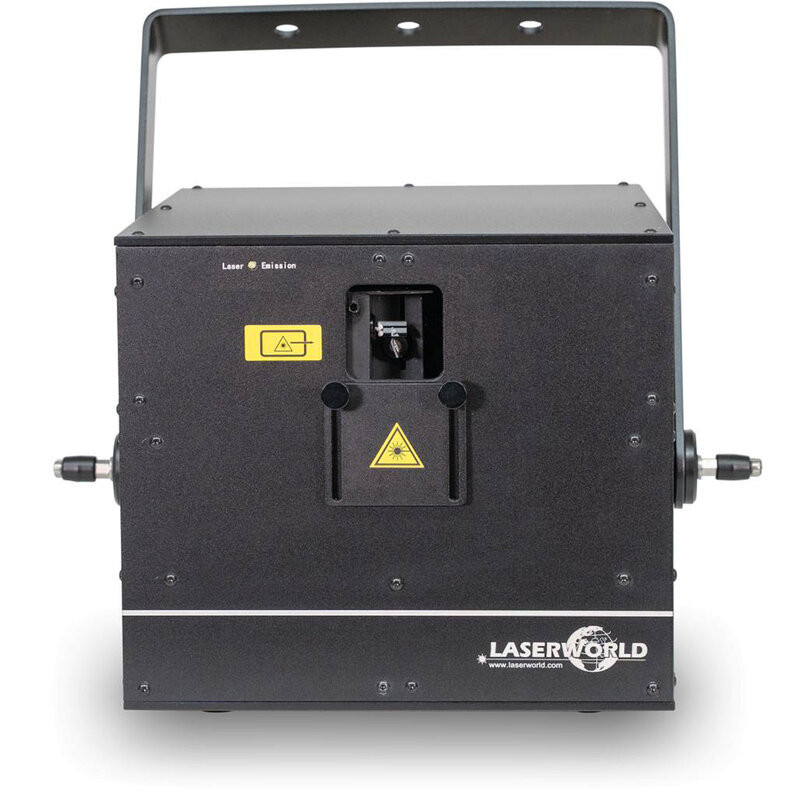

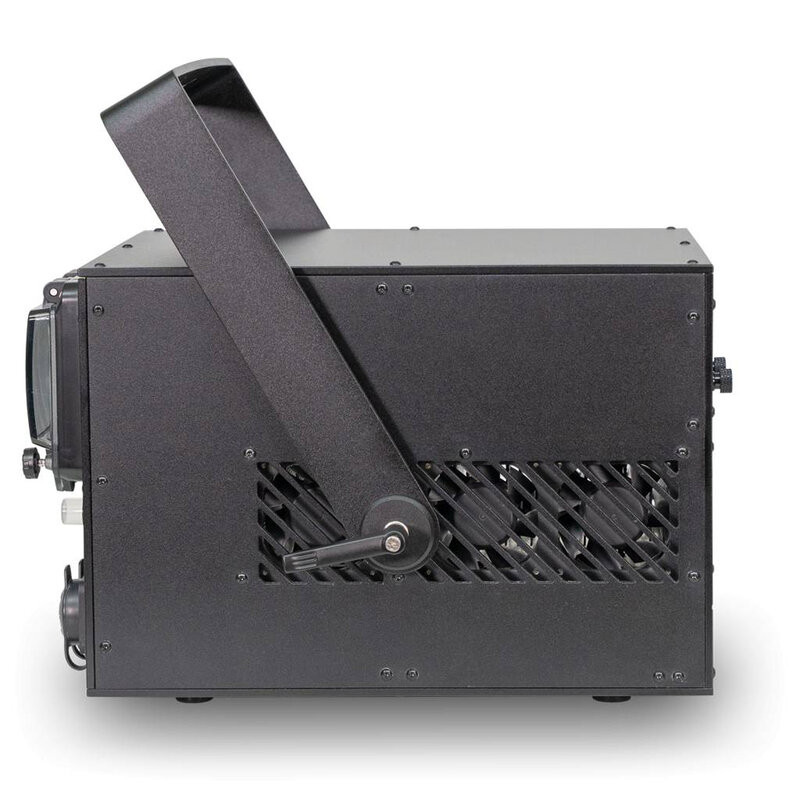

Laserworld DS-15.000 IP65 FB4

The DS-15.000 FB4 IP65 is a professional 15,000 mW RGB laser system, designed for medium-sized events and outdoor applications thanks to its IP65 rating. The all-diode laser source offers intense color rendering and an extremely sharp beam, with specifications of approximately 5.5 mm / 1.1 mrad, ensuring high visibility even over long distances.

The system natively integrates the Pangolin FB4 interface, which allows control via DMX, Art-Net, LAN, and software such as QuickShow and BEYOND. Effects and animations can be loaded directly into the internal memory and recalled via DMX/Art-Net, allowing live adjustments of color, position, and additional effects.

The 30 kpps @ 8° scanners and a wide maximum scanning angle of 50° make the DS-15,000 FB4 IP65 suitable for projecting graphics, logos, text, and complex effects. The completely sealed design minimizes maintenance, making it ideal for permanent installations and intensive outdoor use.

User benefits

• High power output of 15,000 mW with saturated colors and high visibility
• IP65 housing for outdoor use and low maintenance
• Integrated Pangolin FB4 interface with DMX, Art-Net, LAN control, and QuickShow / BEYOND software
• Internal memory for shows and effects recallable via DMX or Art-Net
• 30 kpps scanner with wide aperture up to 50°
• Suitable for projecting graphics, logos, text, and complex effects

Areas of use

• Outdoor events and festivals
• Medium-sized live productions
• Permanent outdoor installations
• Clubs and venues with high-power requirements
• Logo projections and laser mapping
• Multimedia shows

Technical characteristics

• Guaranteed power at aperture: 15,000 mW
• Red output: 4000 mW / 638 nm
• Green output: 4500 mW / 520 nm
• Blue output: 8000 mW / 450 nm
• Beam specifications: approx. 5.5 mm / 1.1 mrad
• Scanner: 30 kpps @ 8°
• Max. scan angle: 50°
• Laser source: diode
• Laser Class: 4

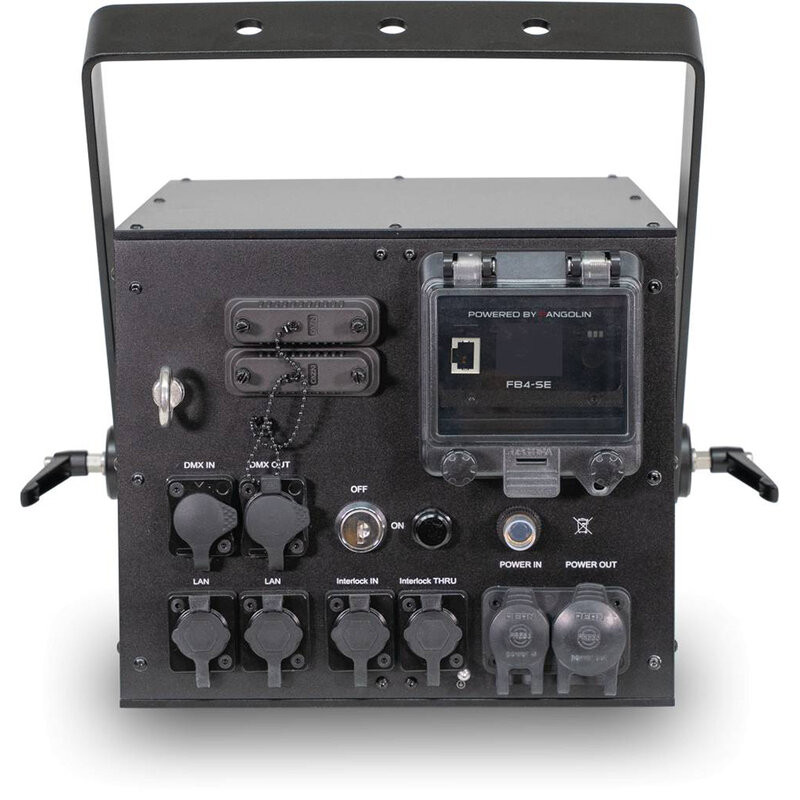

• Operation modes: ILDA, DMX, Art‑Net, LAN, integrated SD card, stand‑alone
• Basic patterns: available for download
• Integrated control: Pangolin FB4 (QuickShow included, BEYOND‑ready)

• IP rating: IP65
• Power supply: 85 – 250 V_AC 50/60 Hz
• Power consumption: 120 W

• Dimensions (L x W x H): 29.2 x 23.2 x 20.1 cm
• Weight: 11.5 kg
• What's in the box:
  • Laserworld DS‑15.000 FB4 IP65
  • Key
  • Interlock dongle
  • Power cable
  • Manual
