Laserworld Laserworld CUBE 1

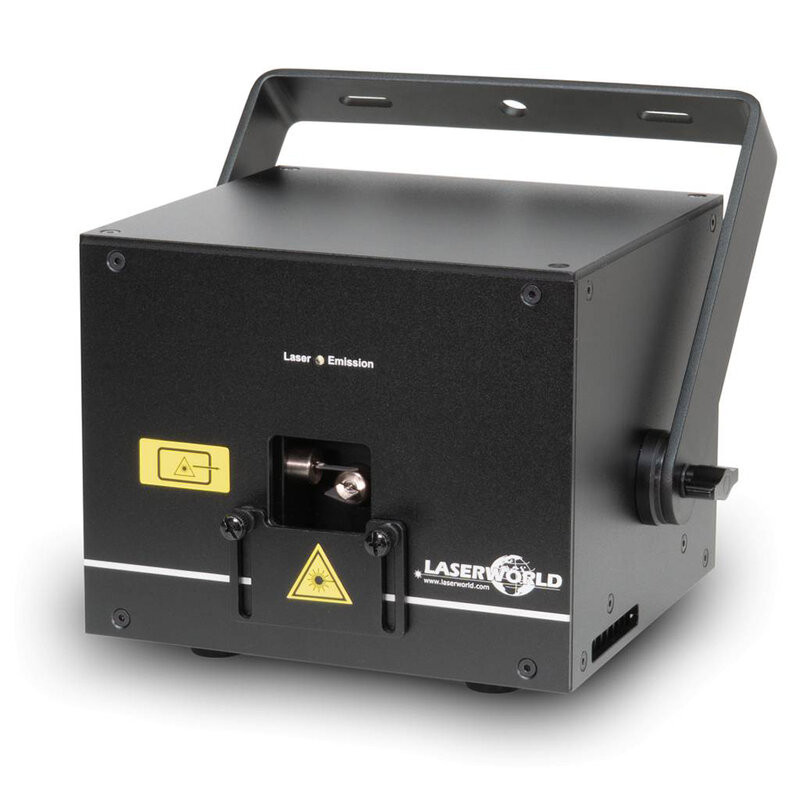

The Laserworld CUBE 1 is a compact and lightweight 1000 mW RGB diode laser system designed for semi-professional applications.

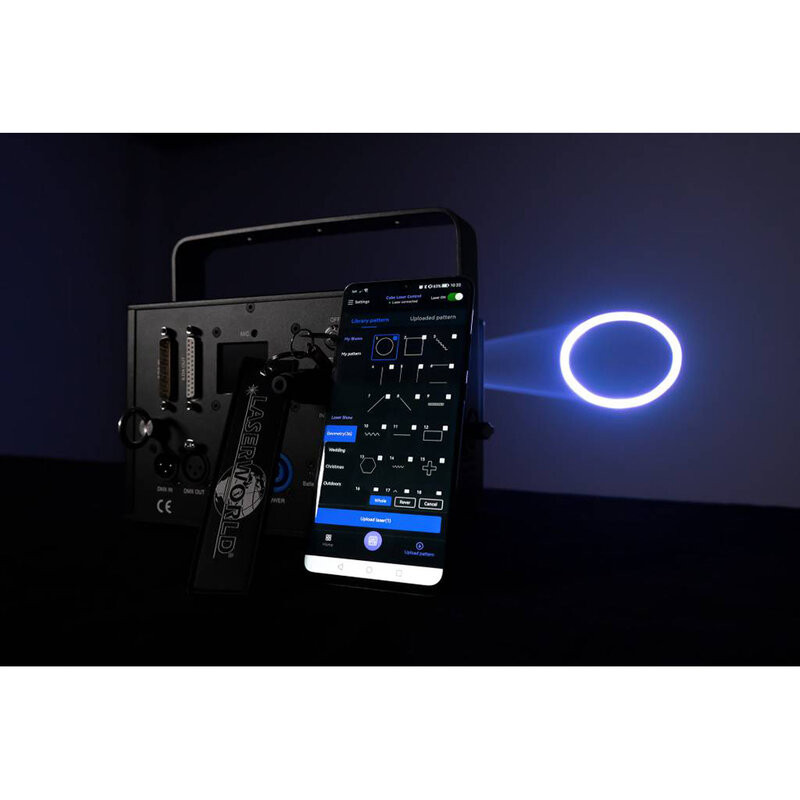

One of its key features is control via a dedicated mobile App, developed specifically by Laserworld for the CUBE series. This app allows you to select, create, and manage laser shows directly from your smartphone or tablet with an intuitive interface. The device can be controlled via DMX and used in stand-alone, sound-to-light, Master/Slave mode with other CUBE 1s, or via an ILDA interface for computer control, including the ability to project logos, text, and custom graphics.

Its total power of 1000 mW, combined with analog modulation and laser sources of 200 mW for red, 300 mW for green, and 600 mW for blue, allows for brilliant colors and intense beams, with good beam quality: approximately 3 mm in diameter with a divergence of 1 mrad. The system integrates a graphic scanner up to 25 kpps @ 8°, ideal for effects such as tunnels, waves, grids, levels, and simple animations, with over 250 preset patterns that can be controlled automatically, in music mode, or via DMX.

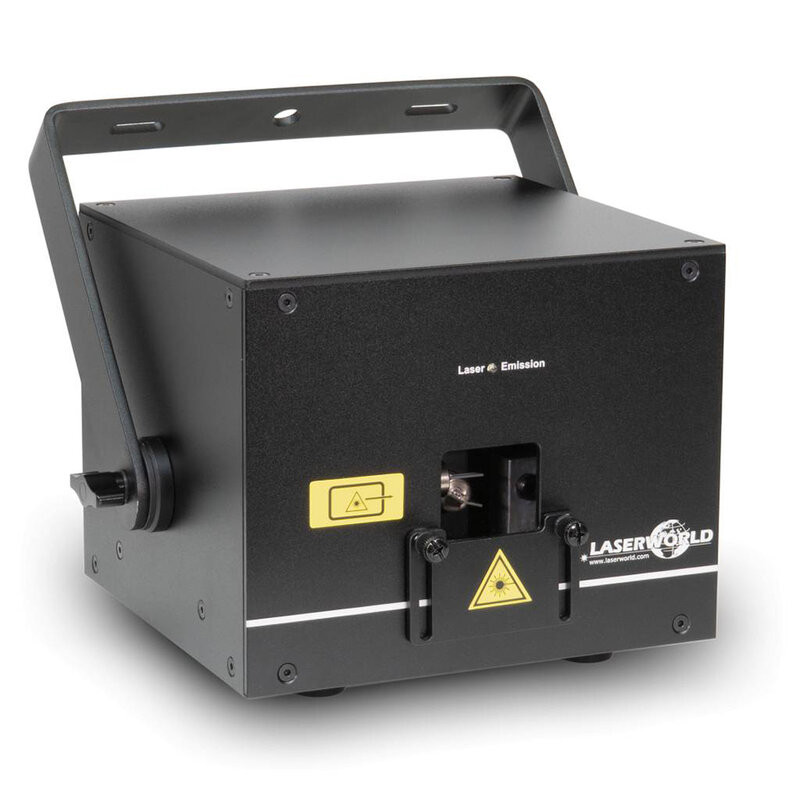

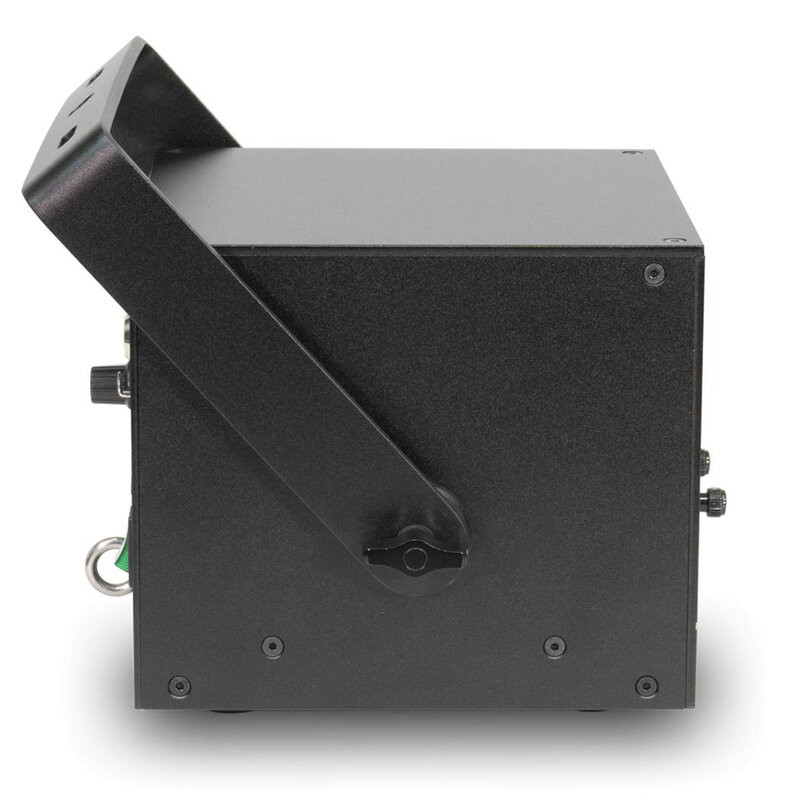

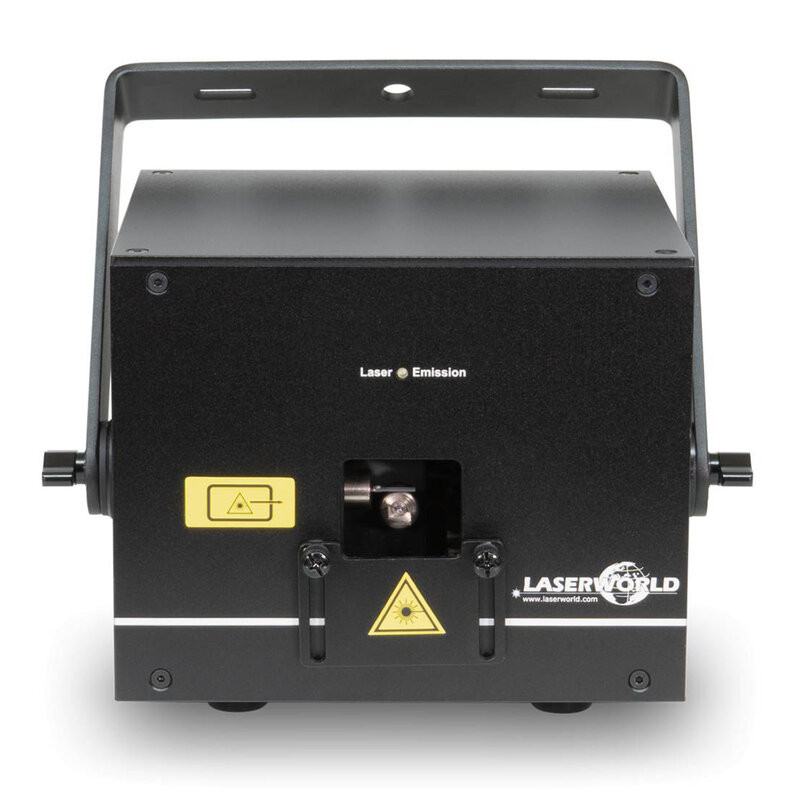

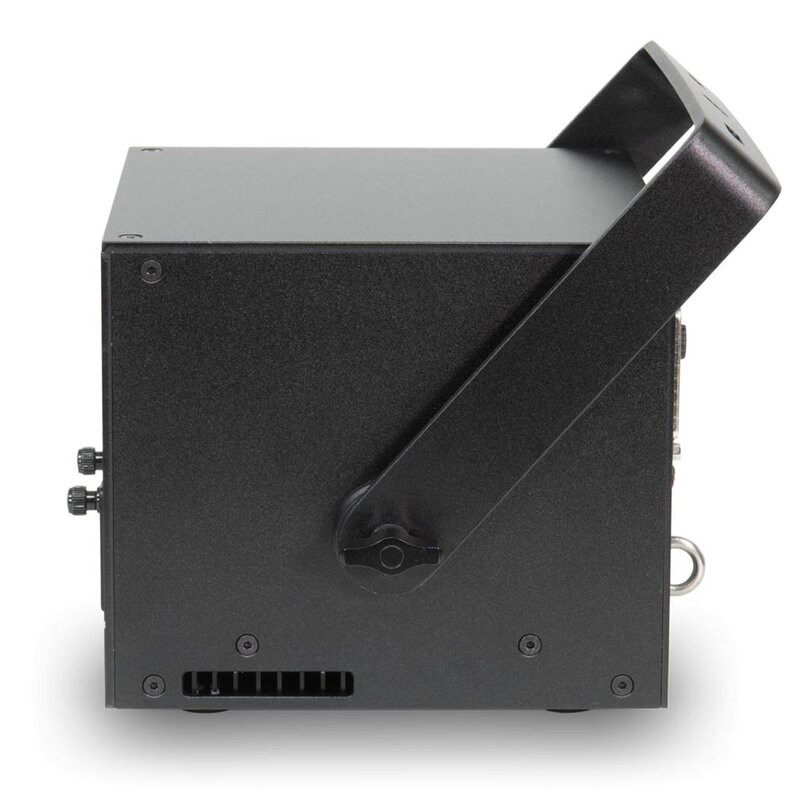

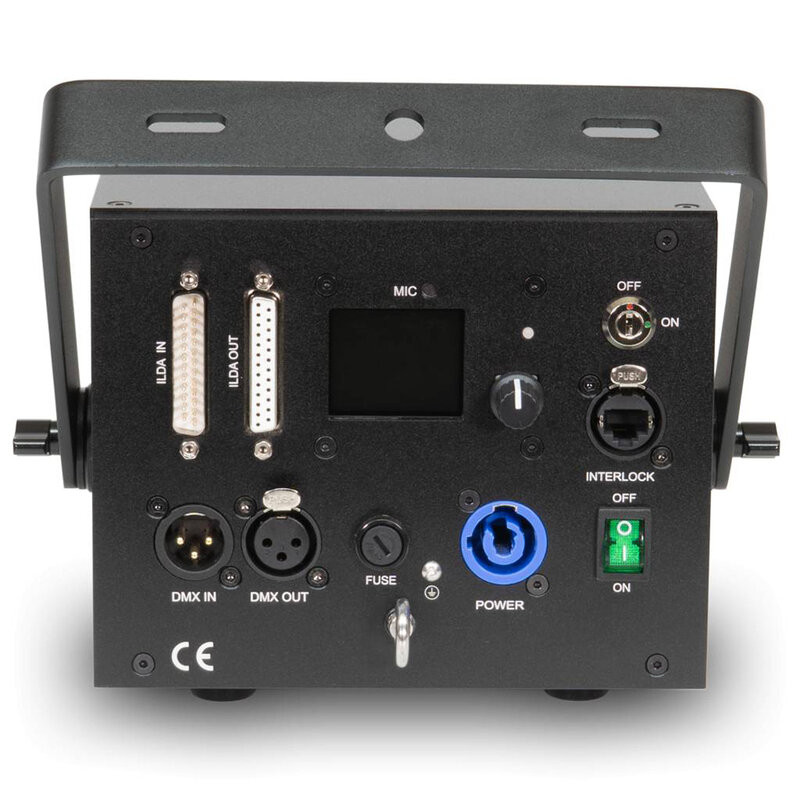

Its compact design, low weight, and mounting bracket make it suitable for both fixed installations on pylons, walls, or ceilings, as well as for mobile use where a versatile, reliable, and easy-to-setup laser is required. The system includes safety features such as an interlock, key switch, and power switch, ensuring operation compliant with laser class 4 standards.

User benefits

• Mobile App control
• User-friendly interface
• Computer control via ILDA interface
• Compact housing and low weight
• Various mounting and positioning options

Areas of use

• Bars
• Small and medium-sized clubs
• Indoor settings
• Mobile DJs and small events

Technical characteristics

• Total power: 1000 mW
• Guaranteed power: 1000 mW
• Power red: 200 mW / 638 nm
• Power green: 300 mW / 520 nm
• Power blue: 600 mW / 450 nm
• Laser source: diode
• Laser Class: 4
• Beam specification: diameter 3 mm, divergence 1.0 mrad
• Scanner: 25 kpps @ 8°
• Max. scan angle: 30°
• Operation modes: auto, DMX, ILDA, S2L, mobile App
• Basic patterns: over 250 (level, tunnel, grid, waves, etc.)
• Accessories: power cable, manual, interlock, key
• Power supply: 85 - 250 V_AC 50/60 Hz
• Power consumption: 20 W
• Dimensions: 17 x 16 x 13.5 cm
• Weight: 2.6 kg
