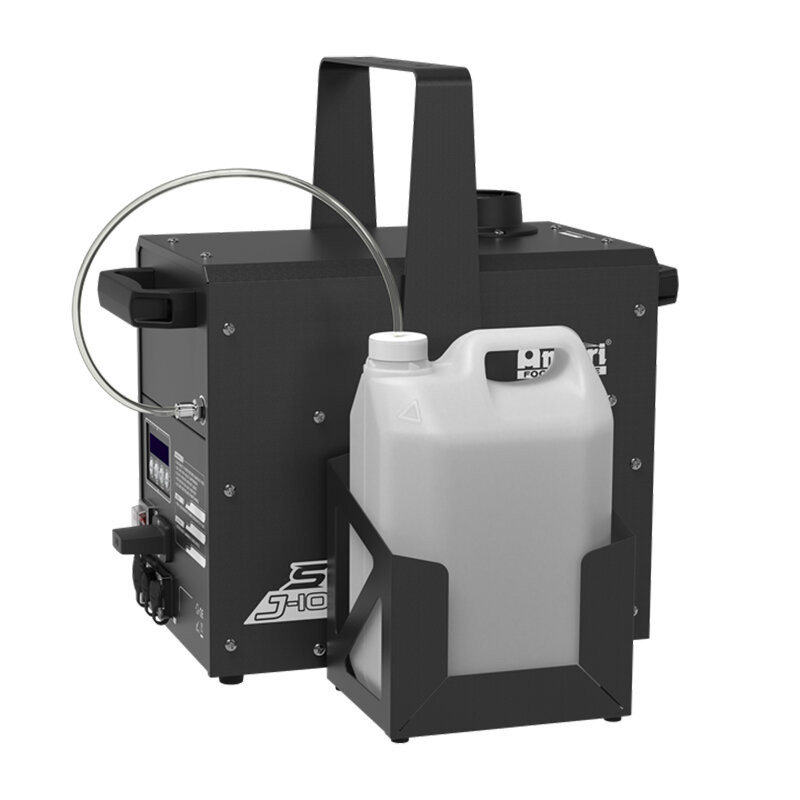

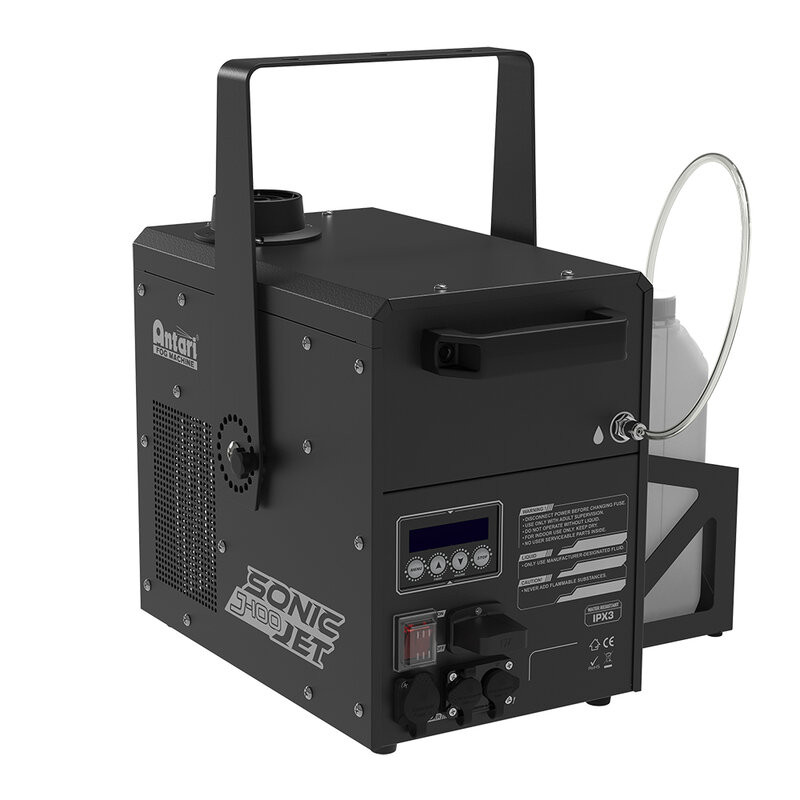

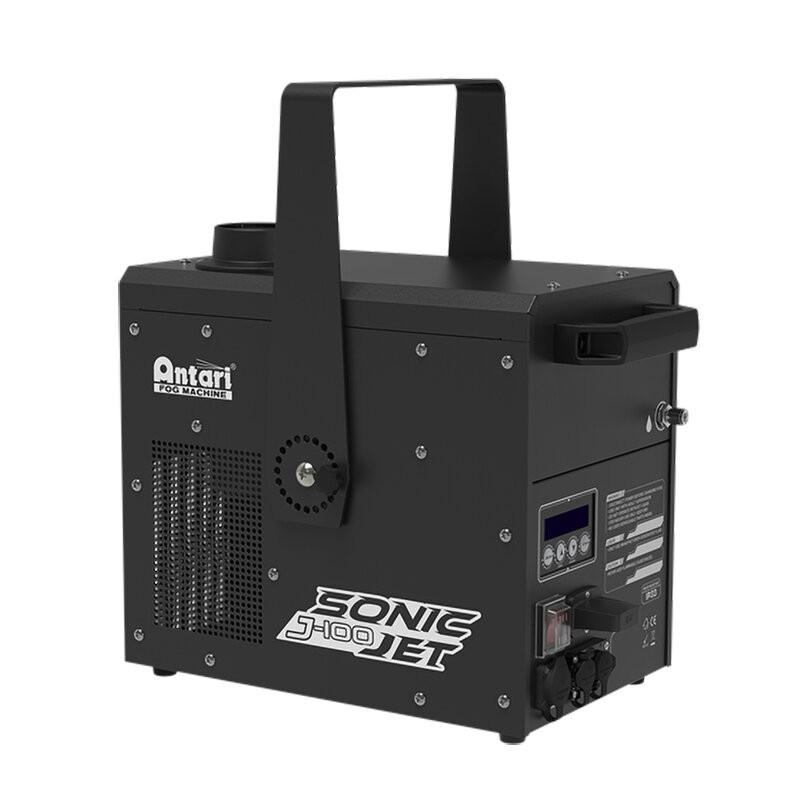

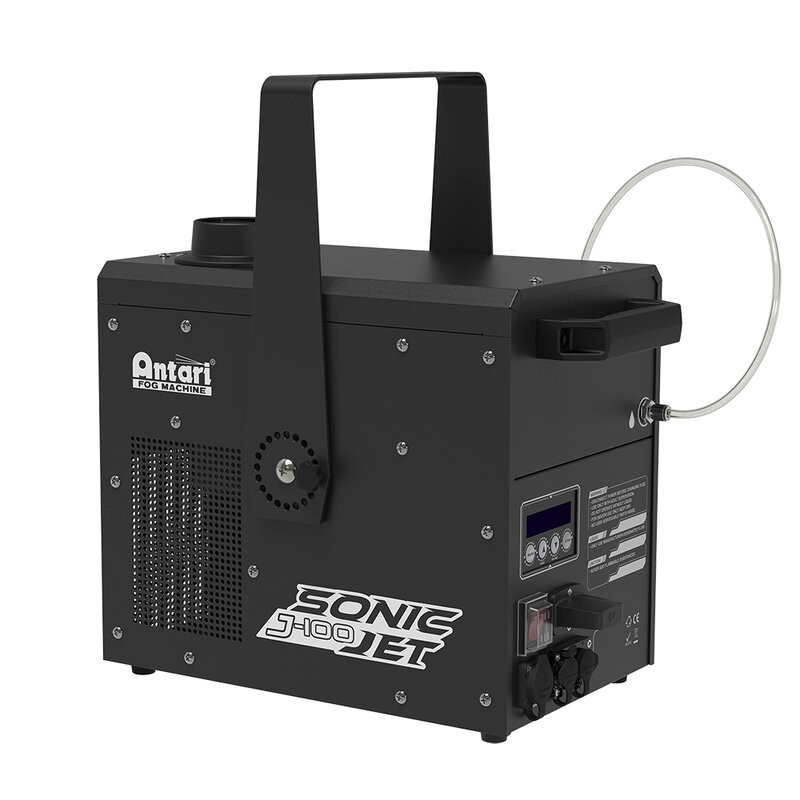

The J-100 Sonic Jet is a next-generation 2400 W jet fog machine designed for high performance and reliability in complex stage environments.
Its IP-53-rated high-speed turbo fan ensures powerful and responsive directional output, while the compact and durable body complies with the IP-33 standard. The 4 L fluid tank allows for a flow rate of up to 180 mL/min at maximum power.
The interface includes SEETRONIC IP65 power and DMX 5-pin XLR connectors, with manual control, timer, 512-channel DMX, and an optional W-DMX wireless module.
User benefits
- Housing designed according to IP-X3 level protection
- IP-53-rated high-speed turbo fan
- Surge protection
- Directional jet-style output for high-intensity stage effects
- Fast and consistent performance
- Optional wireless control module / W-DMX
Areas of use
- Live performances
- Concerts
- Theme parks
- Tours and mobile events
Technical characteristics
| Input voltage |
220 – 240 VAC 50/60 Hz 10 A |
| Rated power |
2400 W |
| Warm-up time |
8.5 min (approx) |
| Fluid consumption |
180 mL/min (at 100% output) |
| Fluid tank capacity |
4 L |
| Housing protection |
IP-33 rated |
| Turbo fan protection |
IP-53 rated high-speed fan |
| Voltage protection |
integrated |
| Fog output |
jet-style directional burst |
| Performance |
fast response and consistent output |
| Control methods |
manual, timer, DMX (512 channels), Wireless W-DMX (optional) |
| Power connector |
SEETRONIC IP65 |
| DMX connector |
SEETRONIC IP65 XLR 5-pin |
| Included accessories |
hanging bracket, bottle holder |
| Optional accessories |
WTR-110 wireless module, ES-W-DMX Wireless DMX |
| Dimensions (L x W x H) |
42.4 x 39 x 44 cm |
| Weight |
18.7 kg |
