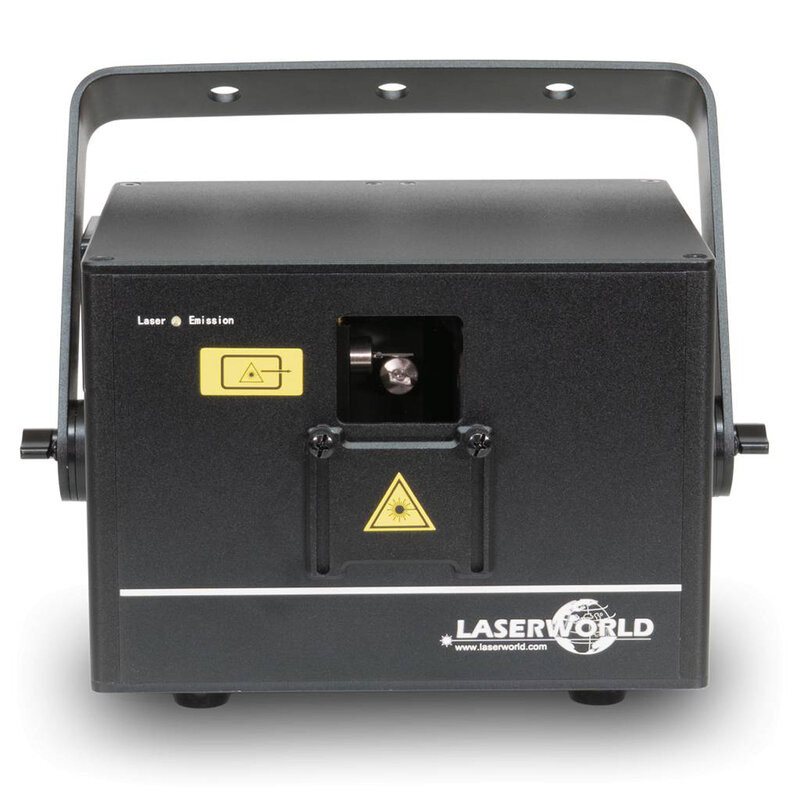

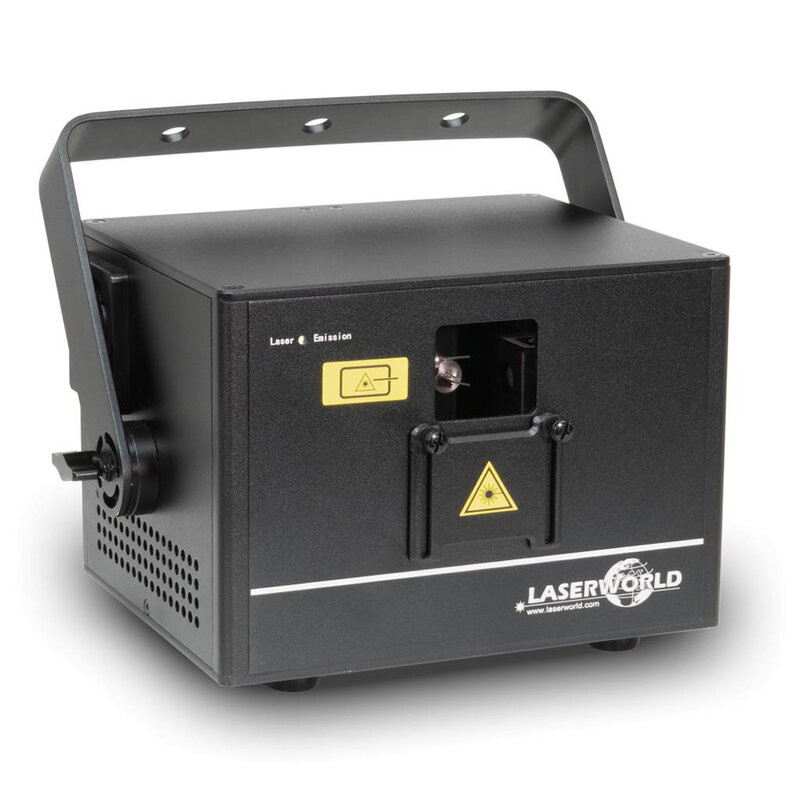

Laserworld Laserworld CUBE 3

The Laserworld CUBE 3 is a 3000 mW RGB diode laser system designed for semi-professional applications and brighter, more complex shows than the CUBE 1.5, thanks to double the power and a wider scan angle.

It features a built-in 3500 mAh battery, allowing it to operate even without a mains power supply, making it ideal for mobile or wireless installations. This battery charges in 4 hours and allows the laser to operate for approximately 2 hours, depending on the content shown.

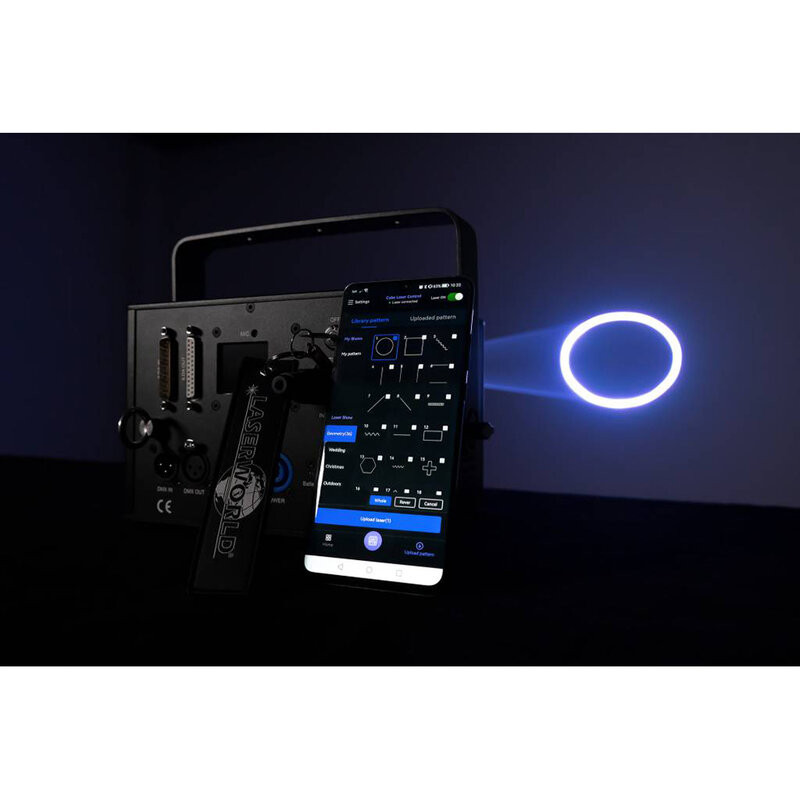

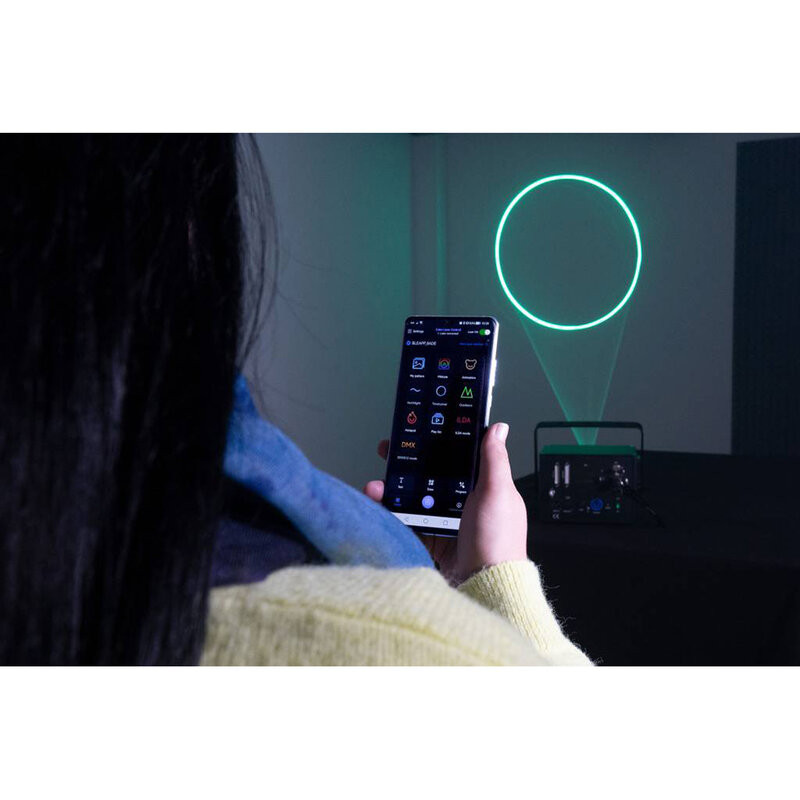

One of its key features is control via a dedicated mobile App, developed specifically by Laserworld for the CUBE series. This app allows you to select, create, and manage laser shows directly from your smartphone or tablet with an intuitive interface. The device can be controlled via DMX and used in standalone, sound-to-light, Master/Slave mode with other CUBE 3 units, or via an ILDA interface for computer control, including the ability to project logos, text, and custom graphics.

Its total power of 3000 mW, combined with analog modulation and 900 mW red, 950 mW green, and 1700 mW blue laser sources, allows for brilliant colors and intense beams, with a 5.5 mm aperture diameter and a divergence of 1.1 mrad. The system integrates a graphic scanner up to 30 kpps @ 8°, ideal for effects such as tunnels, waves, grids, levels, and animations, with over 250 preset patterns that can be managed automatically, in music mode, or via DMX.

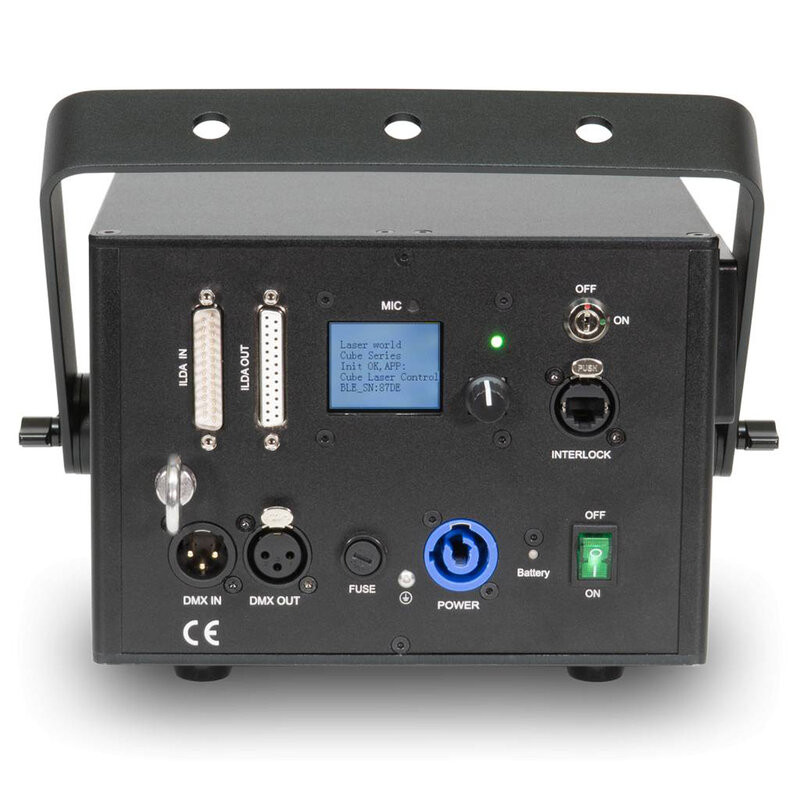

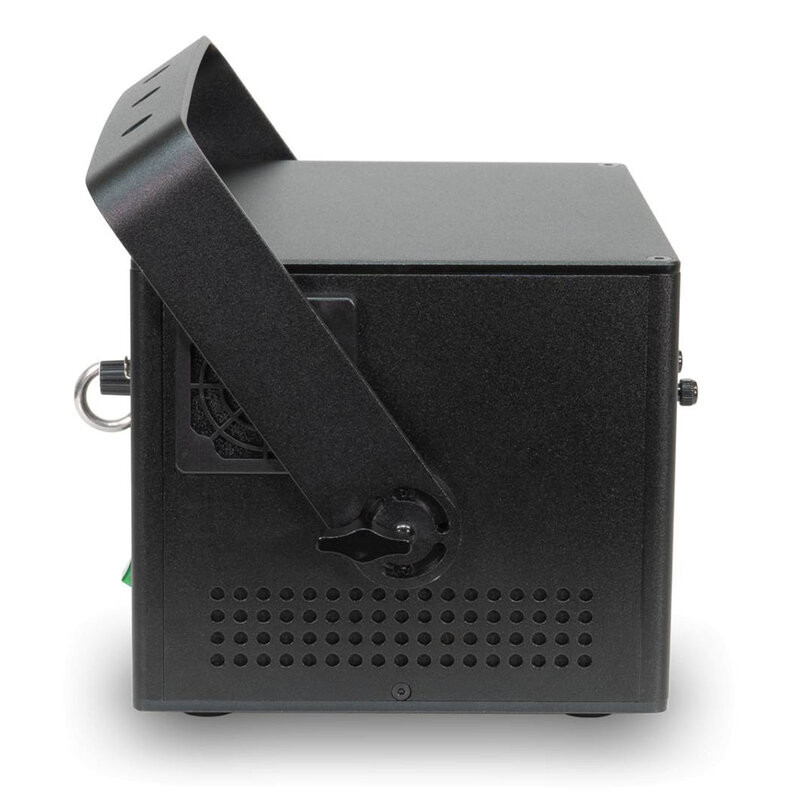

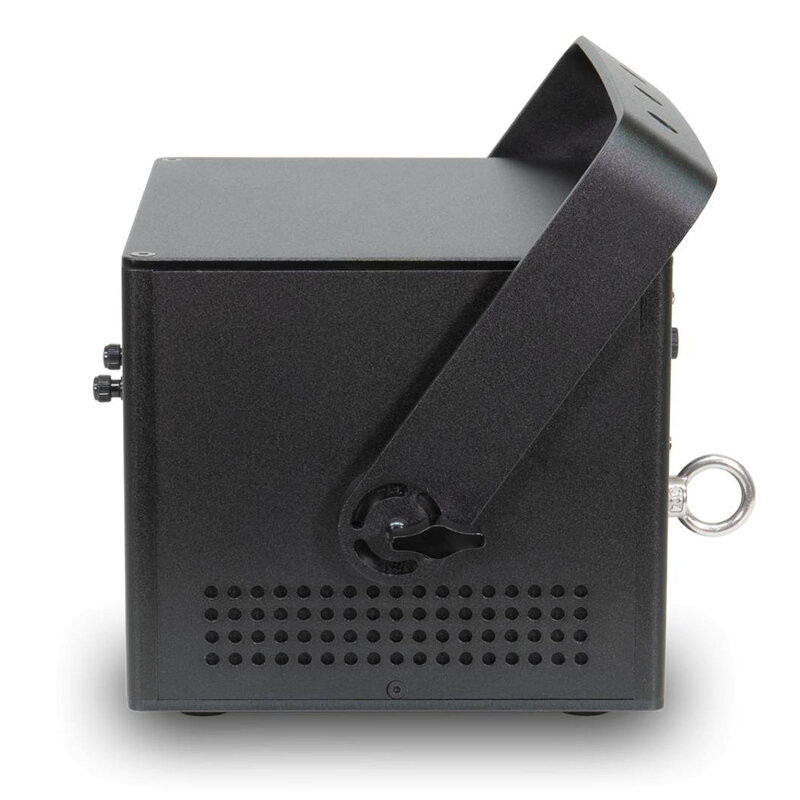

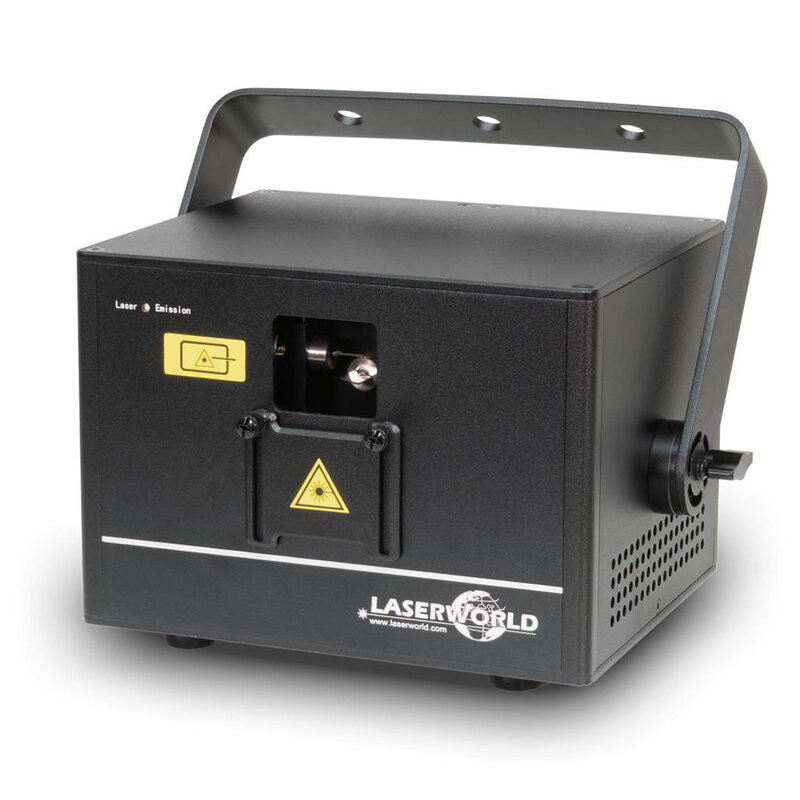

Its compact design, low weight, and mounting bracket make it suitable for both fixed installations on trusses, walls, or ceilings, as well as mobile use where a versatile, reliable, and easy-to-configure laser is required. The system includes safety features such as an interlock, key switch, and power switch, ensuring operation complies with laser class 4 standards.

User benefits

• Controllable via mobile App
• Built-in battery for flexible, wireless operation
• User-friendly interface
• 50° scanning angle, ideal for more complex animations
• Computer controllable via ILDA interface
• Compact housing and low weight
• Various mounting and positioning options

Areas of use

• Bars
• Small and medium-sized clubs
• Discos
• Indoor settings
• Mobile DJs
• Wide variety of venues for parties and similar events

Technical characteristics

• Total power: 3000 mW
• Guaranteed power: 3000 mW
• Power red: 900 mW / 638 nm
• Power green: 950 mW / 520 nm
• Power blue: 1700 mW / 450 nm
• Laser source: diode
• Laser Class: 4
• Beam specification: diameter 5.5 mm, divergence 1.1 mrad
• Scanner: 30 kpps @ 8°
• Max. scan angle: 50°
• Operation modes: auto, DMX, ILDA, S2L, mobile App
• Basic patterns: over 250 (level, tunnel, grid, waves, etc.)
• Accessories: power cable, manual, interlock, key
• Power supply: 85 - 250 V_AC 50/60 Hz
• Power consumption: 50 W
• Dimensions: 20 x 16.5 x 14.1 cm
• Weight: 3.7 kg
