SKU: uFlamer Max

mpn: uFlamer Max

Sparkular

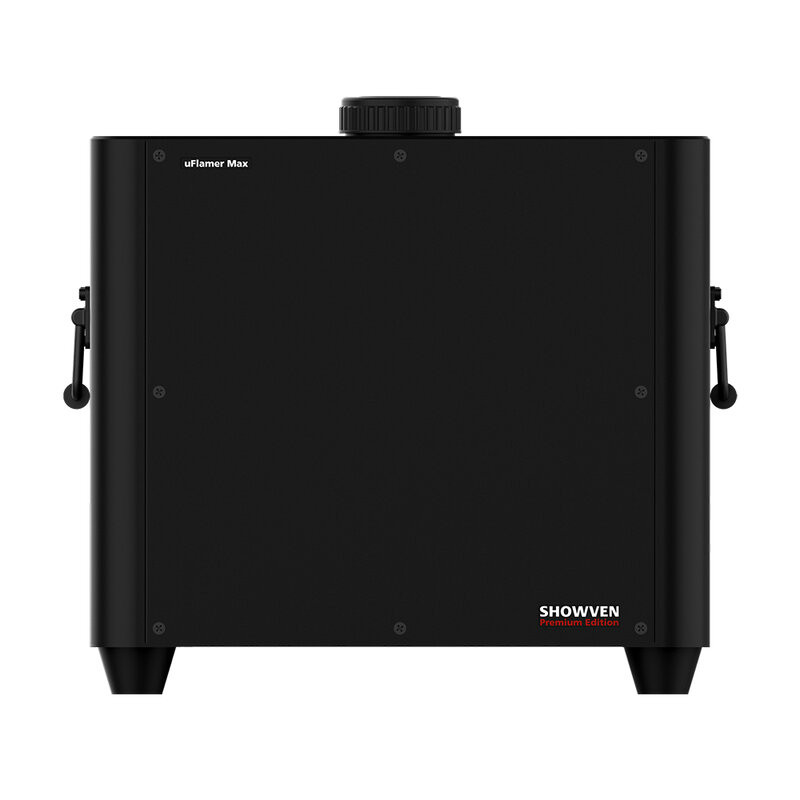

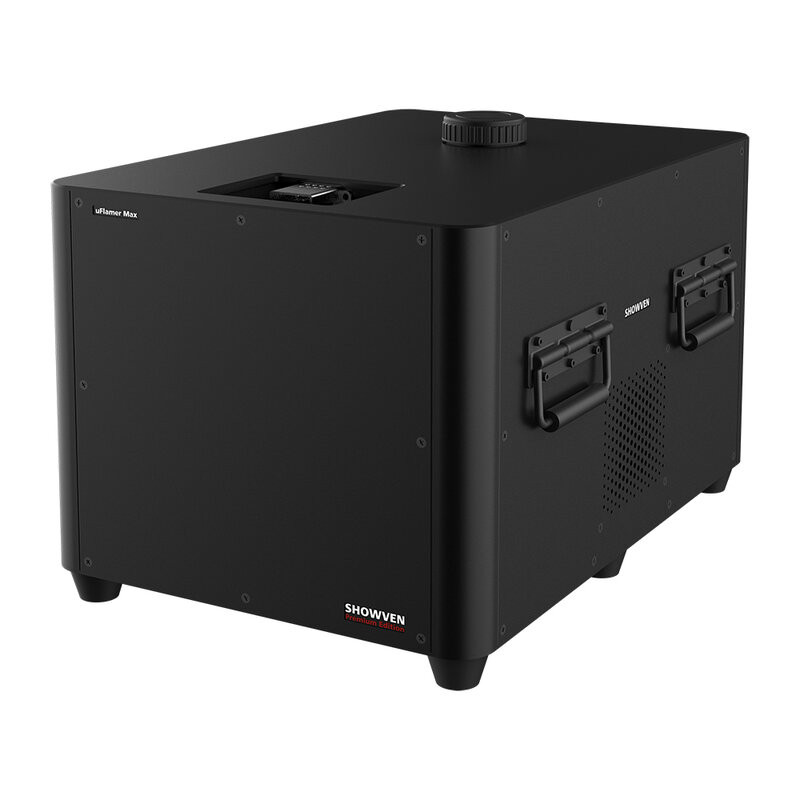

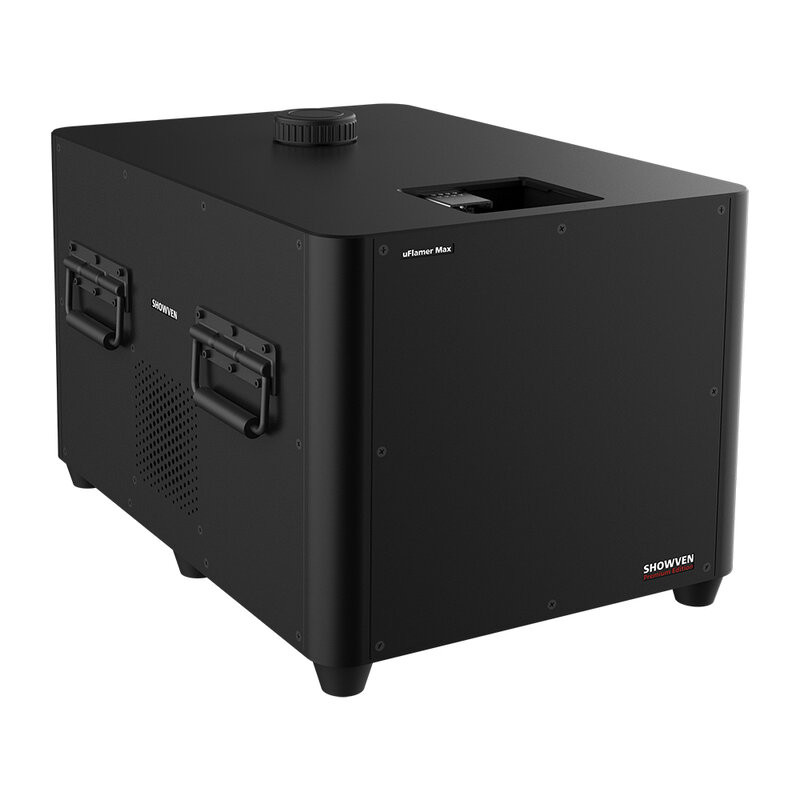

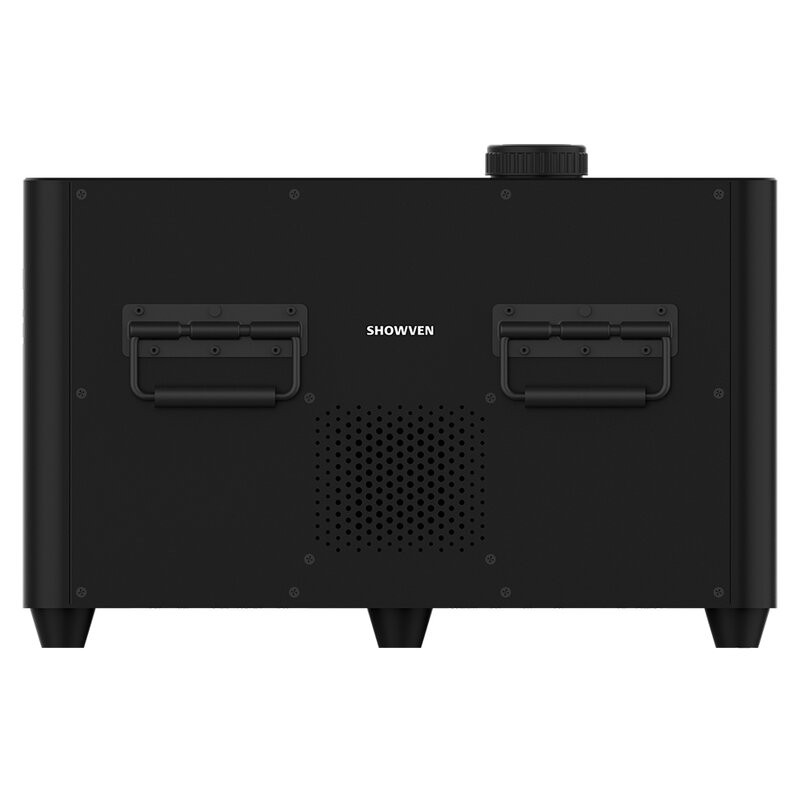

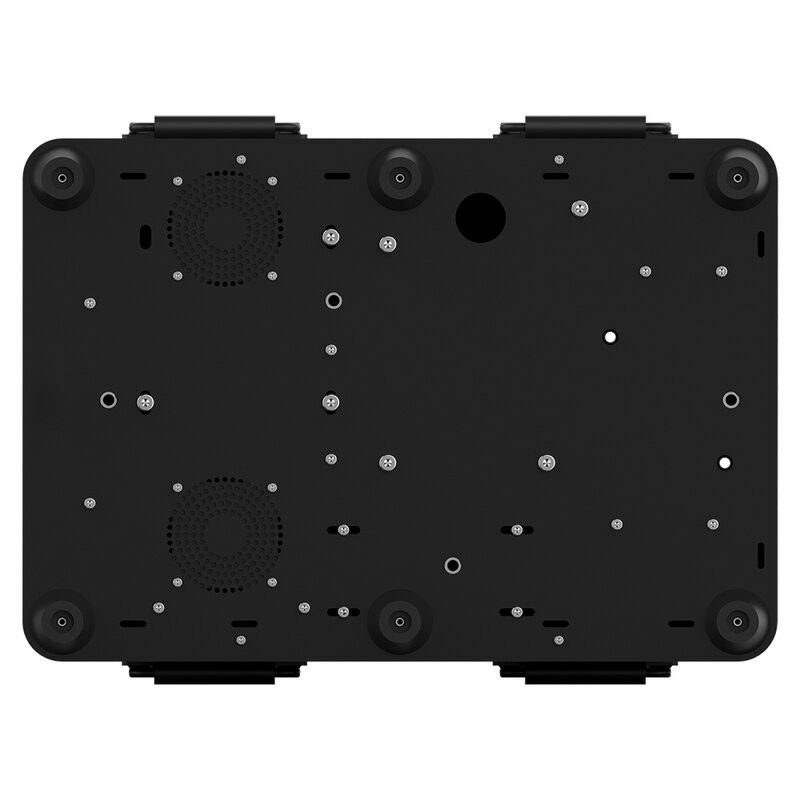

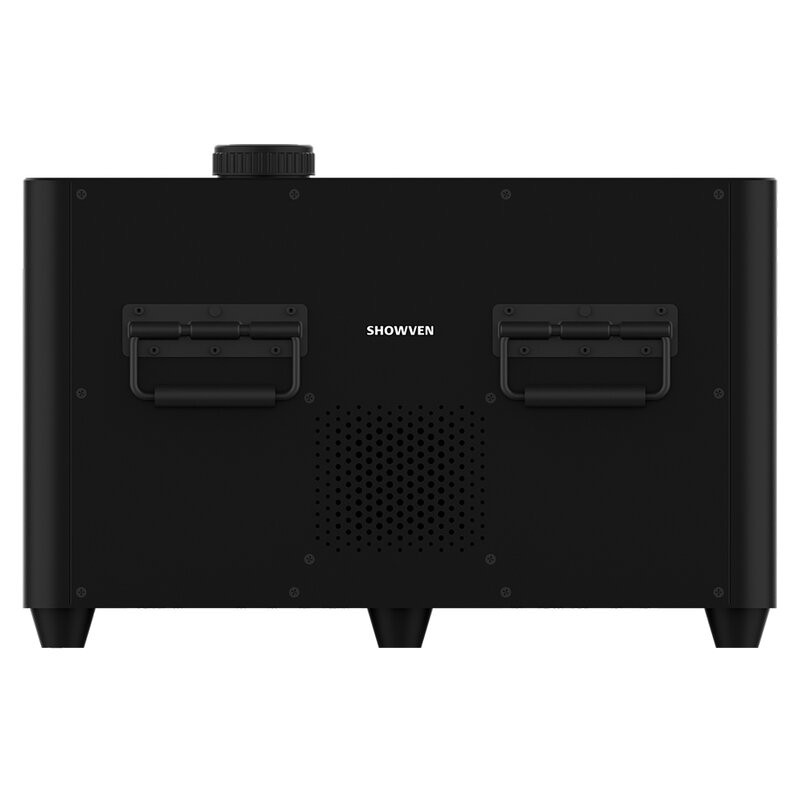

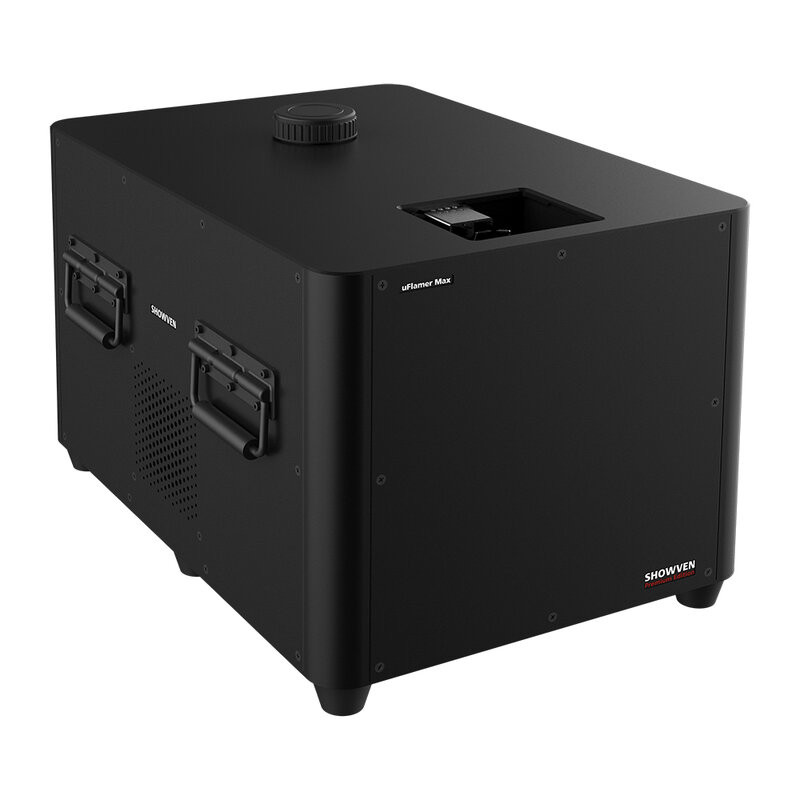

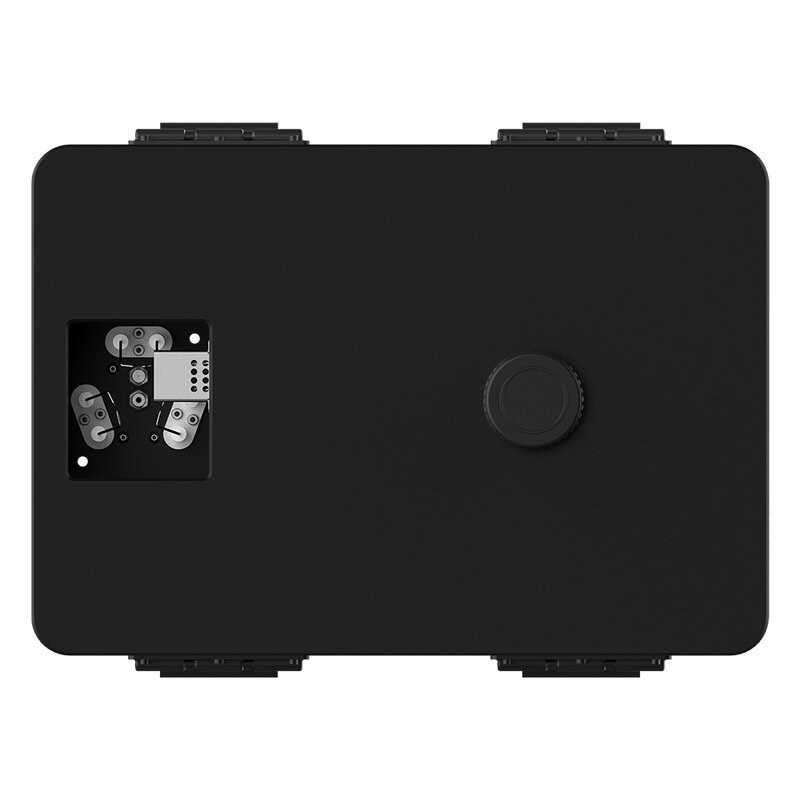

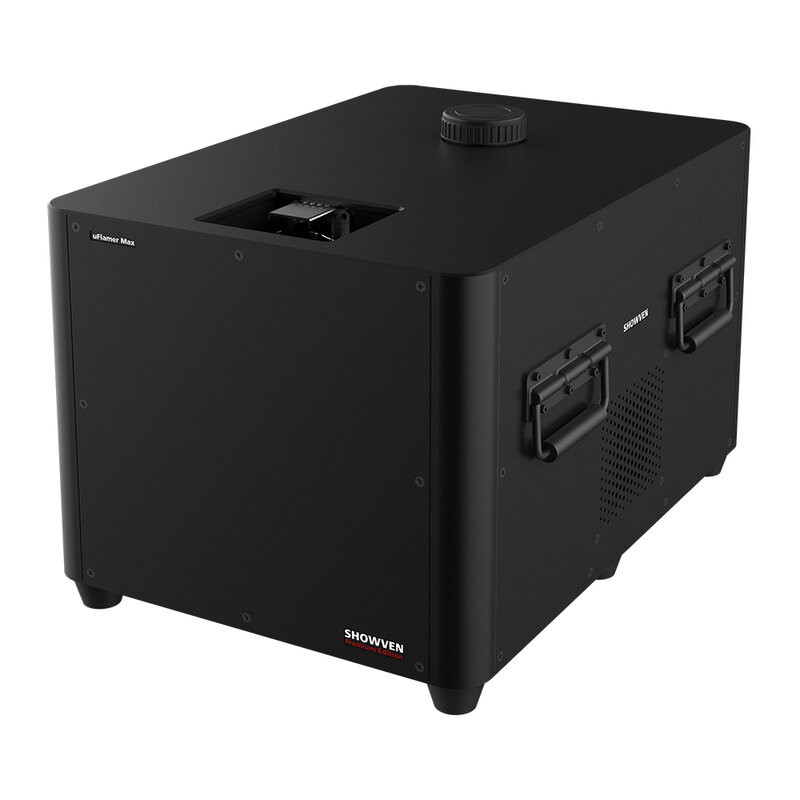

Sparkular uFlamer Max

Standalone liquid flamer, flames upto to 20 m, 2.5 kW, built-in pumping system and fuel tank, DMX
star_border star_border star_border star_border star_border
(0)

6,611.00 €

-20% 8,212.50 €

(VAT excluded)
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
6,611.00 €
Condition

Not available.

delivery is not available for this product.

Free shipping for orders over € 199 (within Europe)

Variants of this product

Explo - GPL-12V

1,260.00 €

Professional gas projector for stage effects, controlled by an electronic ignition with internal 12 V battery
Explo - GP011

3,436.50 €

Liquid Pump Station (LPS) for the special version of the GX2 (liquid fuel)
Explo - X2-HEAD

3,638.50 €

X2 Wave Flamer DMX, only head (it requires an external pumping system)
Explo - X2 Wave

6,040.50 €

Fluid based flame machine that uses a liquid driven flame-system with moving head
Sparkular - uFlamer Volcano

15,070.00 €

High end liquid flamer system with five nozzles
Sparkular - Circle Flamer X-F1800

4,087.50 €

Fluid driven flamer system with 210° swiveling angles

Product details

The first stand-alone flame machine that can produce flames up to 20 m high! The pump system, integrated fuel tank and flame monitoring function make it unique.

In addition, the auxiliary ignition system and triple high-voltage igniters ensure perfect operation.

Main features

  • The first stand-alone flame machine with flames up to 20 m high
  • Built-in pump and fuel tank, Plug & Play system
  • Equipped with quick coupling for external fuel input
  • Triple high-voltage igniters
  • Multiple safety configurations: emergency stop connector with cascade power cut, ARM indicator light, safety switch, etc.
  • Flame monitoring function
  • Metal tube structure
  • Compact size

Technical characteristics

  • Effect direction: vertical
  • Max. flame height (no wind): nozzle XXH: 20 m
  • Fuels: Isopar G, H, L, M; Isopropanol
  • Housing material: 304 stainless steel
  • Fuel tank capacity: 17 L
  • Fuel consumption rate: appr. 1 L/s

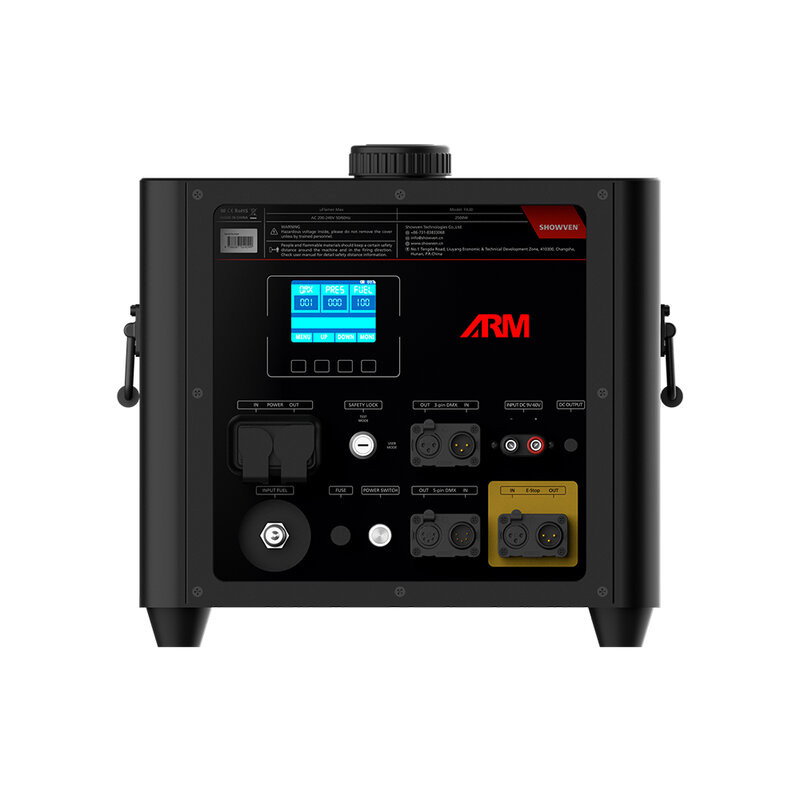

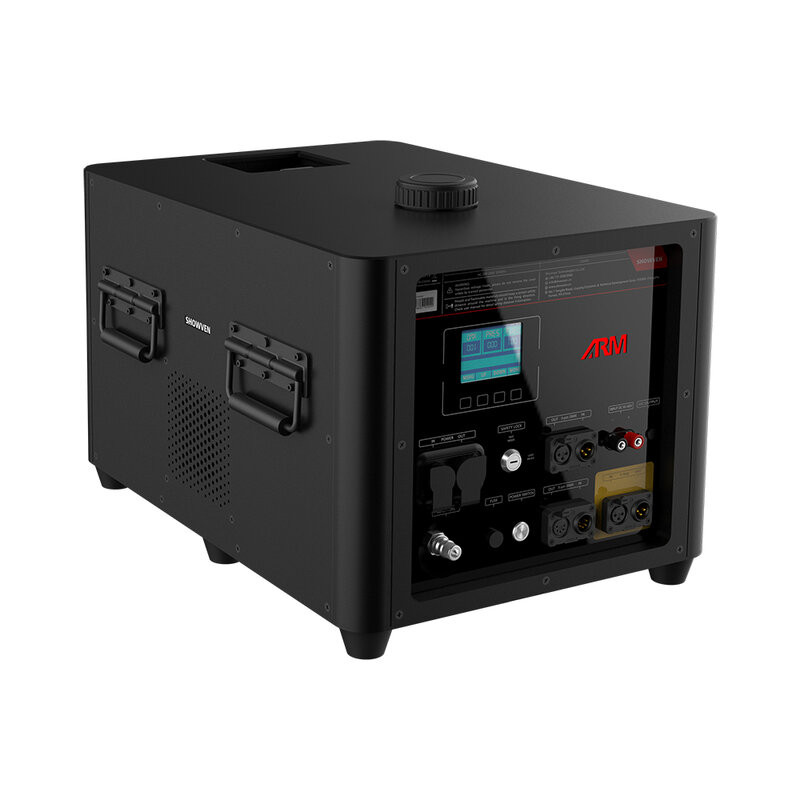

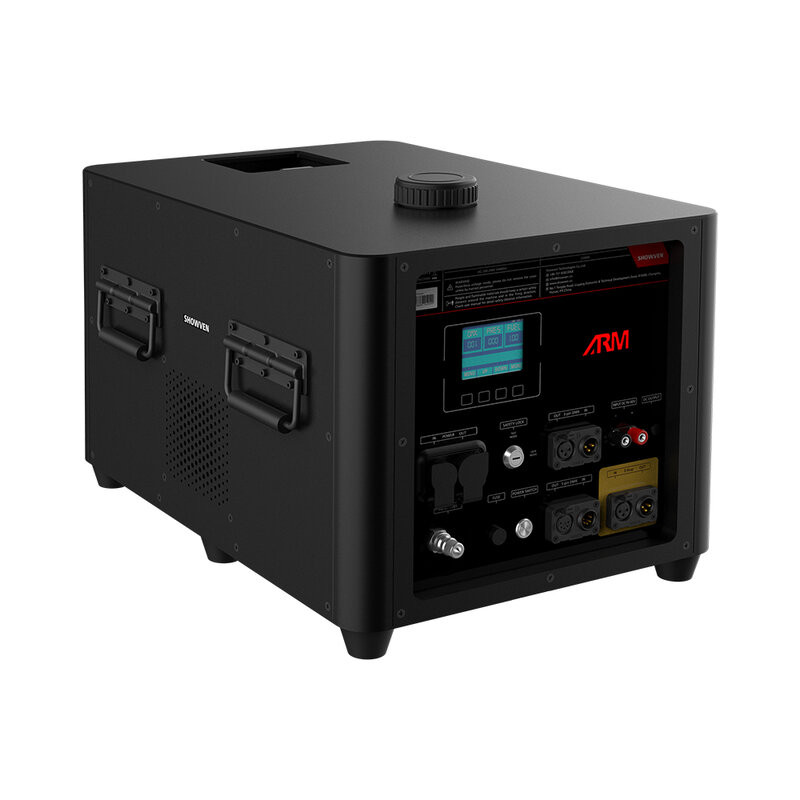

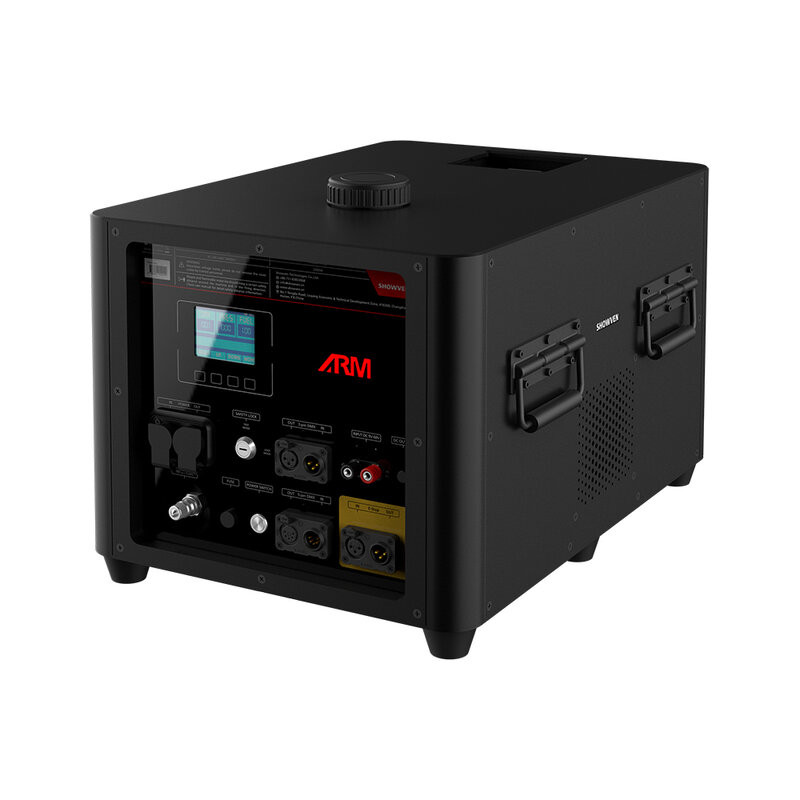

  • Interface: Neutrik powerCON TRUE1 IN/OUT; waterproof 3-pin and 5-pin XLR IN/OUT
  • Control: DMX, 9 - 60 V pyro signal
  • E-stop: yes
  • ARM indicator light: yes
  • Liquid level sensor: yes
  • Ignition: 3 x high voltage electron ignition
  • Firing duration: 0.2 - 0.5 s
  • Use in rain: yes
  • Input and power: 200 - 240 VAC 50/60 Hz, 2.5 kW
  • Dimension: 570 x 425 x 380 mm
    Weight: 60 kg
